Product Description

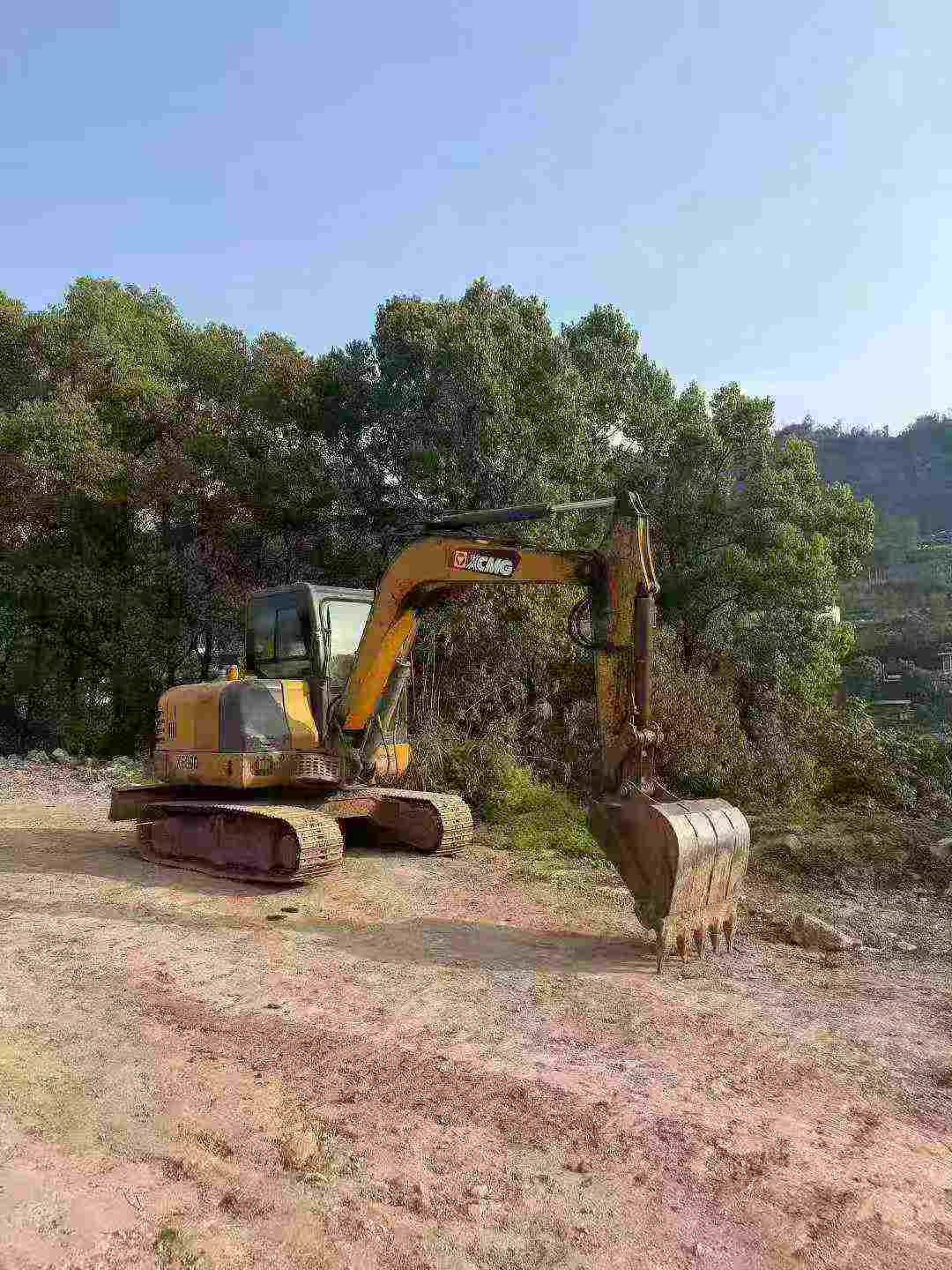

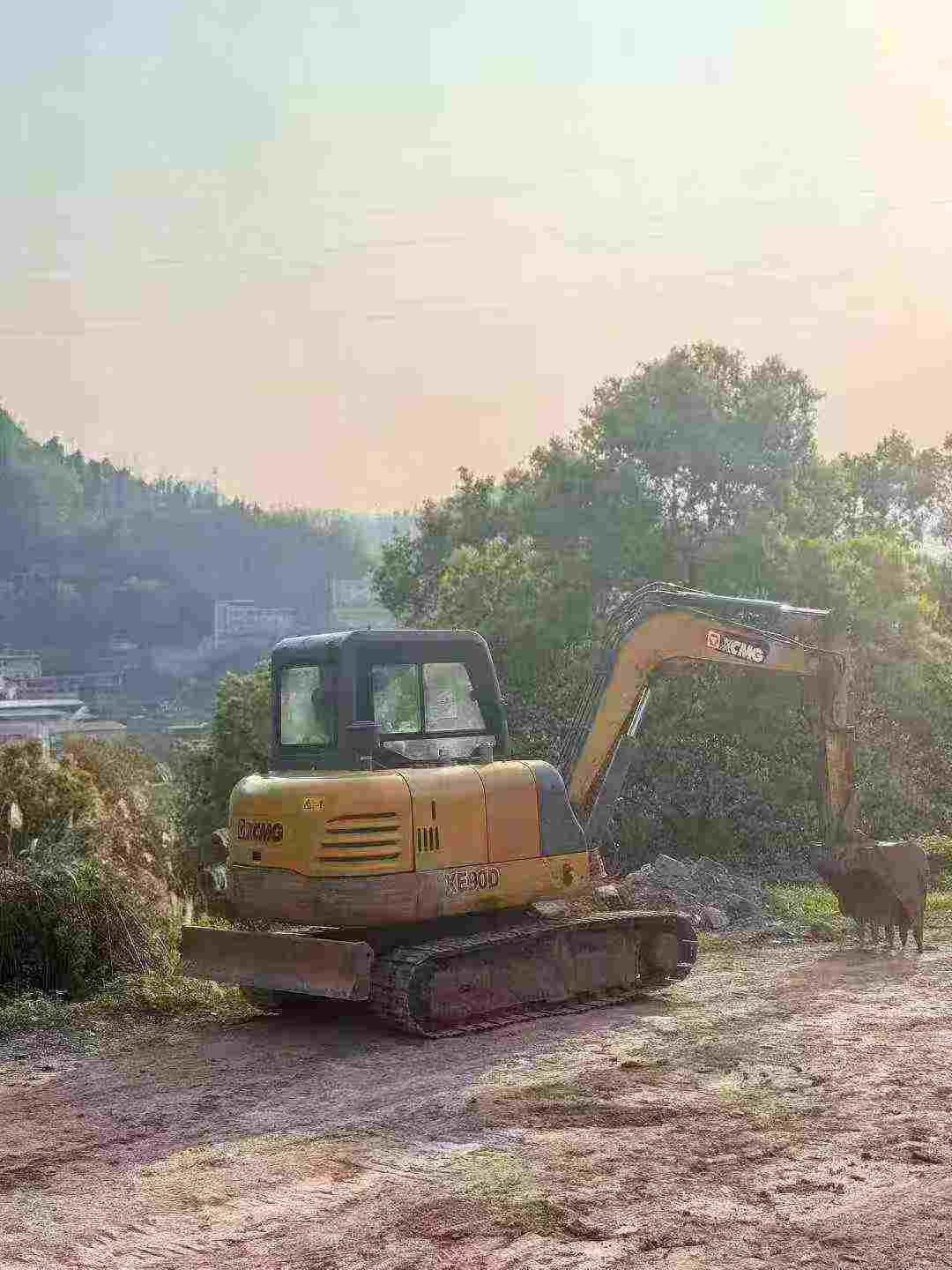

Built for precision work in confined spaces, this 2020 XCMG XE60 mini excavator delivers 6-ton class performance with operator-centered engineering. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, it combines reliable power with fuel efficiency through its 110-liter tank and water-cooled 4-cylinder design. The compact 1880mm transport width and 2450mm minimum turning radius enable maneuvering in tight urban jobsites while maintaining 35° climbing ability on challenging terrain.
Operators benefit from responsive Rexroth main pump hydraulics flowing at 2×60.5+40.3+9.9 l/min, ensuring smooth simultaneous functions. The cabin provides commanding visibility across a 6130mm maximum digging radius and 3830mm digging depth. Stability comes from the 1985mm track ground length and optimized 32.1 kPa ground pressure, reducing surface damage while maintaining secure footing. Digging forces reach 42.5 kN (bucket) and 28.5 kN (arm), tackling dense materials confidently.
- Currently located in Luzhou, Sichuan, China
- Standard hydraulic crushing pipeline equipped
- Dual travel speeds: 4.2/2.2 km/h for versatility
- Factory-direct from Xuzhou manufacturing
| Specifications | Value |
|---|---|
| No. | 1031202 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

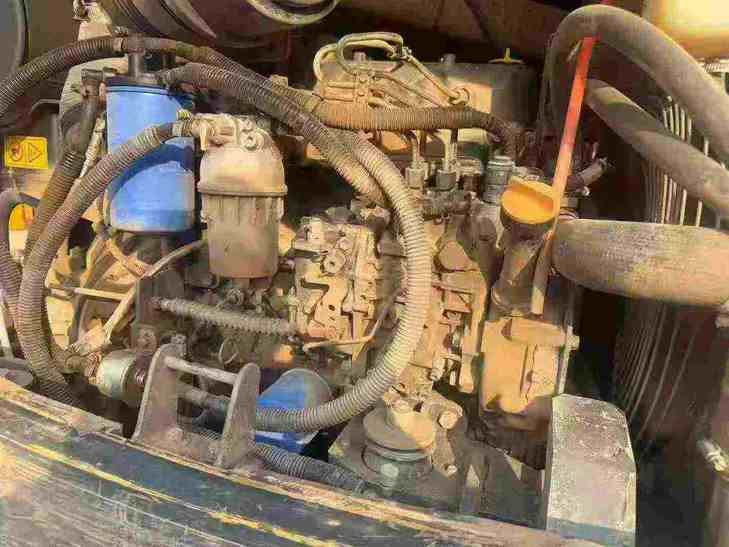

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
