2020 XCMG XE60

1/5
Buy XCMG XE60 Used Excavator / 1

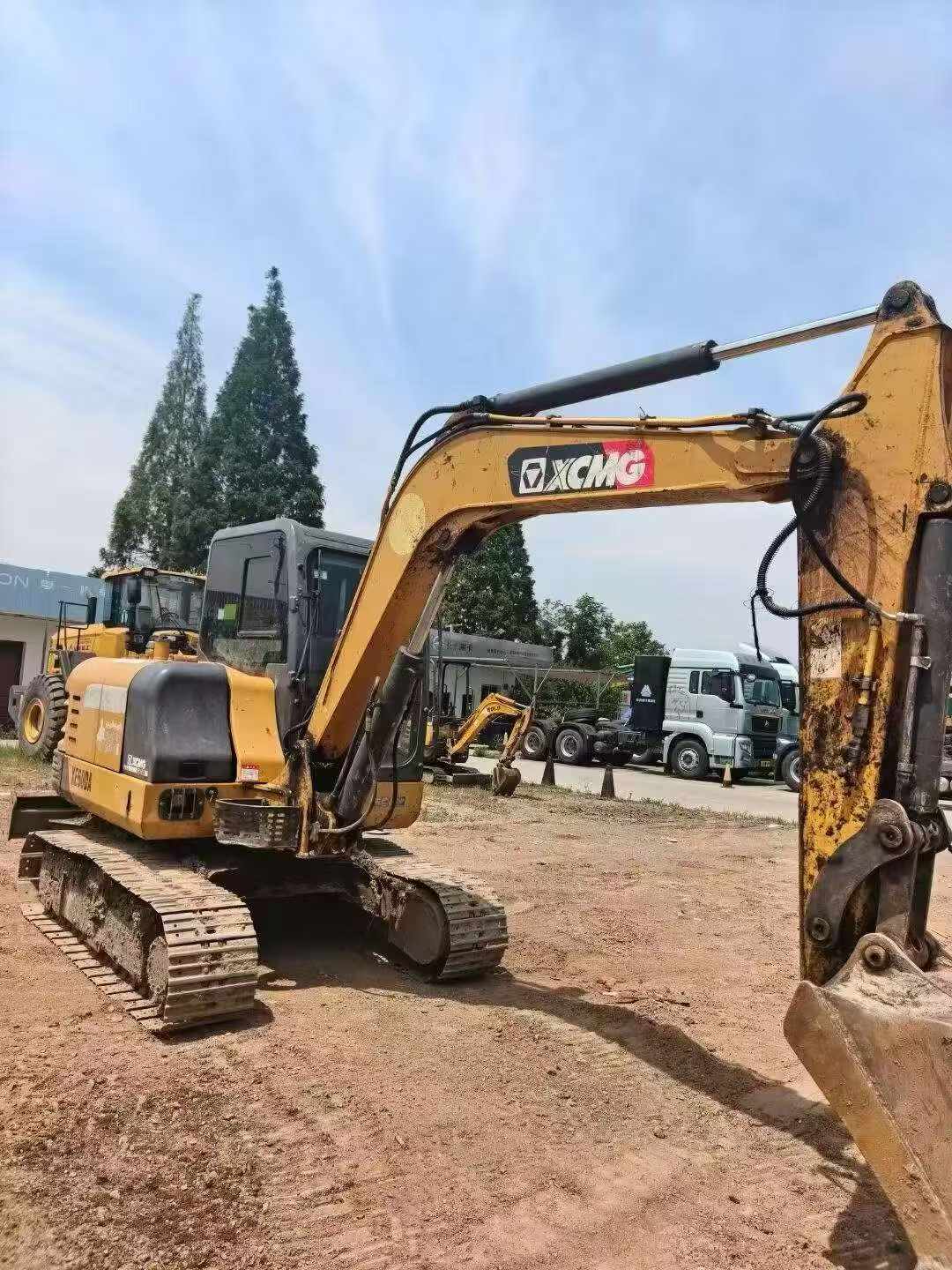

Buy XCMG XE60 Used Excavator / 2

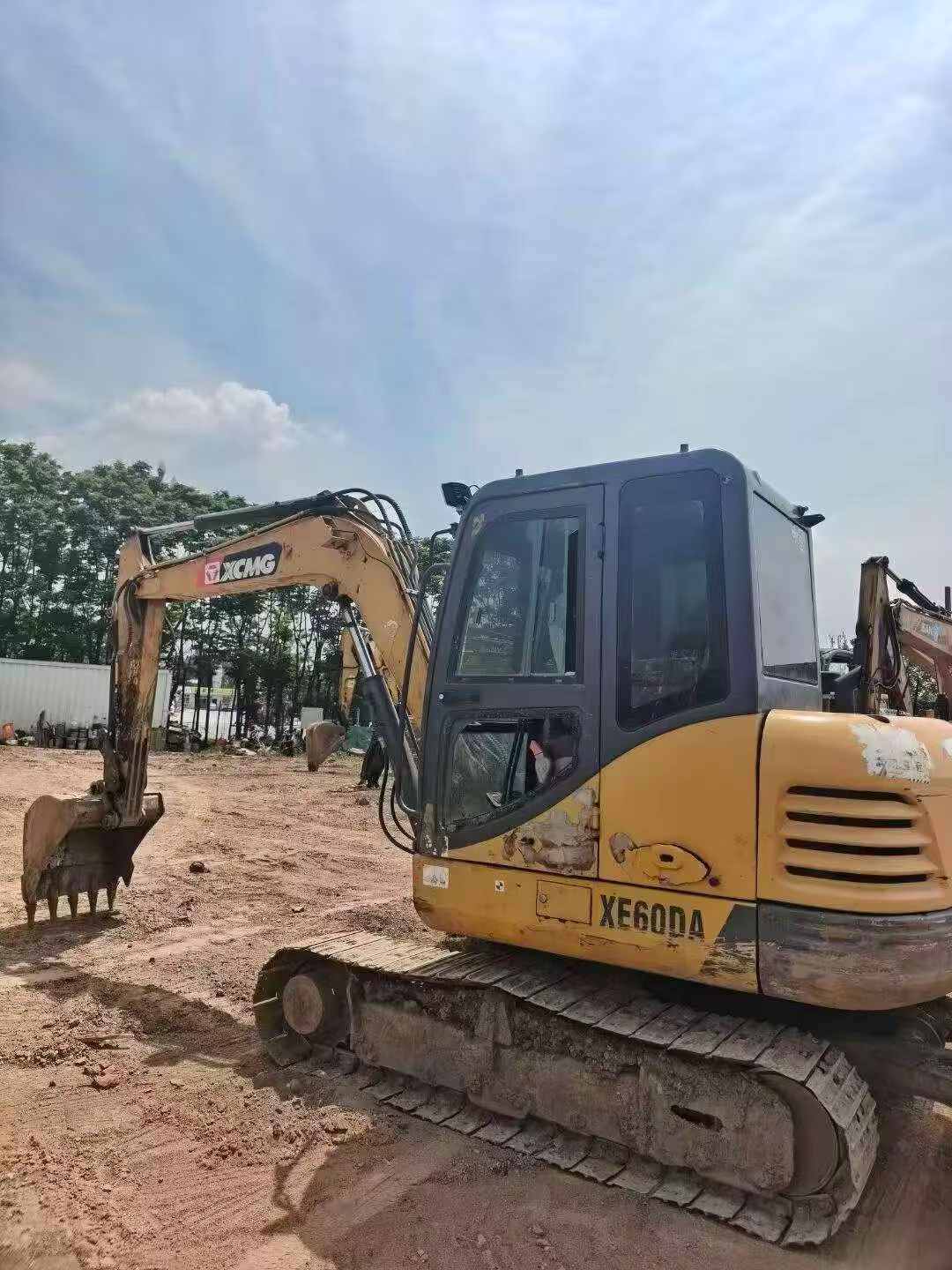

Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5

Product Description

This 2020 XCMG XE60 mini excavator represents excellent value in the used compact equipment market. Currently located in Sichuan, China, this 6-ton class machine offers the reliability and performance XCMG is known for in industrial applications. The XE60 is designed for versatility in construction, landscaping, and utility projects where space is limited but productivity cannot be compromised.

Key features of the XCMG XE60 include:

  • Compact 6-ton operating weight for urban and confined jobsites
  • Efficient hydraulic system for optimal fuel economy
  • Durable undercarriage designed for extended service life
  • Operator-friendly cab with intuitive controls
  • Low maintenance requirements reducing total cost of ownership
  • Competitive pricing for budget-conscious operations

This unit presents a cost-effective solution for contractors seeking dependable excavation equipment with minimal initial investment. Contact us for detailed inspection reports and shipping arrangements.

SpecificationsValue
No.1088604
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
