Product Description
Built for precision work in confined spaces, this 2021 XCMG XE60 mini excavator delivers 6-ton performance with exceptional maneuverability. Powered by a reliable Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this machine tackles excavation, trenching, and utility installation with proven durability. Maximum digging depth reaches 3,830mm while the 6,130mm digging radius provides excellent working range for foundation work, landscaping, and site preparation.
- Bucket digging force: 42.5 kN for tough soil conditions
- Compact dimensions: 5,850mm length, 1,880mm width for tight job sites
- Dual-speed travel: 4.2/2.2 km/h for efficient repositioning
- Rexroth main pump system: 2×60.5 + 40.3 + 9.9 l/min total flow
- Standard hydraulic breaker circuit ready for demolition attachments
- 35° climbing ability handles sloped terrain confidently
- Water-cooled 4-cylinder engine: 3.054L displacement for consistent output
Currently located in Ningbo, Zhejiang, this XE60 arrives job-ready with 0.09-0.23m³ bucket capacity options. Hydraulic and fuel systems are serviced, pilot controls calibrated to 2.9 MPa for responsive operation. Contact Fair Trade Machinery for detaile
| Specifications | Value |
|---|---|
| No. | 1023514 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

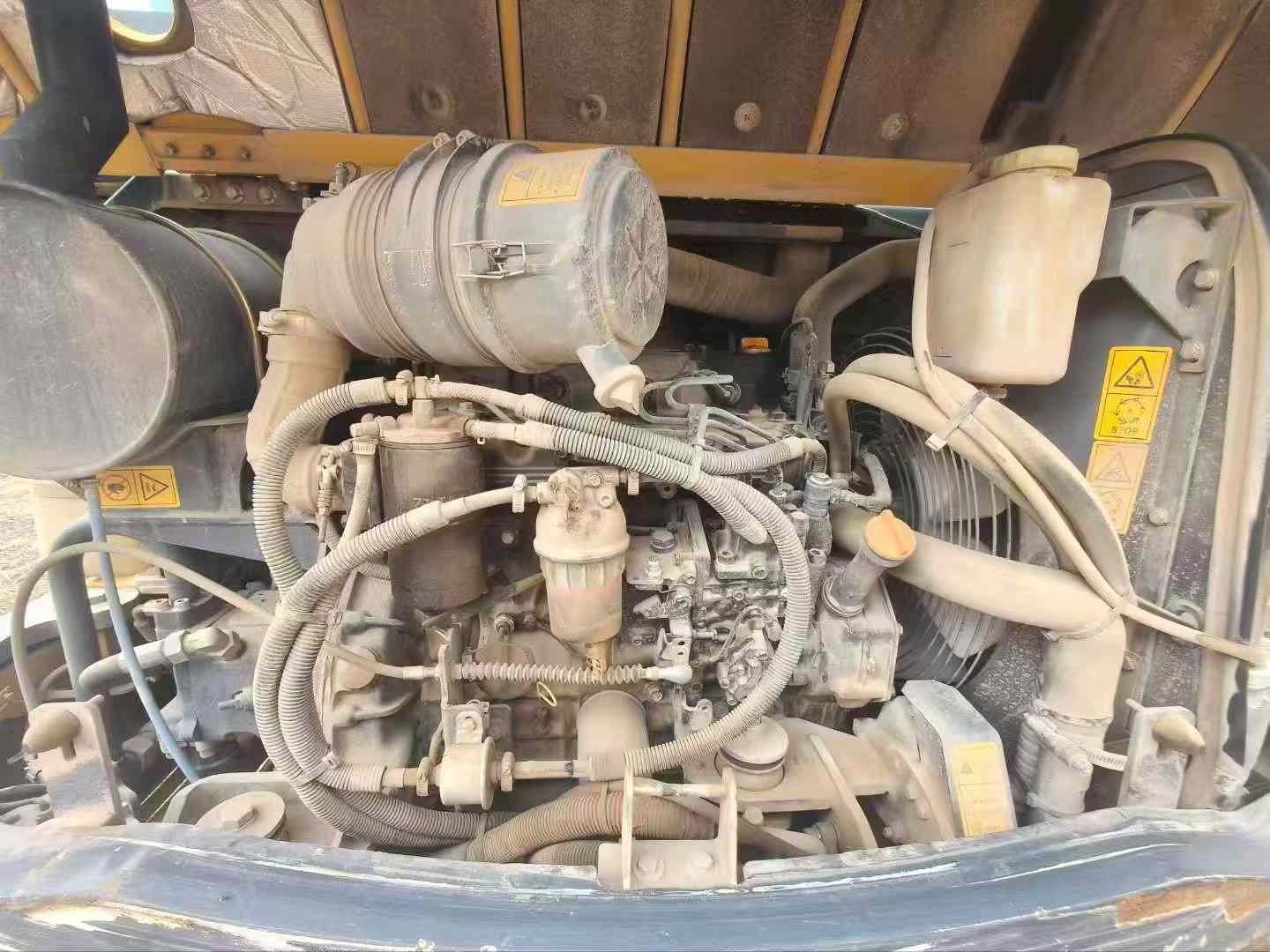

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
