Product Description

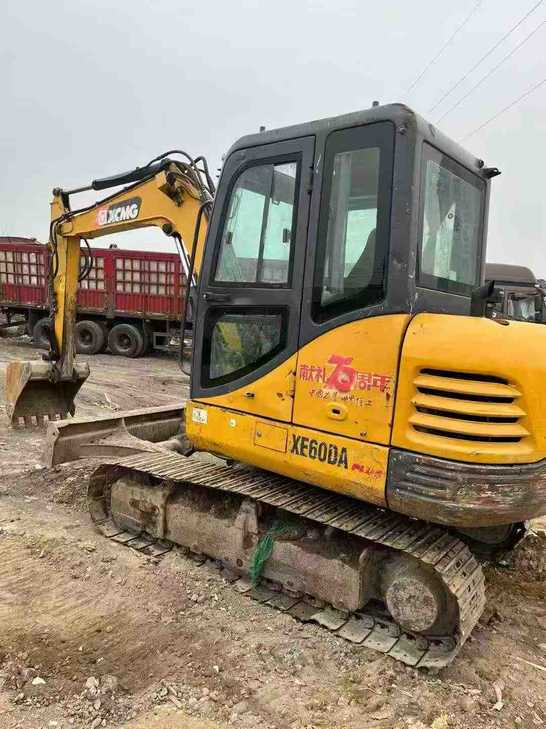

Built in 2021, this XCMG XE60 mini excavator delivers proven performance with the backing of China's largest construction machinery manufacturer. Powered by a reliable Yanmar 4TNV94L engine producing 39.8kW, this 6-ton workhorse combines a maximum digging depth of 3,830mm with a generous digging radius of 6,130mm. The Rexroth main pump system ensures hydraulic precision across all operations, while the machine's 5,960kg working weight provides exceptional stability without sacrificing maneuverability on confined job sites.
XCMG's global dealer network guarantees parts availability and consistent resale values—critical factors when investing in used equipment. This Zhejiang-based unit features factory-standard hydraulic crushing circuits, dual-speed travel capabilities (4.2/2.2 km/h), and impressive digging forces of 42.5kN (bucket) and 28.5kN (arm). With 110L fuel capacity and water-cooled efficiency, expect full-shift productivity. XCMG equipment maintains strong secondary market demand due to manufacturer support and proven durability across diverse applications.
- Year: 2021 | Operating Weight: 5,960kg
- Engine: Yanmar 4TNV94L, 39.8kW @ 2,200rpm
- Max Digging Depth: 3,830mm | Reach: 6,130mm
| Specifications | Value |
|---|---|
| No. | 1032634 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
