2021 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1

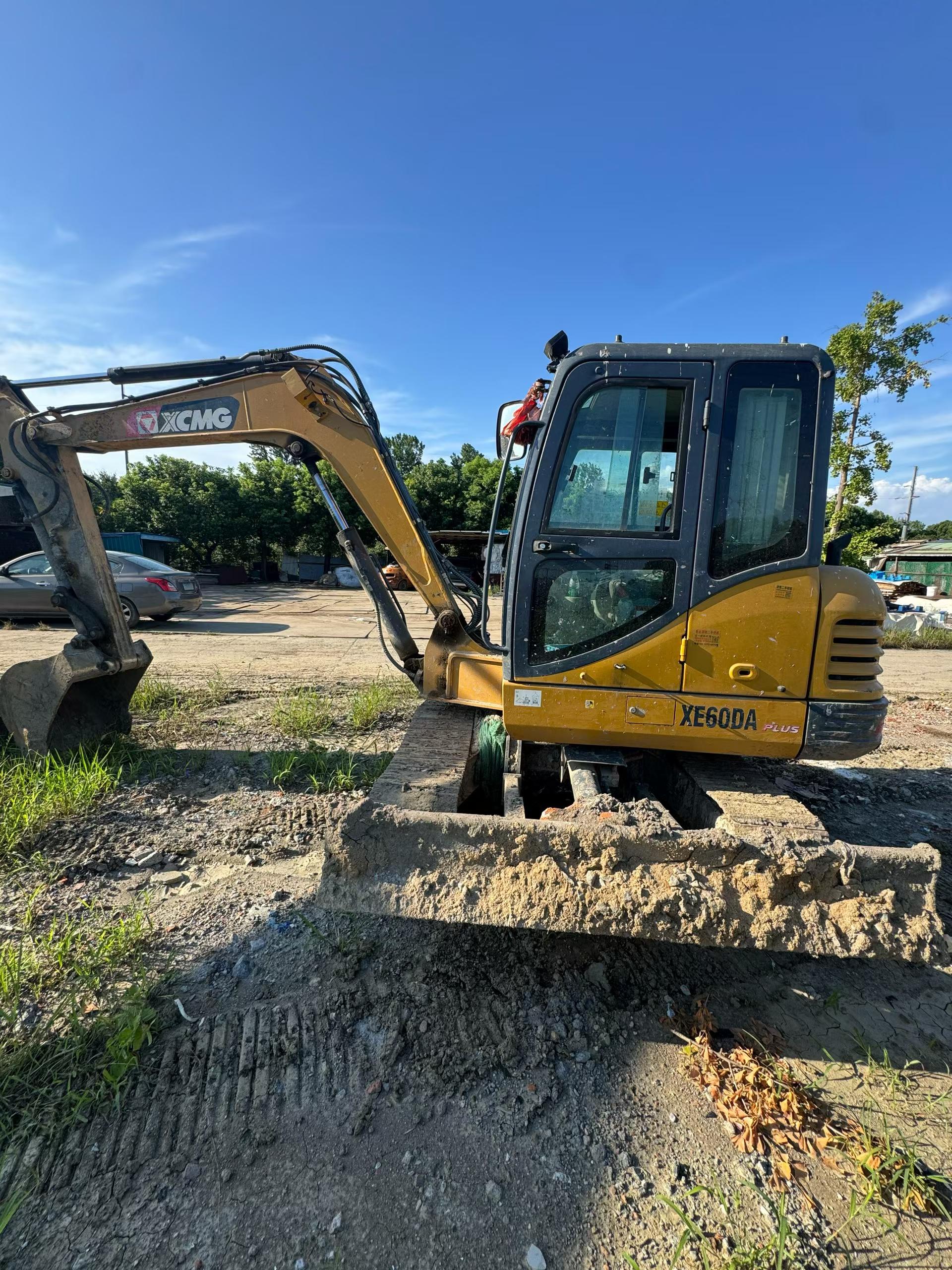

Buy XCMG XE60 Used Excavator / 2

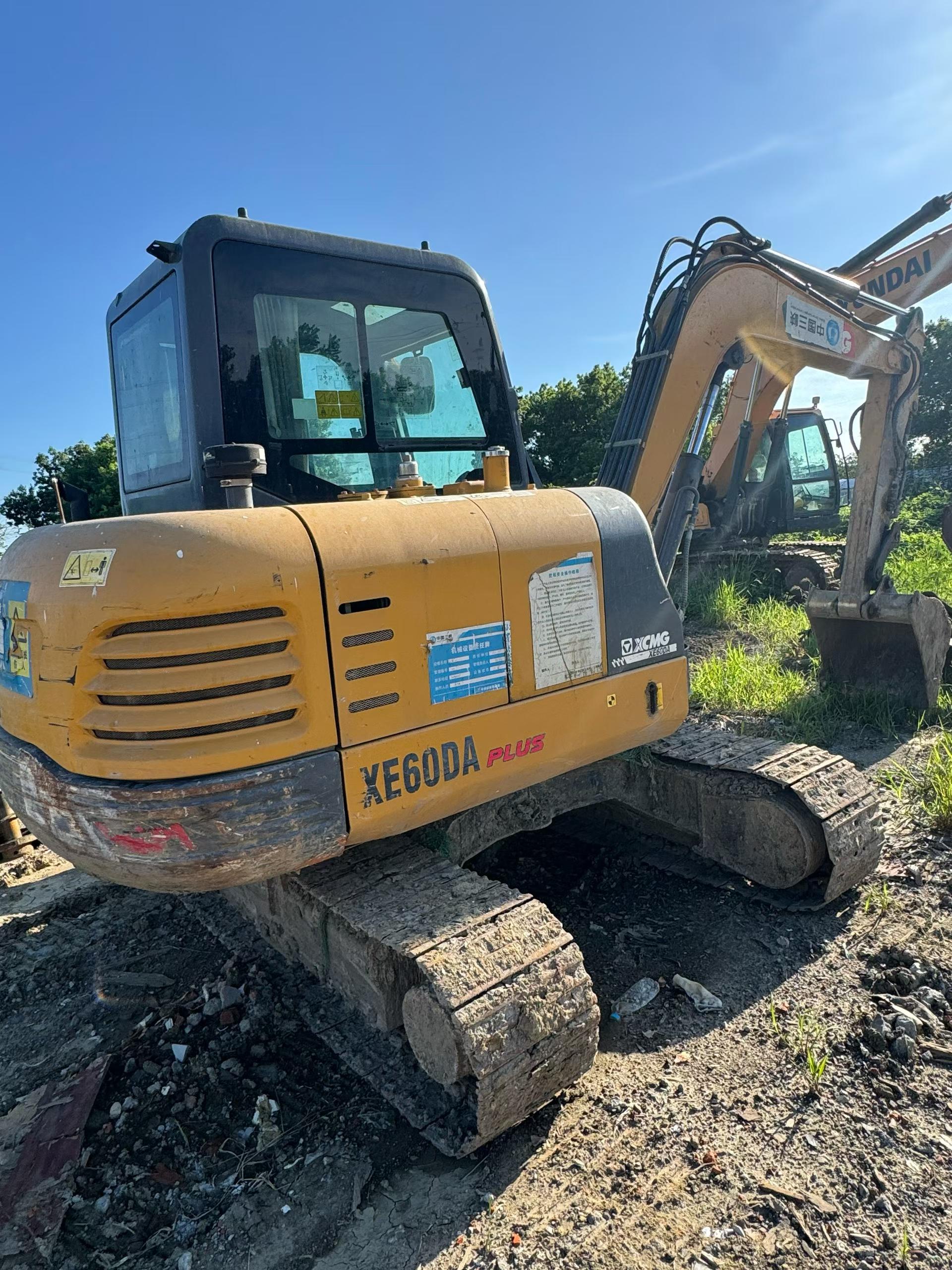

Buy XCMG XE60 Used Excavator / 3

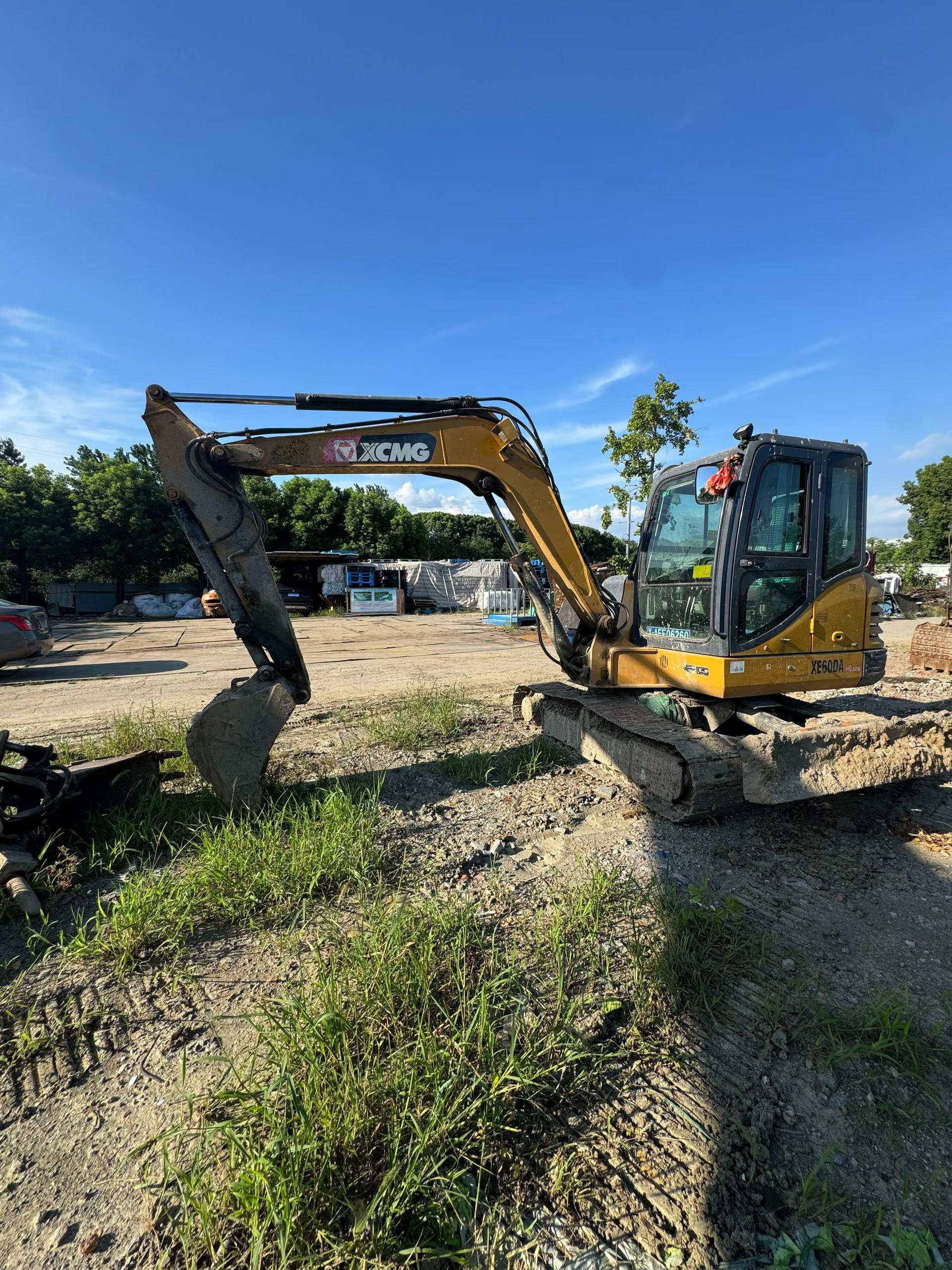

Buy XCMG XE60 Used Excavator / 4

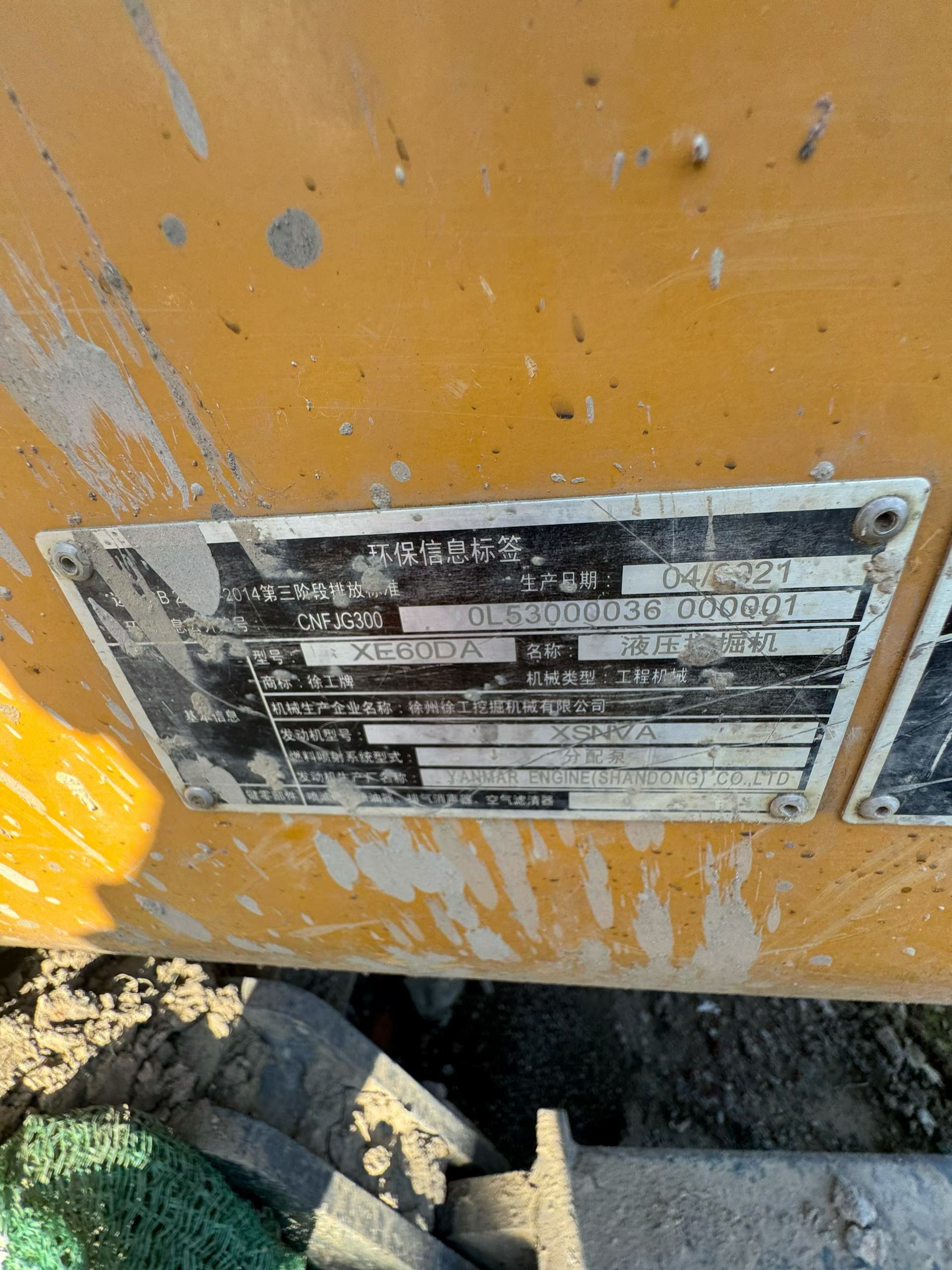

Buy XCMG XE60 Used Excavator / 5

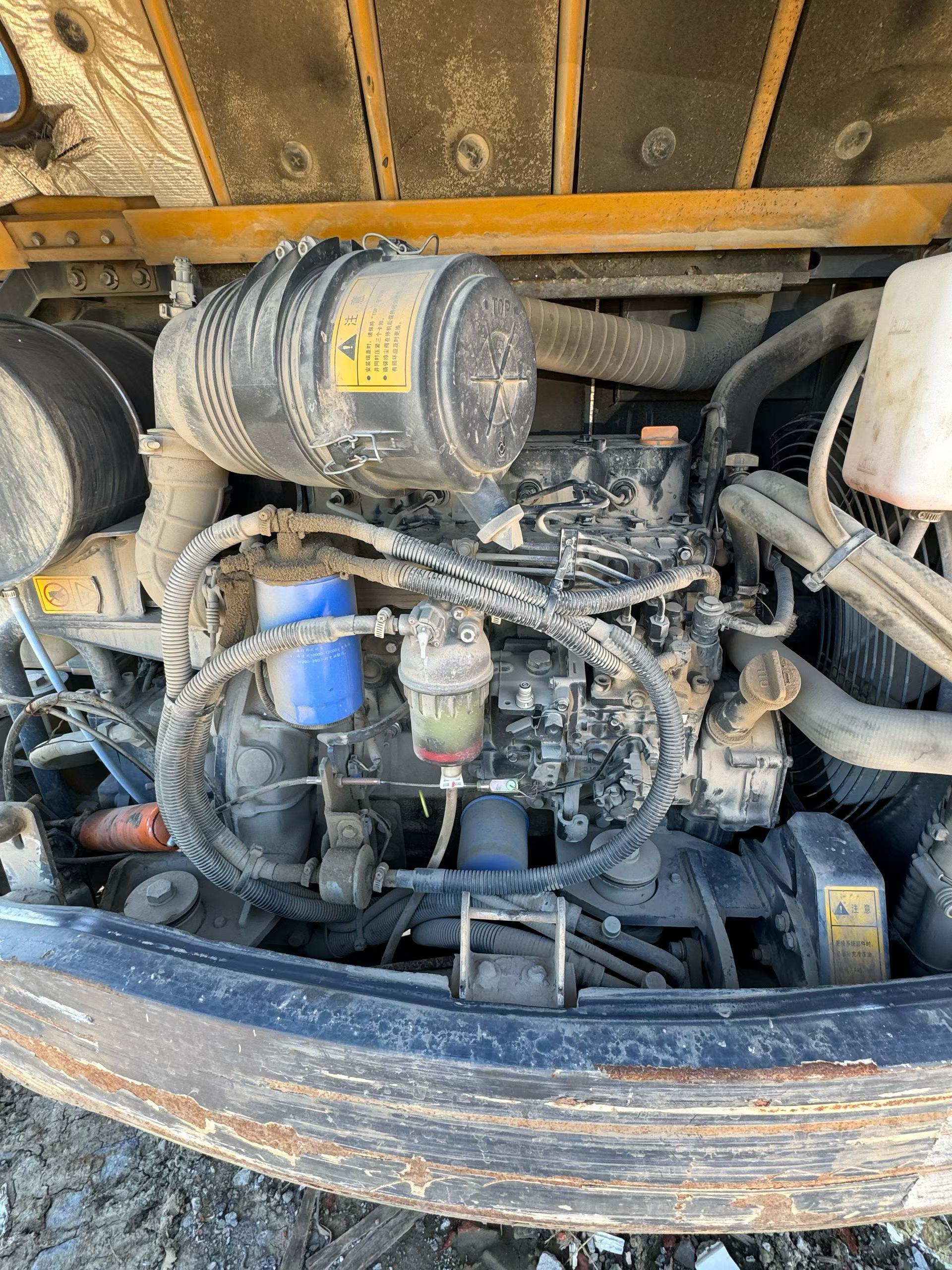

Buy XCMG XE60 Used Excavator / 6

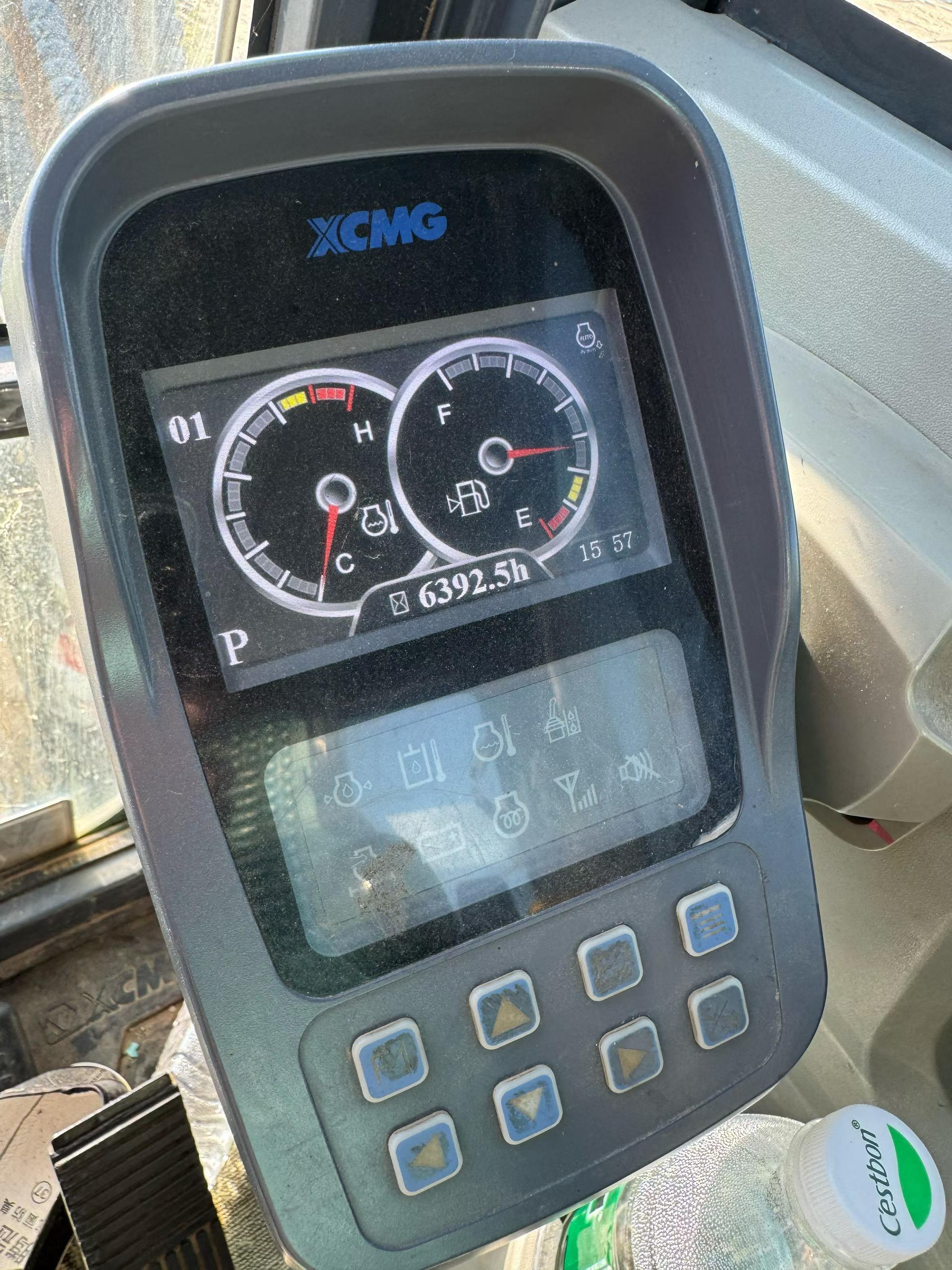

Buy XCMG XE60 Used Excavator / 7

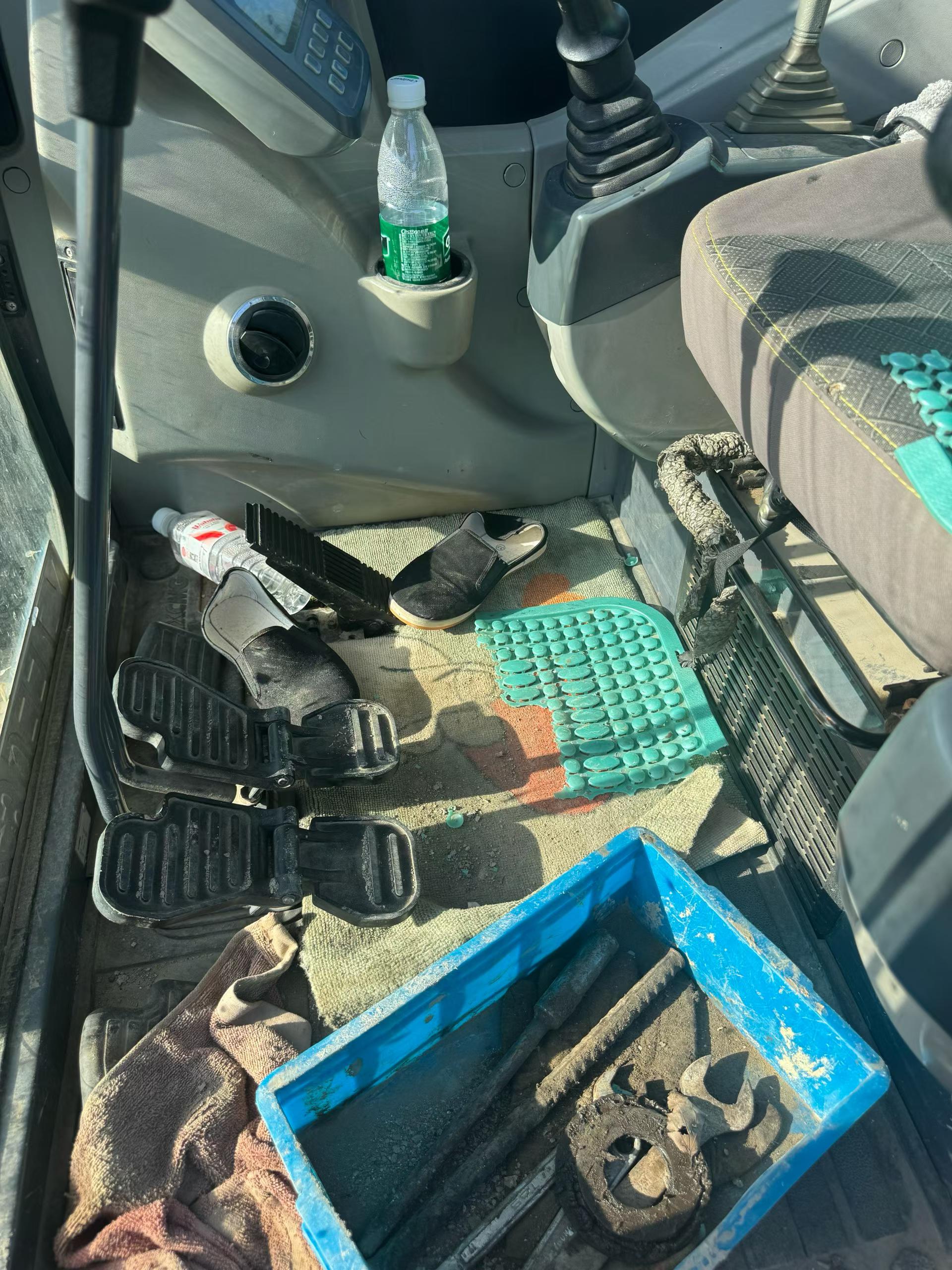

Buy XCMG XE60 Used Excavator / 8

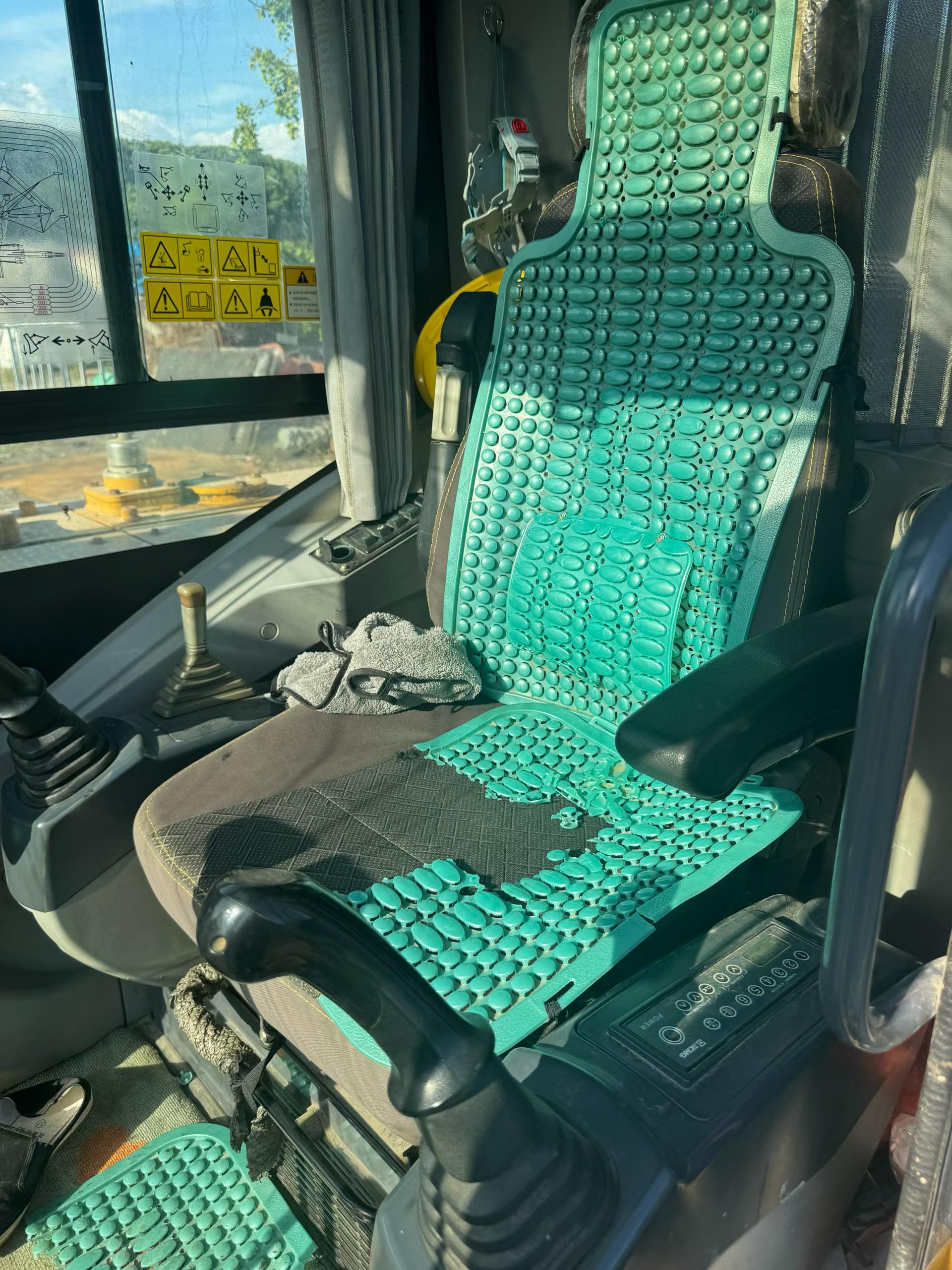

Buy XCMG XE60 Used Excavator / 9

Product Description

This 2021 XCMG XE60 excavator is located in Jiangsu, China and remains in original factory condition throughout. The machine represents XCMG's reliable 6-ton class platform, engineered for urban construction, utility work, and light earthmoving applications where maneuverability and precision matter.

Key attributes:

  • Original equipment throughout—no major component replacement or aftermarket modifications
  • Compact footprint suited for confined jobsites and urban infrastructure projects
  • Hydraulic system designed for responsive digging and grading performance
  • Standard cab configuration with operator controls and visibility optimized for precision work
  • Ready for inspection in Jiangsu; available for domestic or export purchase

This unit offers a cost-effective entry into the XCMG 6-ton excavator segment for contractors seeking proven technology with minimal operational history. Ideal for rental fleets, municipal departments, or general contractors expanding light equipment capacity.

SpecificationsValue
No.1139672
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1139672

Brand Name:

XCMG

Model Number:

XE60

Year:

2021

Location:

Jiangsu China

Pub Date
