Product Description

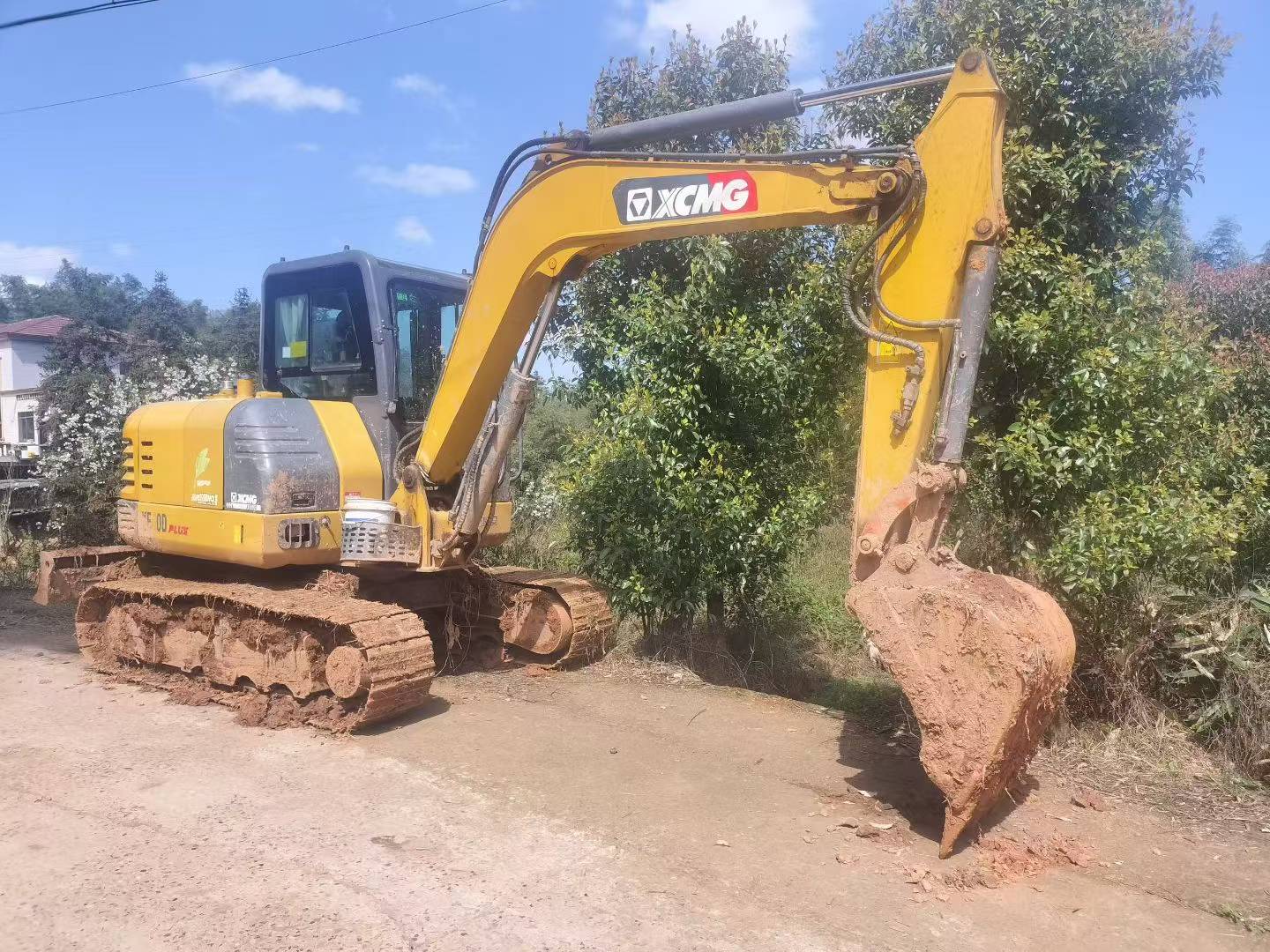

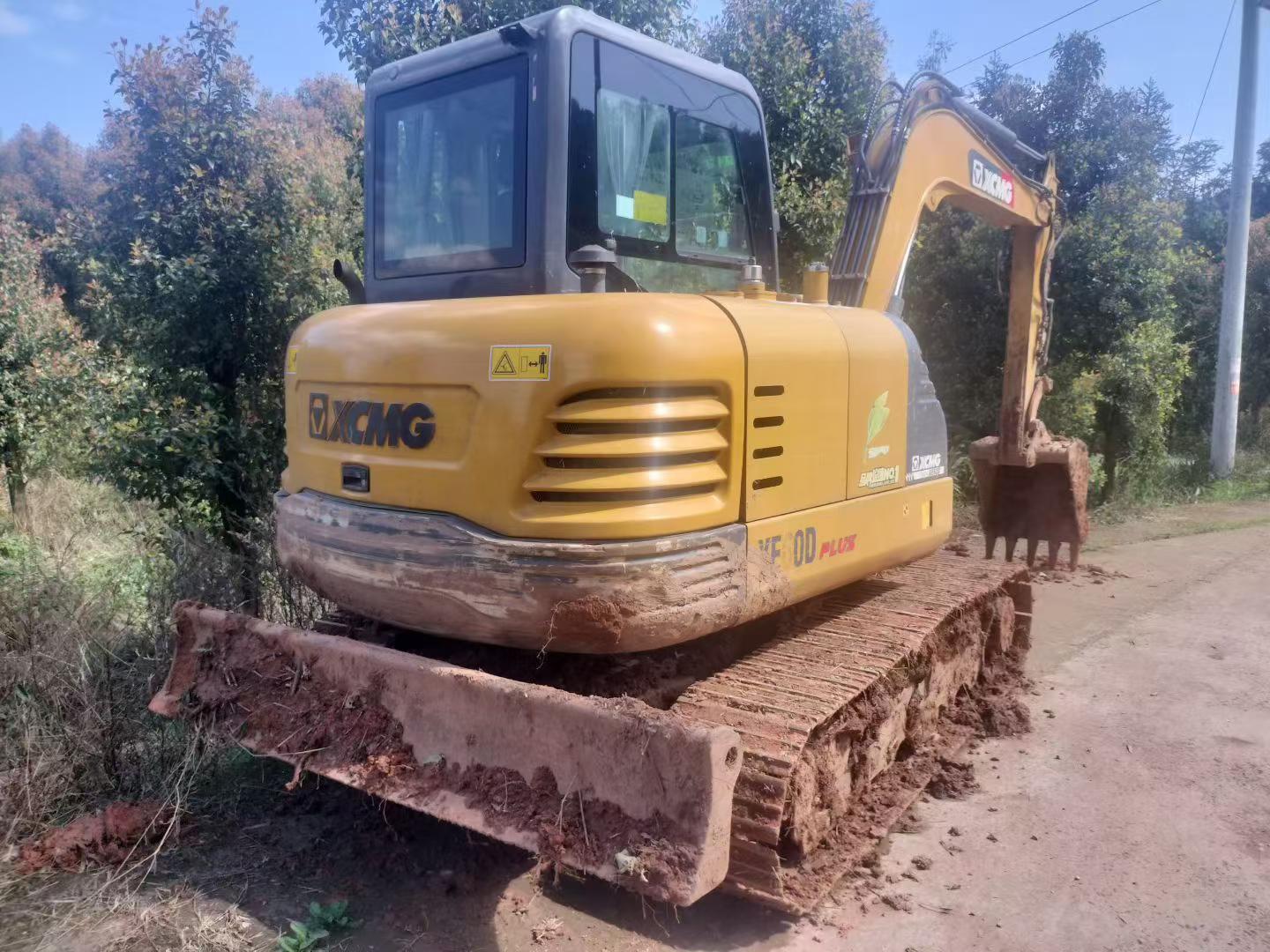

Proven performance meets exceptional value in this 2022 XCMG XE60 mini excavator, currently located in Sichuan. Built by China's most established heavy equipment manufacturer, this 6-ton compact machine delivers 39.8kW of Yanmar 4TNV94L power with the reliability that keeps XCMG resale values strong in secondary markets worldwide. Operating weight of 5,960kg and bucket capacity ranging from 0.09 to 0.23m³ make it versatile for confined job sites requiring precision work.

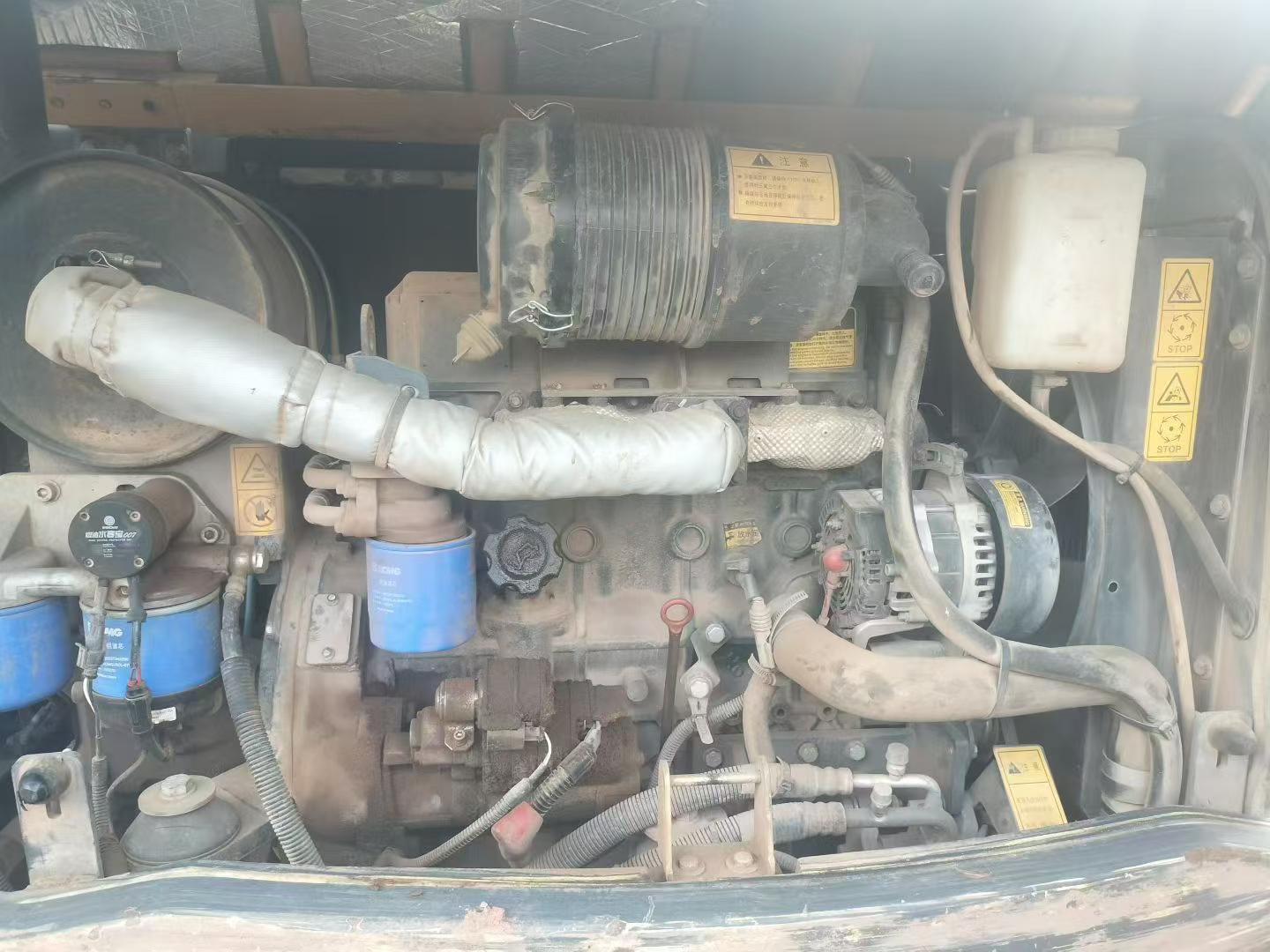

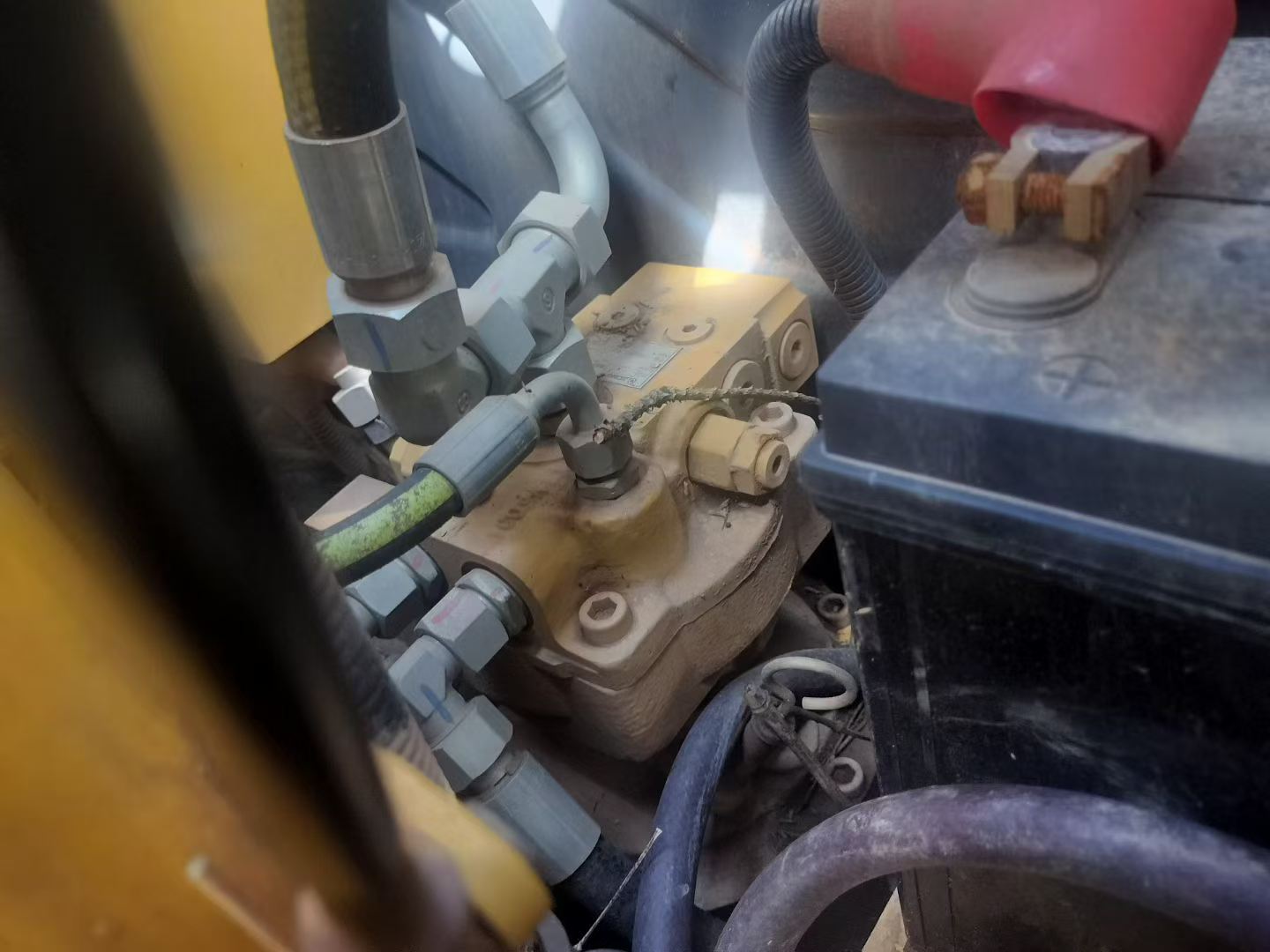

XCMG's global parts network ensures minimal downtime—critical for used equipment buyers. Equipped with Rexroth main pumps and factory-standard hydraulic crushing pipeline, this XE60 offers 6,130mm maximum digging radius and 3,830mm digging depth. Water-cooled 4-cylinder engine provides consistent performance, while 35° climbing ability and 9.5 rpm rotation speed maintain productivity across demanding terrain.
- Maximum digging height: 5,630mm
- Bucket digging force: 42.5kN
- Travel speed: 4.2/2.2 km/h
- Compact transport dimensions: 5,850mm × 1,920mm × 2,585mm
- 110L fuel capacity for extended operation
Invest confidently in XCMG—where established brand support protects your equipment investment long aft
| Specifications | Value |
|---|---|
| No. | 1027999 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
