Product Description

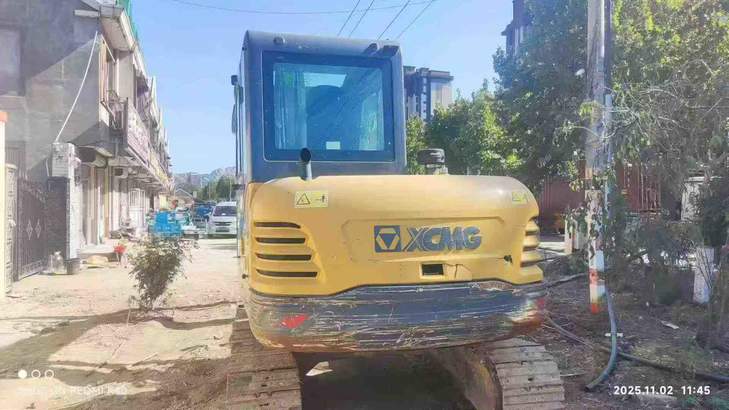

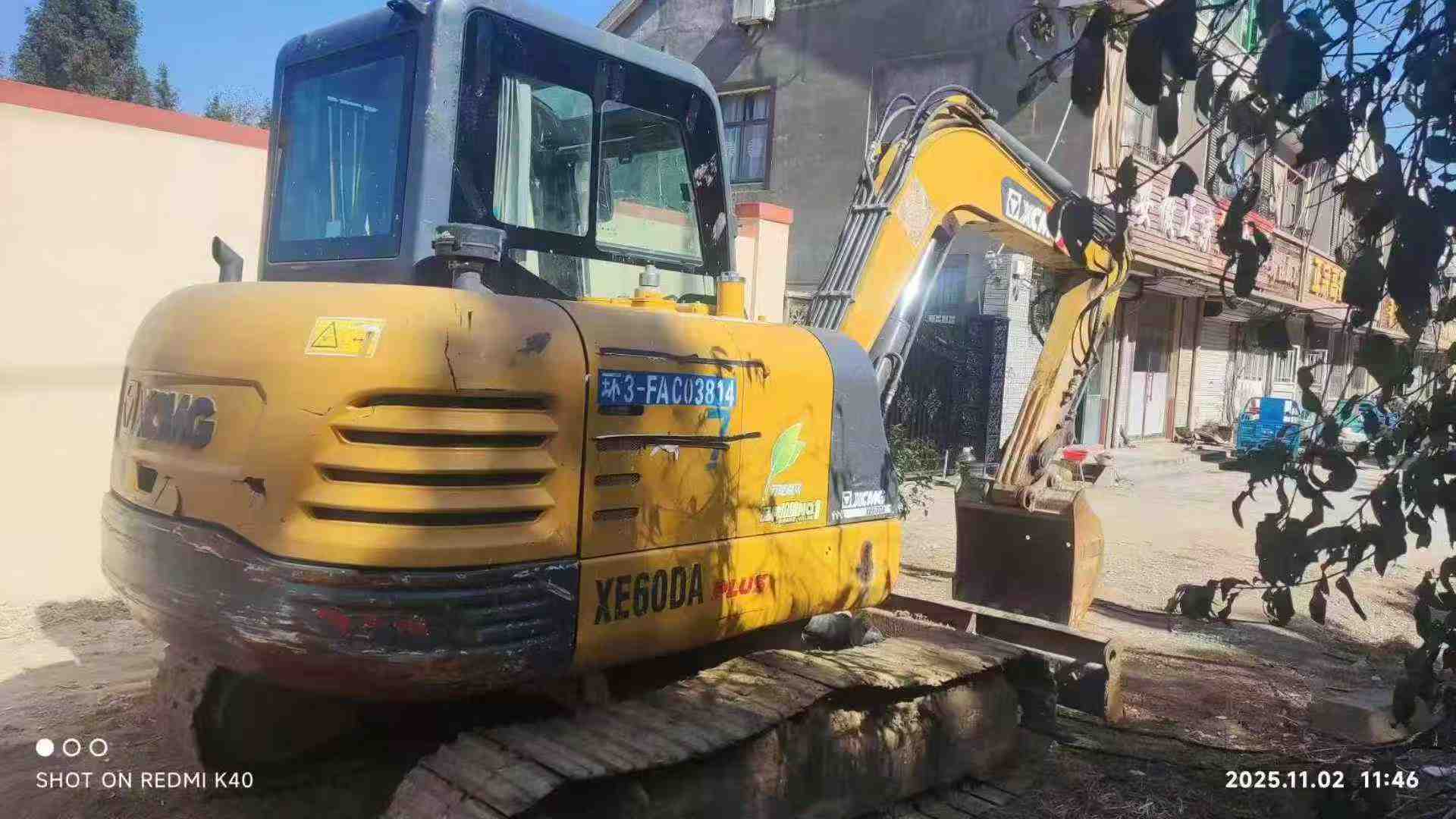

Maximize your ROI with this 2022 XCMG XE60 mini excavator—delivering near-new performance at a fraction of replacement cost. Powered by a reliable Yanmar 4TNV94L engine producing 39.8kW, this 6-ton machine offers exceptional value for contractors seeking proven capability without the premium price tag. With just minimal operating hours, you're acquiring equipment that performs like new while preserving capital for other business needs.
Engineered for versatility, the XE60 features a maximum digging depth of 3,830mm and reach of 6,130mm, handling diverse jobsite demands efficiently. The Rexroth hydraulic system ensures precise control, while bucket digging force of 42.5kN tackles tough ground conditions. Compact dimensions (5,850mm transport length) enable easy maneuverability in confined spaces, yet the machine maintains robust 35° climbing ability for challenging terrain.
Key Investment Advantages:
- 2022 model year—modern technology, minimal depreciation exposure
- Water-cooled 4-cylinder Yanmar engine—proven reliability and fuel efficiency
- Premium Rexroth hydraulics—professional-grade performance
- Standard hydraulic breaker circuit—immediate attachment versatilit
| Specifications | Value |
|---|---|
| No. | 1030403 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
