Product Description
Proven in demanding applications worldwide, this 2022 XCMG XE60 mini excavator delivers 6-ton performance with the reliability that defines China's largest construction equipment manufacturer. Powered by a Yanmar 4TNV94L engine producing 39.8 kW, this compact workhorse combines exceptional digging force (42.5 kN bucket, 28.5 kN arm) with nimble maneuverability in a 5,960 kg package. Rexroth main pumps and water-cooled efficiency ensure consistent hydraulic performance across 6,130 mm maximum reach and 3,830 mm dig depth.
XCMG's global parts network and standardized components make this XE60 a strategic investment for the secondary market. Unlike lesser-known brands, XCMG maintains comprehensive parts availability across six continents, minimizing downtime and preserving resale value. Hydraulic crushing lines come standard, while dual-speed travel (4.2/2.2 km/h) and 35° grading capability adapt to varied jobsite conditions. Currently positioned in Yunnan, this machine represents accessible entry into a brand trusted by rental fleets and contractors who demand long-term support.
- Operating Weight: 5,960 kg | Bucket Capacity: 0.09-0.23 m³

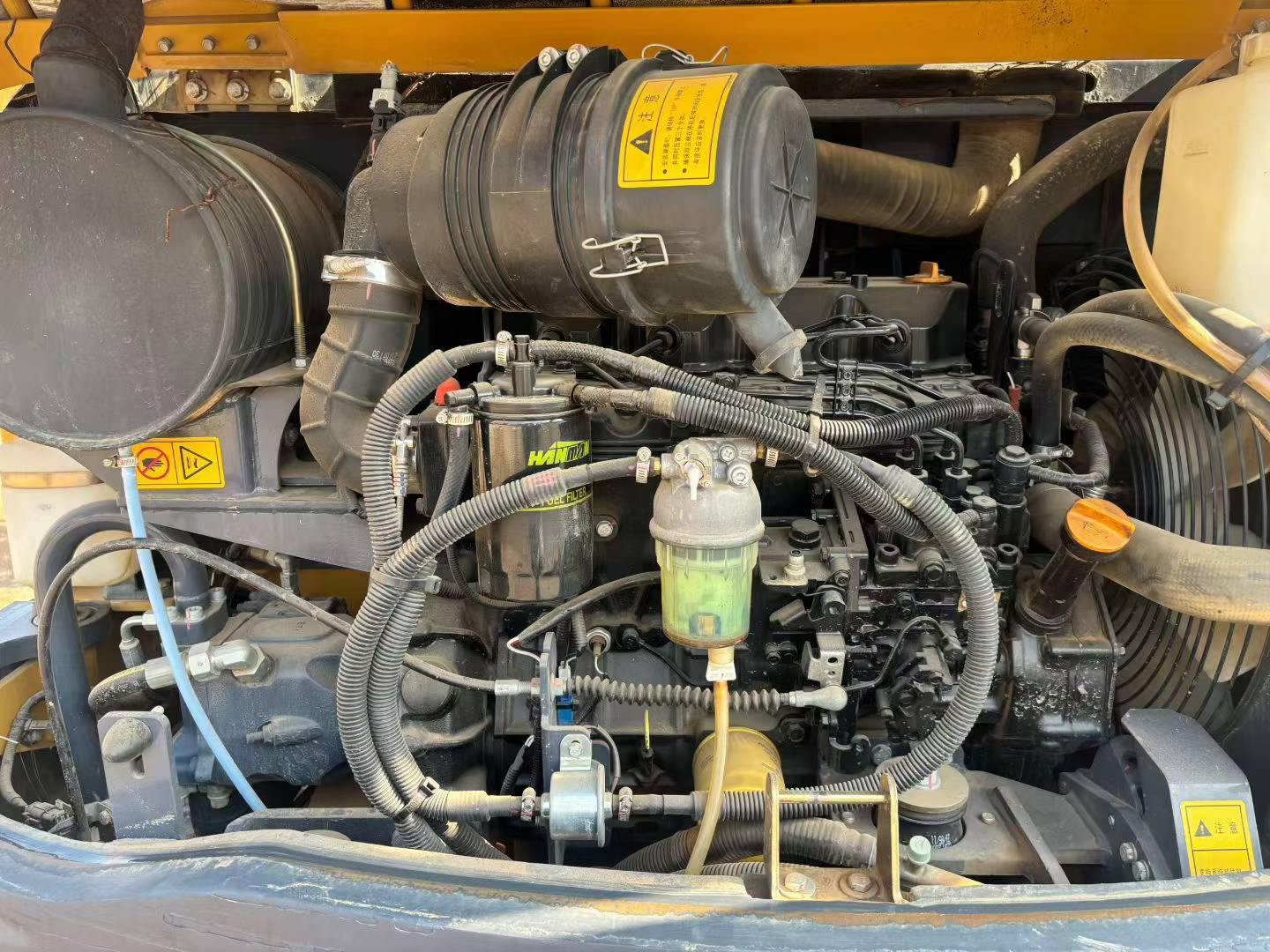

- Yanmar 4TNV94L Engine: 39.8 kW @ 2,200 rpm
- Maximum Dig Dept
| Specifications | Value |
|---|---|
| No. | 1032624 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
