2022 XCMG XE60

1/5

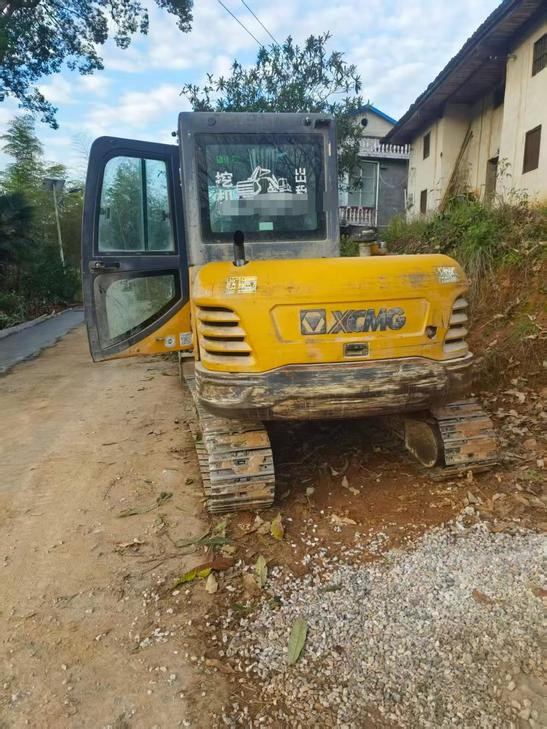

Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4
Buy XCMG XE60 Used Excavator / 5

Product Description

This 2022 XCMG XE60 excavator represents exceptional value in the compact excavator segment. With minimal operating hours since commissioning, this unit demonstrates the build quality and reliability XCMG is known for in the Chinese heavy equipment market. Currently located in Jiangxi Province, China, the machine is priced competitively at approximately 60,000 RMB, making it an attractive option for contractors seeking dependable mid-size excavation capacity.

Key features include:

  • Operating weight class: 6 metric tons
  • Low hours, well-maintained condition
  • Suitable for urban construction, landscaping, and utility work
  • Fuel-efficient diesel engine
  • Standard bucket and attachments included
  • Ready for immediate deployment

Ideal for small to medium-scale earthmoving projects. Inspection welcomed. Export and domestic delivery options available.

SpecificationsValue
No.1082881
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1082881

Brand Name:

XCMG

Model Number:

XE60

Year:

2022

Location:

Jiangxi China

Pub Date
