Product Description

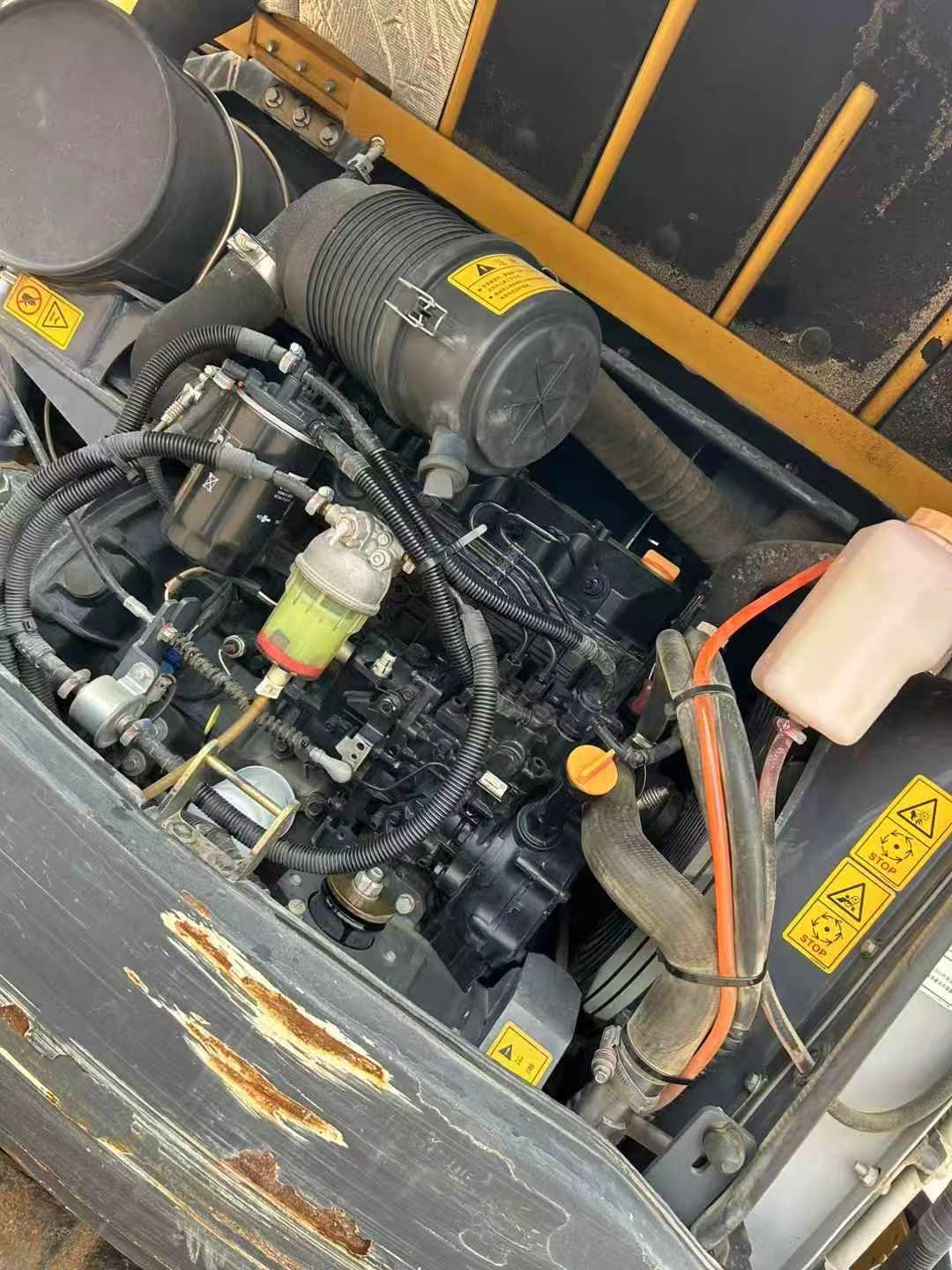

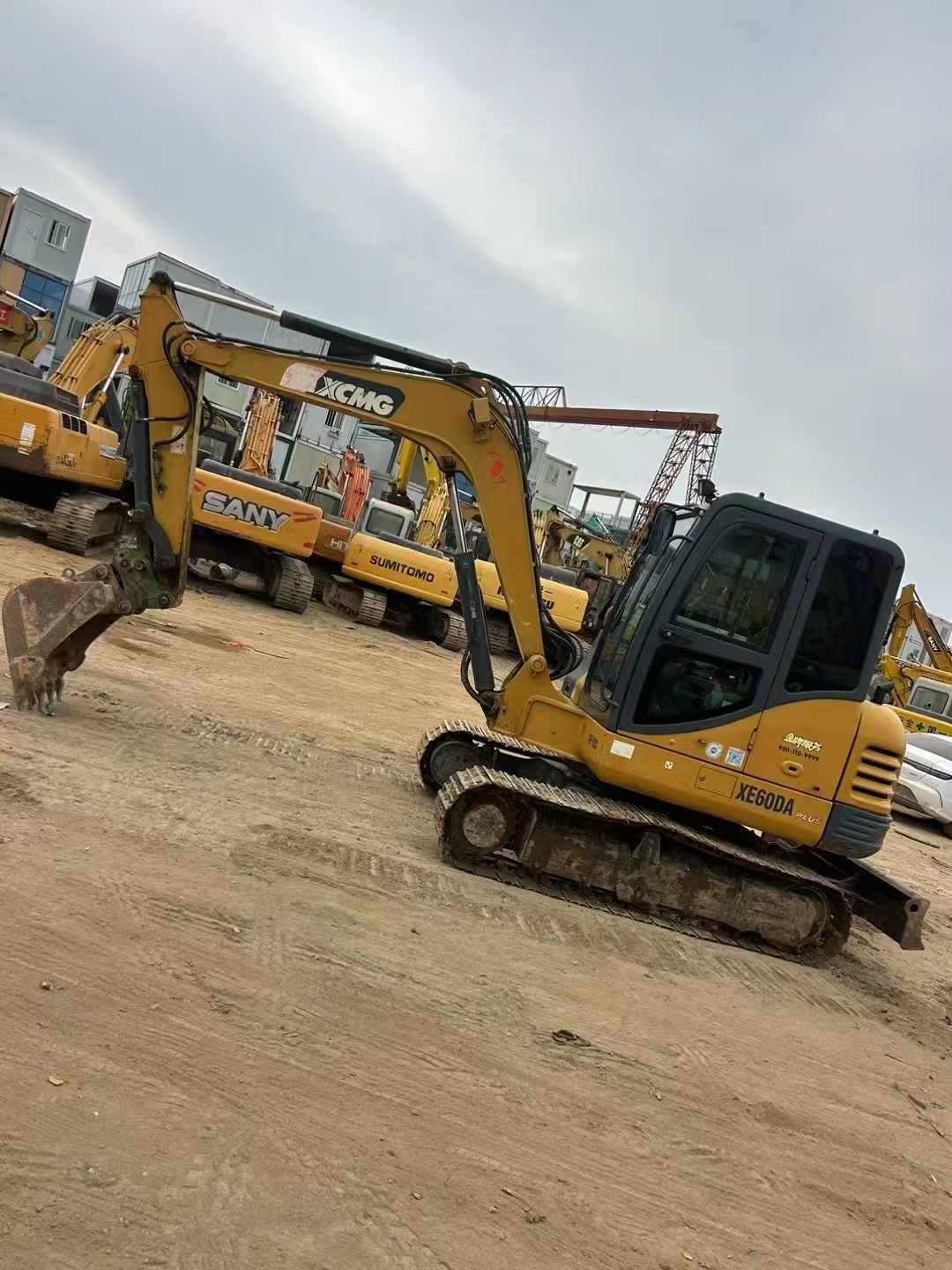

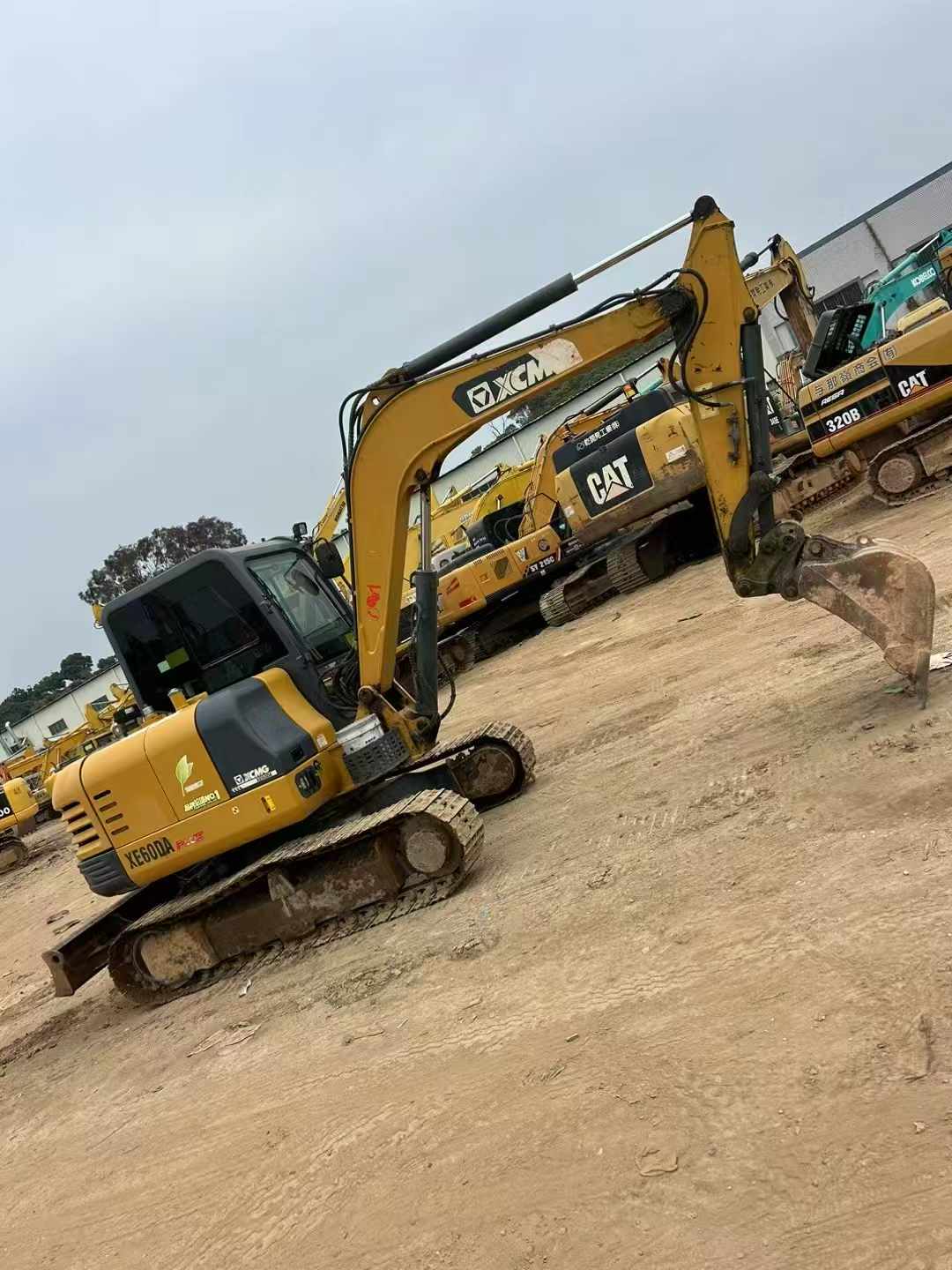

Maximize your equipment budget with this 2022 XCMG XE60 excavator, currently located in Shenzhen, Guangdong. Operating at 6 tons with a working weight of 5,960 kg, this compact machine delivers exceptional value without the premium price tag of new equipment. Powered by a reliable Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, it combines proven performance with cost-effective operation.

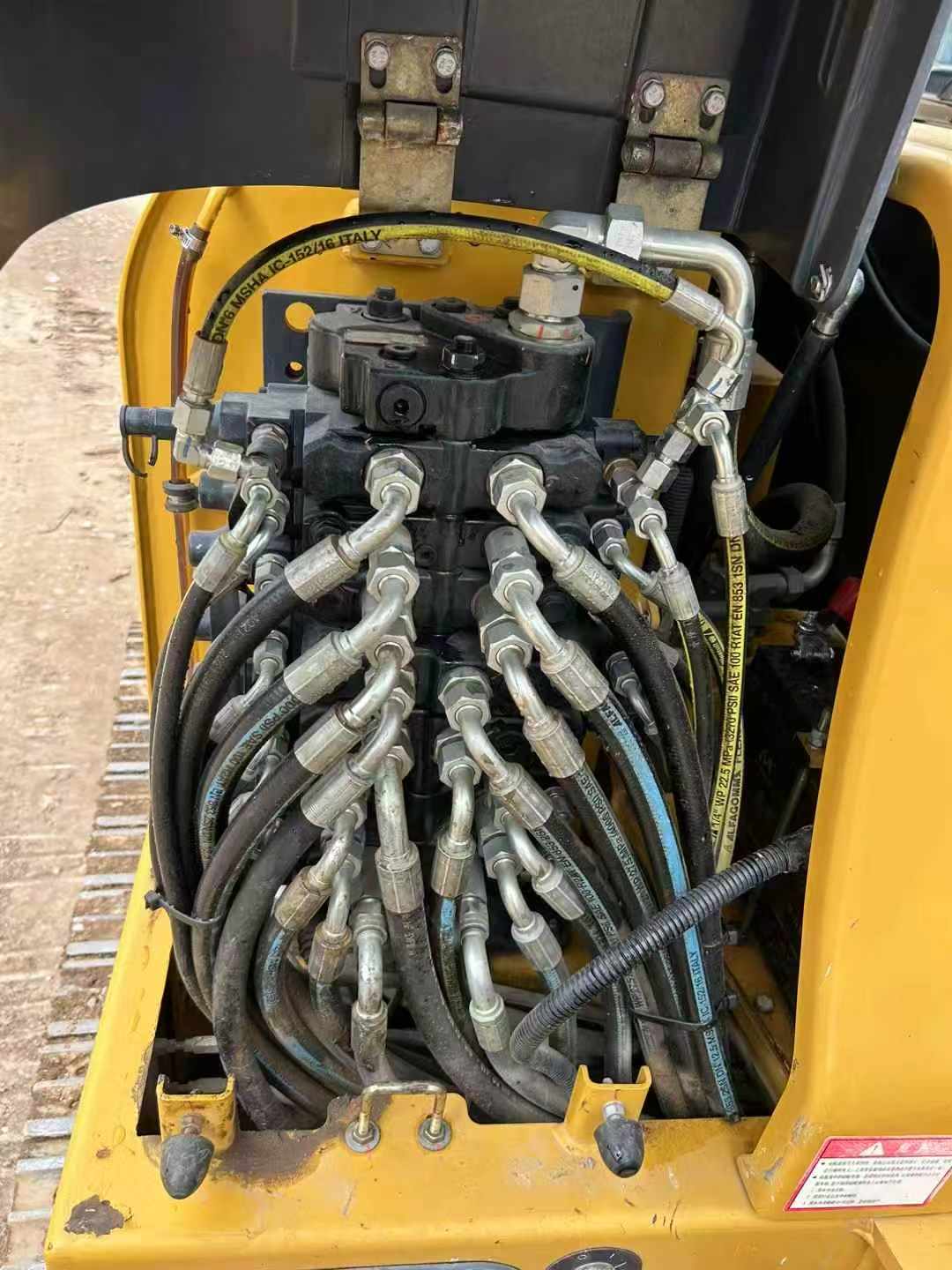

Built for versatility, this unit features a 3000mm boom and 1600mm arm configuration, achieving a maximum digging depth of 3830mm and a reach of 6130mm. The Rexroth main pump system ensures hydraulic efficiency, while impressive digging forces of 42.5 kN (bucket) and 28.5 kN (arm) handle demanding applications with ease. Standard hydraulic crushing pipeline compatibility adds operational flexibility.
Key specifications include:
- Bucket capacity: 0.09-0.23 m³ with backhoe configuration
- Travel speed: 4.2/2.2 km/h with 35° climbing capability
- Compact dimensions: 5850mm length × 1880/1920mm width
- Fuel efficiency: 110L tank capacity with water-cooled 4-cylinder engine
Acquire high-performance excavation capability at a fraction of new equipment costs. Smart operators recognize th
| Specifications | Value |
|---|---|
| No. | 996088 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
