Product Description

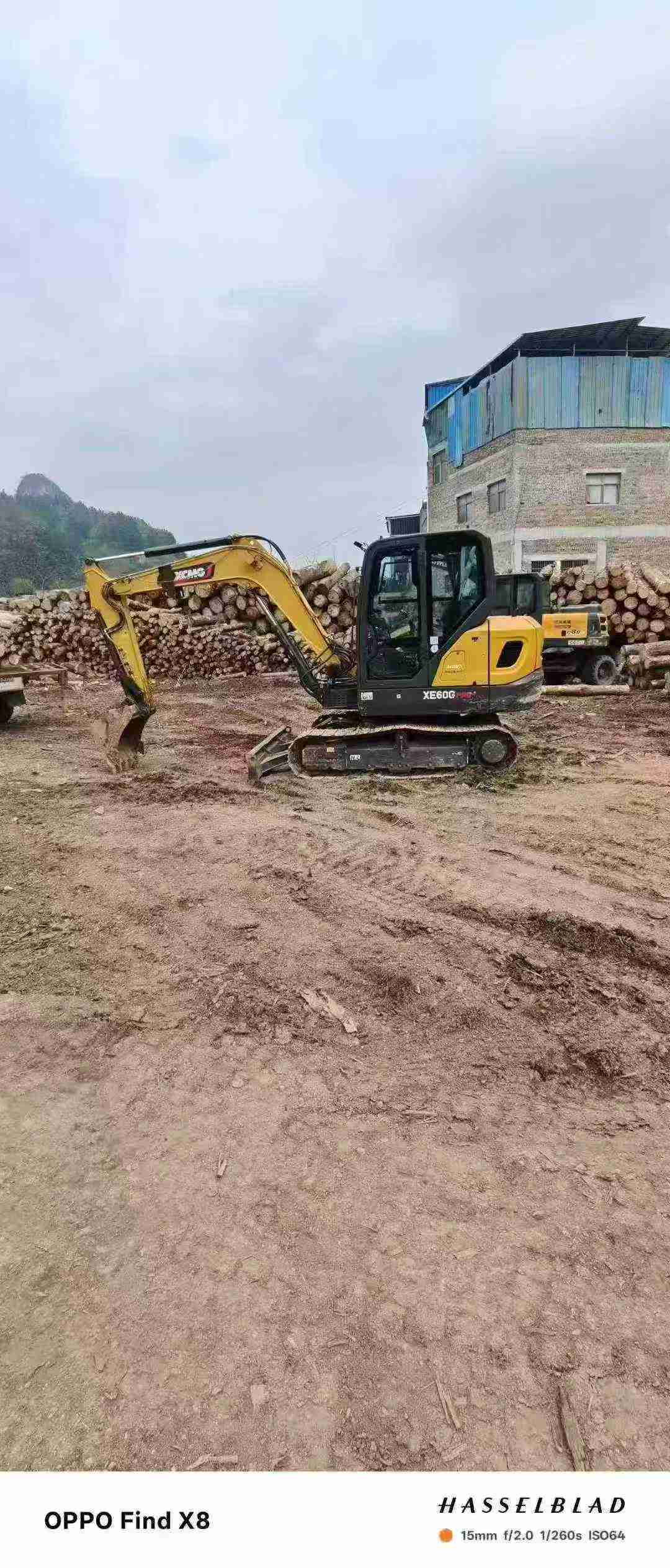

Engineered with precision hydraulics and proven powertrain technology, this 2024 XCMG XE60 mini excavator delivers 6-ton performance across demanding jobsites. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, the machine pairs water-cooled reliability with Rexroth main pumps delivering dual 60.5 l/min flow rates for responsive control. Bucket digging force reaches 42.5 kN while rod force hits 28.5 kN, supported by hydraulic circuits operating at 22-23 MPa for consistent breakout power.
Compact dimensions—5850 mm transport length and 1880 mm width—enable access to confined spaces without sacrificing reach. Maximum digging radius extends to 6130 mm with depth capabilities of 3830 mm, while the 3000 mm boom and 1600 mm stick optimize material handling efficiency. Operating weight of 5960 kg maintains 32.1 kPa ground pressure for minimal surface disturbance. Standard hydraulic crushing pipeline, 110L fuel capacity, and 9.5 rpm rotation speed complete a package built for multi-application versatility. Currently located in Luzhou, Sichuan, this XCMG unit represents Chinese manufacturing at operational grade.
| Specifications | Value |
|---|---|
| No. | 1031154 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
