Product Description

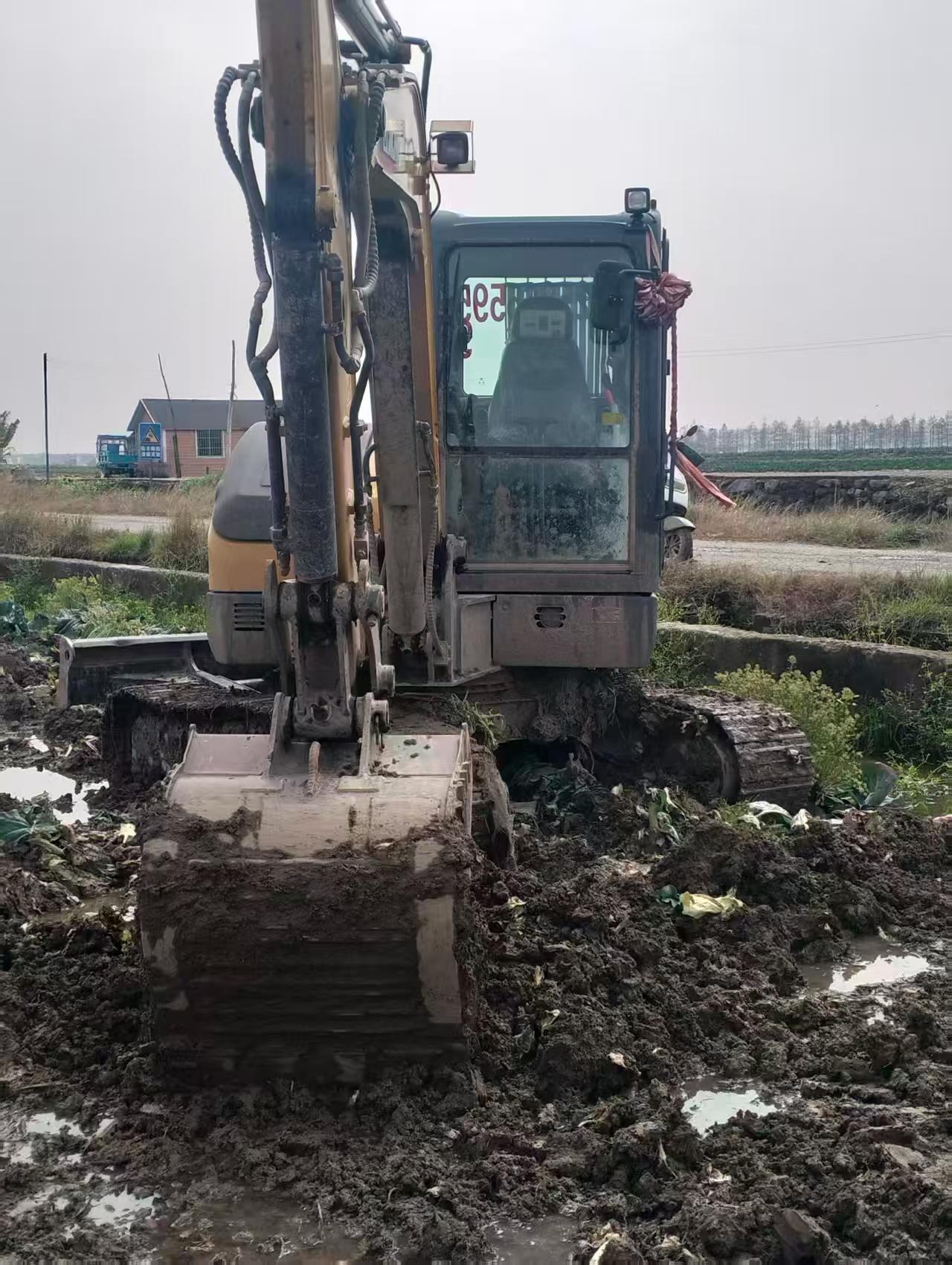

Available now in Wenzhou, Zhejiang, this 2025 XCMG XE60 mini excavator eliminates factory wait times and delivers immediate deployment to your jobsite. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this 6-ton machine combines compact dimensions (5850×1920×2585 mm) with serious digging capability—maximum reach of 6130 mm and depth of 3830 mm.
Hydraulic performance stands out with dual Rexroth main pumps delivering 2×60.5 + 40.3 + 9.9 L/min total flow at 22 MPa system pressure. Bucket digging force reaches 42.5 kN while rod force hits 28.5 kN, handling demanding excavation in confined spaces. Water-cooled 4-cylinder diesel engine with 3.054L displacement ensures reliable operation across extended shifts.
Key Specifications:
- Operating weight: 5960 kg with 0.09-0.23 m³ bucket capacity
- Boom/rod configuration: 3000 mm / 1600 mm
- Travel speed: 4.2 km/h (high) / 2.2 km/h (low)
- Standard hydraulic breaker pipeline included
- 35° climbing ability, 9.5 rpm rotation speed
Skip months of lead time—secure this ready-to-ship unit from Wenzhou and start earning immediately.
| Specifications | Value |
|---|---|
| No. | 1024577 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
