Product Description

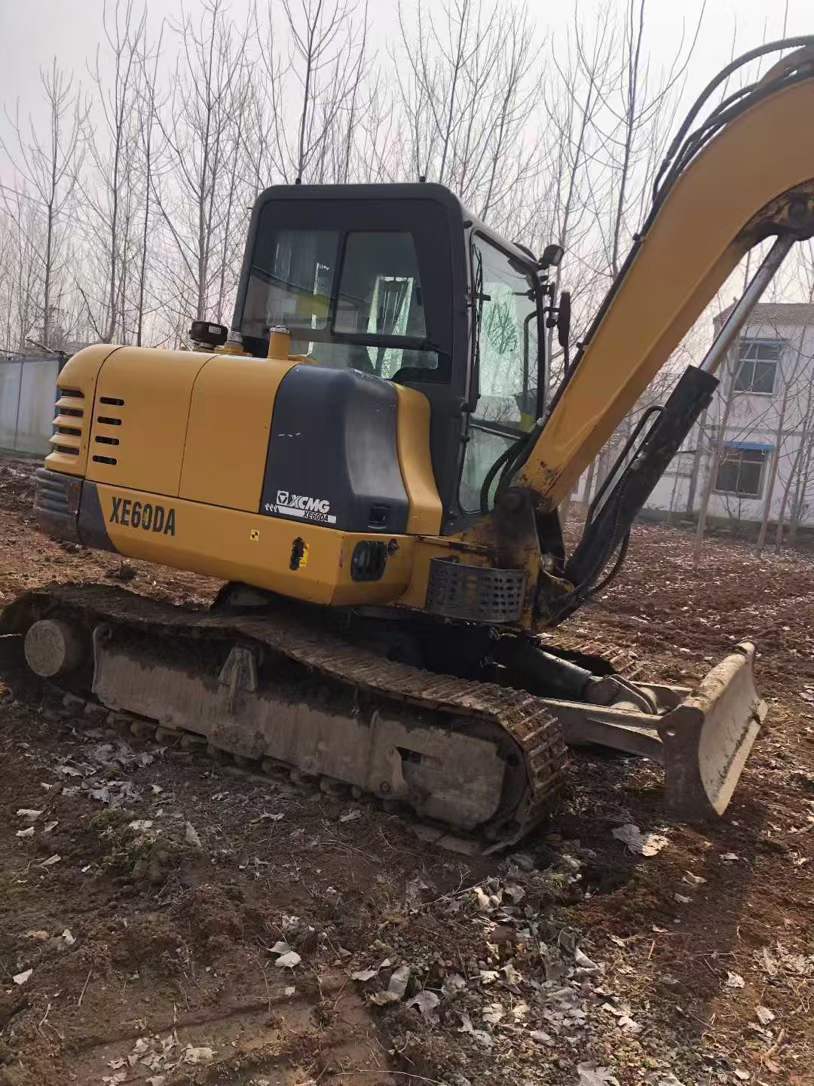

Built to endure the toughest jobsite conditions, this 2019 XCMG XE60DA compact excavator demonstrates proven reliability through years of consistent performance. Operating at 6 tons with a robust 6,010 kg working weight, this machine delivers dependable power through its 4TNV94L engine, generating 36.2 kW at 2100 rpm with water-cooling efficiency. Engineered in徐州, China, this workhorse combines a 3000mm boom and 1600mm arm to achieve a maximum digging reach of 6130mm and depth of 3830mm.
- Bucket digging force: 48.3 kN for demanding excavation tasks
- Maximum tractive force: 50.5 kN ensures superior mobility
- 0.23 m³ bucket capacity optimized for versatility
- 35% climbing ability tackles challenging terrain
- Compact transport dimensions: 5860mm × 1920mm × 2585mm
- 110L fuel tank and 85L hydraulic tank for extended operation
- 10 rpm rotation speed with 2460mm minimum turning radius
Proven through real-world application since 2019, this direct-injection, 4-stroke excavator represents XCMG's commitment to manufacturing durable equipment that stands the test of time. Currently located in Jiangsu Xuzhou, this reliable machine continues to deliver profe
| Specifications | Value |
|---|---|
| No. | 1004858 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6010 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 207.4/1000 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Maximum height at minimum turning radius (mm) | 1670 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
