Product Description

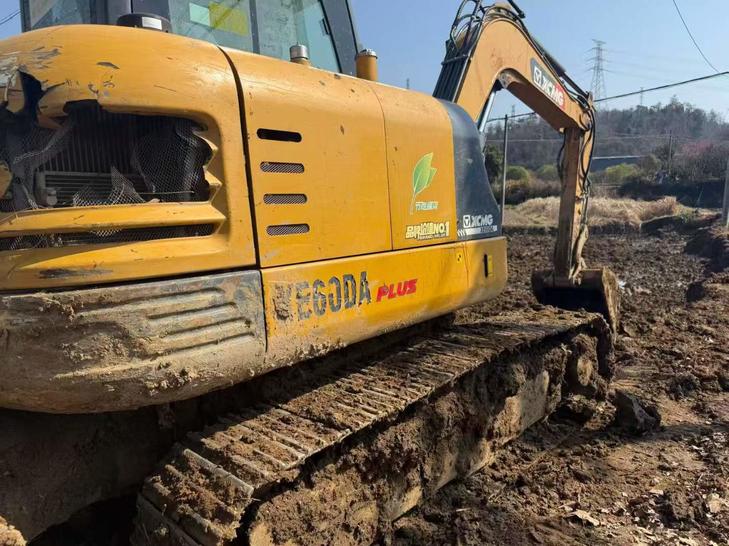

With a working weight of 6010 kg and a bucket capacity of 0.23 m³, the 2021 XCMG XE60DA excavator, located in 广东茂名, is a robust choice for diverse construction projects. Featuring a 4TNV94L engine with a rated power of 36.2 kW at 2100 rpm, this machine delivers reliable performance and efficiency. XCMG's reputation for durability and parts availability makes it a safe bet in the used market, ensuring minimal downtime and high resale value. The XE60DA offers a maximum digging depth of 3830 mm and a maximum digging force of 48.3 kN, making it ideal for demanding tasks. Its compact design, with a total transport width of 1920 mm, allows for easy maneuverability on tight job sites.
- Engine: 4TNV94L, 4 cylinders, water-cooled
- Bucket capacity: 0.23 m³
- Maximum digging depth: 3830 mm
- Travel speed: 4.2/2.4 km/h
- Fuel tank: 110 L
| Specifications | Value |
|---|---|
| No. | 1020506 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6010 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 207.4/1000 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Maximum height at minimum turning radius (mm) | 1670 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
