Product Description

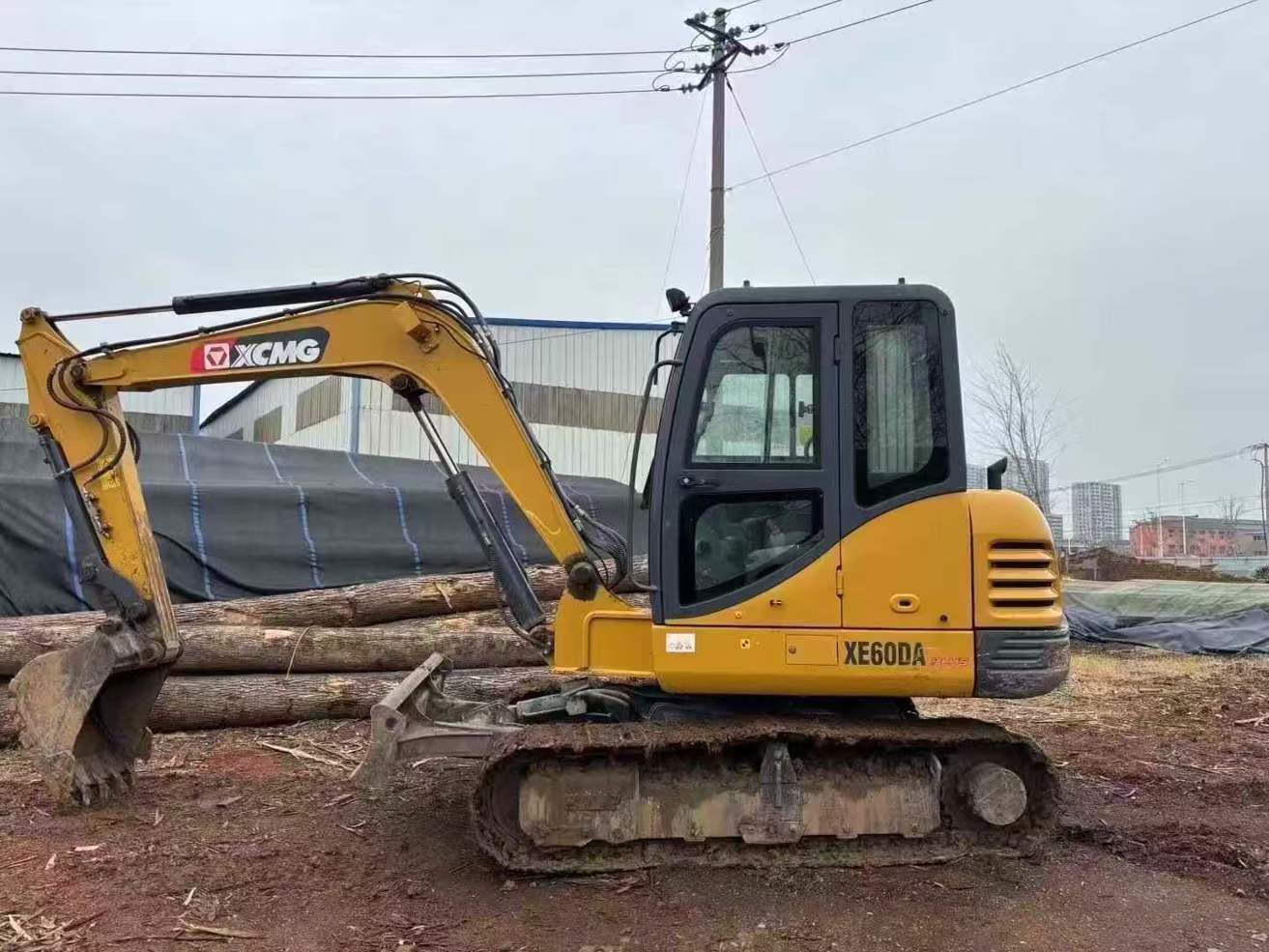

With a working weight of 6010 kg and a bucket capacity of 0.23 m³, the XCMG XE60DA is an ideal fleet addition for busy contractors. Located in Jiangsu Xuzhou, this 2021 model offers robust performance and reliability. Equipped with a 4TNV94L engine, it delivers 36.2 kW at 2100 rpm, ensuring efficient operation. The excavator features a maximum digging force of 48.3 kN and a travel speed of up to 4.2 km/h, making it versatile for various construction tasks.
- Tonnage: 6 tons
- Boom length: 3000 mm
- Rod length: 1600 mm
- Ground specific pressure: 32.5 Kpa
- Fuel tank: 110 L
- Hydraulic tank: 85 L
- Total transport dimensions: 5860 x 1920 x 2585 mm
Integrate this XCMG XE60DA into your fleet for consistent, dependable performance, enhancing your operational efficiency and productivity.
| Specifications | Value |
|---|---|
| No. | 1023137 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6010 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

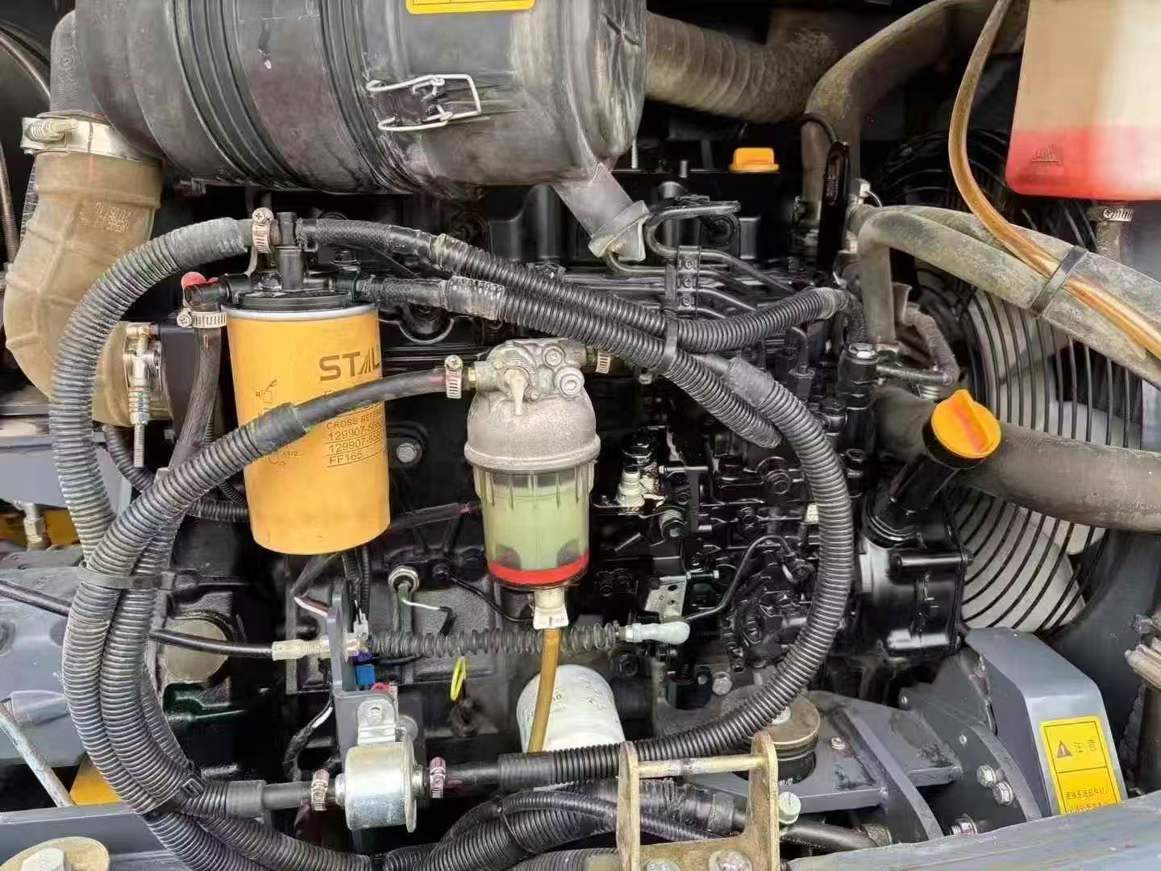

| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 207.4/1000 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Maximum height at minimum turning radius (mm) | 1670 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
