Product Description
This 2022 XCMG XE60DA excavator represents a solid entry-level compact machine with minimal operating hours. Manufactured by one of China's leading heavy equipment producers, the XE60DA is built for versatility in tight urban jobsites, landscaping operations, and light demolition work.
Currently located in Zhejiang, China, this unit comes with comprehensive photo and video documentation available for remote inspection. The 6-ton class excavator features XCMG's proven hydraulic system, zero tail swing design for confined spaces, and a reliable engine platform suited for extended duty cycles.
- Model Year: 2022
- Operating Weight: ~6,000 kg
- Manufacturer: XCMG (Xuzhou Construction Machinery Group)
- Current Location: Zhejiang Province, China
- Documentation: Photos and video available upon request
Ideal for contractors seeking dependable compact excavation capacity with recent manufacture date and established OEM support network across Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1137926 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6010 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

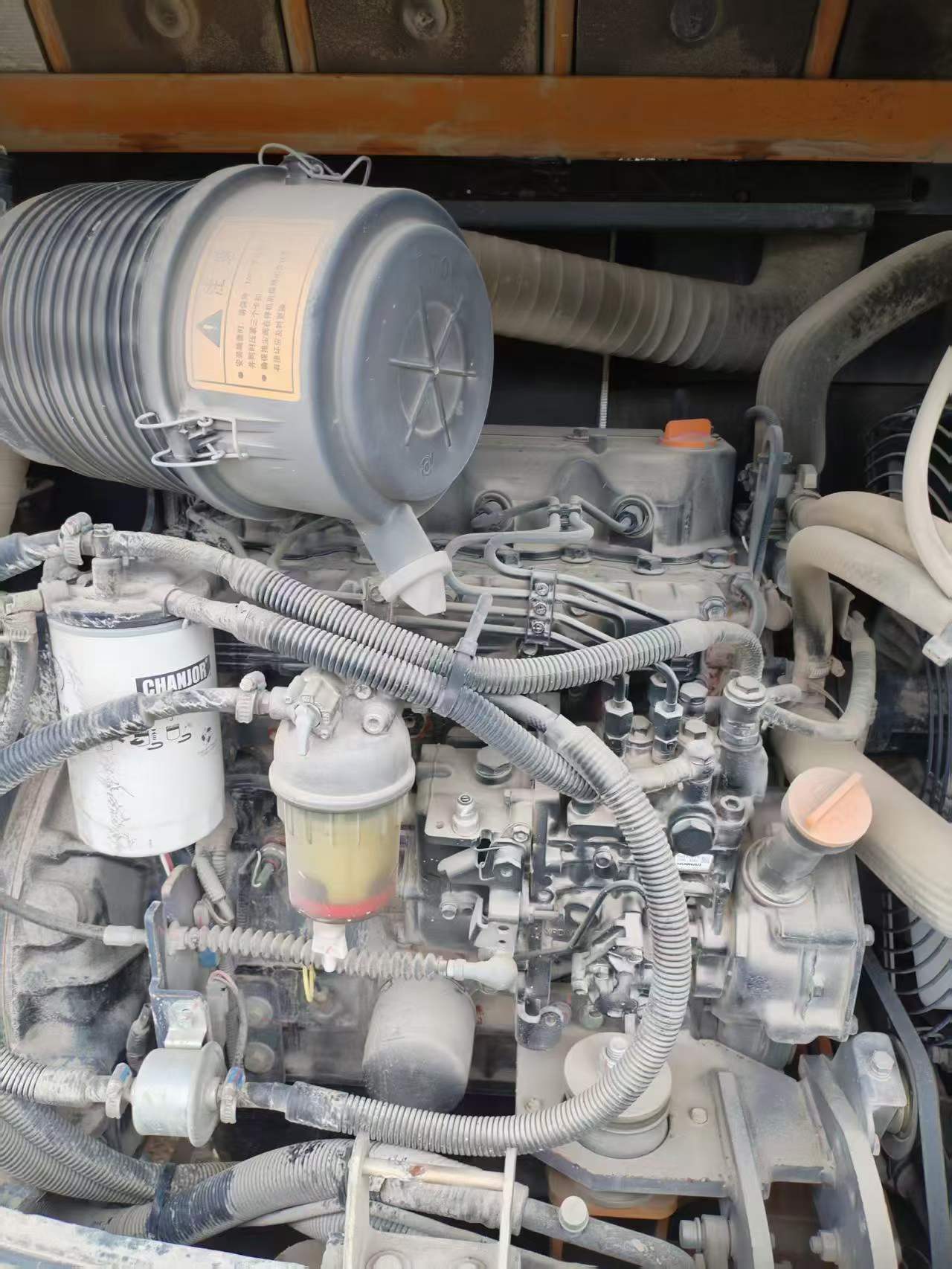

| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 207.4/1000 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Maximum height at minimum turning radius (mm) | 1670 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
