Product Description

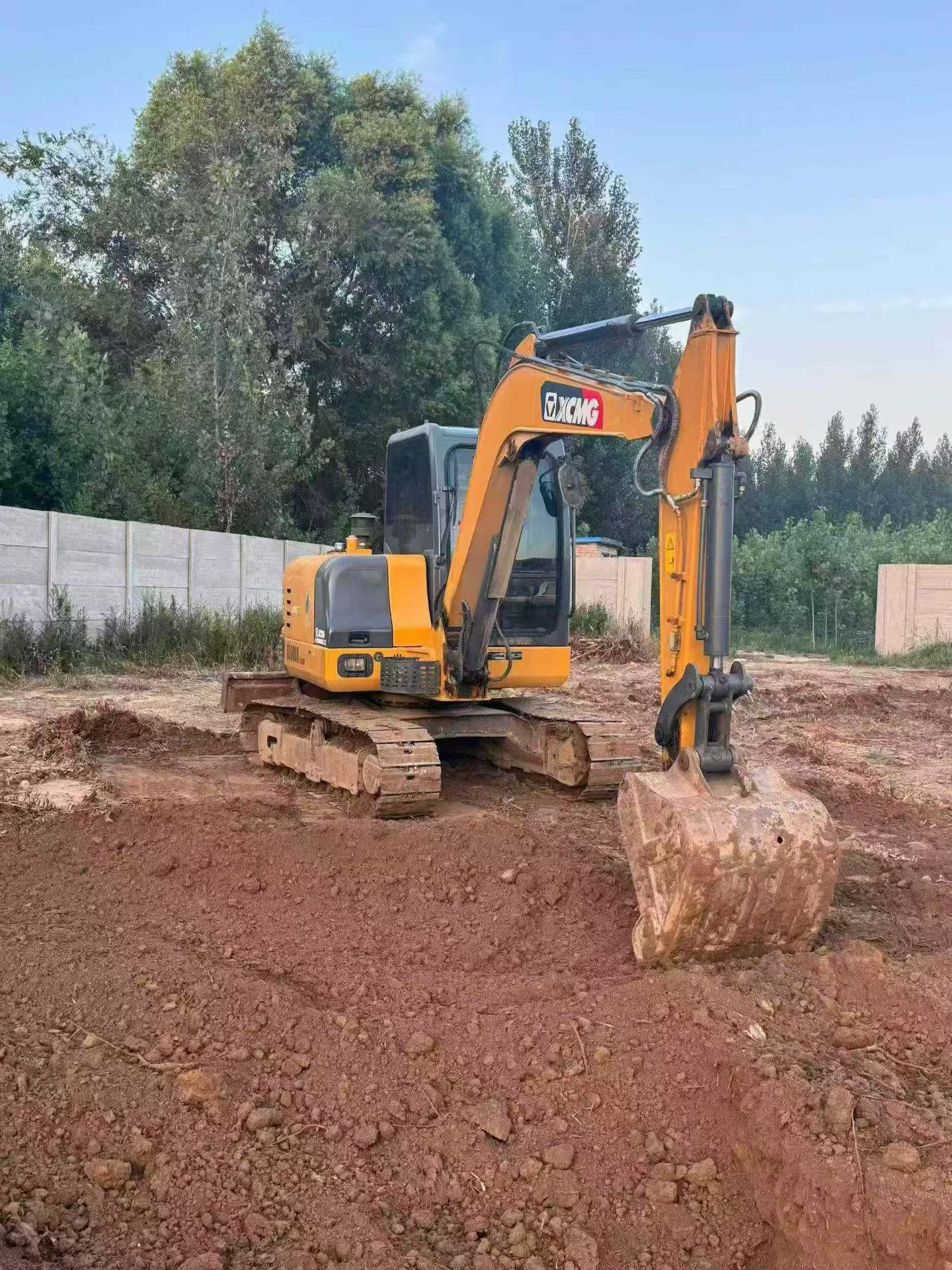

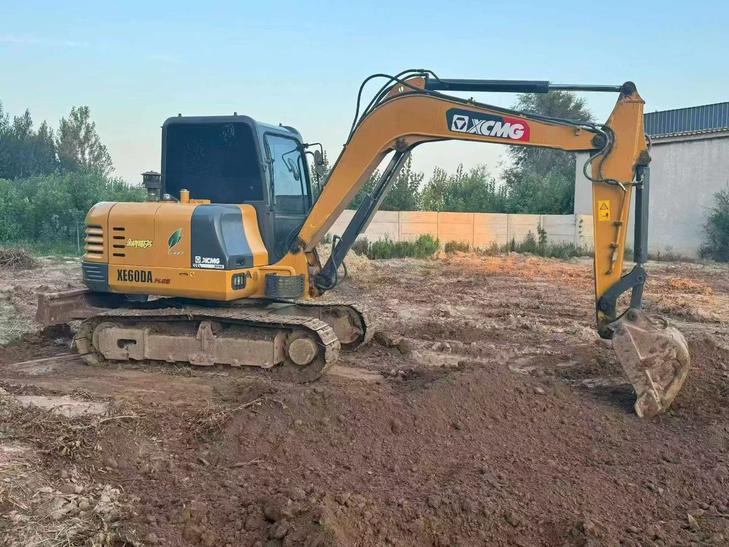

Discover the reliability and efficiency of the 2020 XCMG XE60WA, available in Hebei, China. This used excavator is in excellent condition, ensuring that it meets the high standards required for demanding industrial applications. The machine is known for its robust performance and powerful engine, which have been meticulously maintained, making it a trusted choice for your construction projects. Additionally, the air conditioning system is particularly effective, providing a comfortable operating environment even in the hottest conditions.
- Year: 2020
- Brand: XCMG
- Model: XE60WA
- Location: Hebei, China
- Condition: Excellent, with strong performance and reliable power
- Features: Highly effective air conditioning system
| Specifications | Value |
|---|---|
| No. | 1115238 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5900 |
| Bucket capacity (m³) | 0.23 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | YANMAR 4TNV98-EXPXG |
| Rated power (kw/rpm) | 41.5/2400 |
| Total displacement (L) | 3.319 |
| Maximum torque (N.m) | 201/1800 |
| Forward speed (Km/h) | 26.4/10.5 |
| Rotation speed (rpm) | 8.5 |
| Climbing ability (%) | 56 |
| Bucket digging force (kN) | 42.8 |
| Rod digging force (kN) | 25.8 |
| Minimum turning radius (m) | 4.69 |
| Maximum flow of main pump (l/min) | 2 x 60 |
| Main pump type | Two plunger pumps |
| Working Hydraulic Circuit (Mpa) | 22 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 120 |
| Total transport length (mm) | 6230 |
| Total transport width (mm) | 1925 |
| Total transport height (mm) | 2850 |
| Counterweight ground clearance (mm) | 970 |
| Wheelbase (mm) | 2100 |
| Wheel base (mm) | 1600 |
| Minimum ground clearance (mm) | 290 |
| Back end turning radius (mm) | 1665 |
| Onboard width (mm) | 1925 |
| Maximum digging radius (mm) | 6120 |
| Maximum excavation radius (mm) | 5910 |
| Maximum digging depth (mm) | 3520 |
| Maximum excavation height (mm) | 5830 |
| Maximum unloading height (mm) | 4240 |
| Maximum vertical digging depth (mm) | 2400 |
| Maximum digging depth (mm) | 3520 |
| Dodging plate width × height (mm) | 390 (height) |
