Product Description

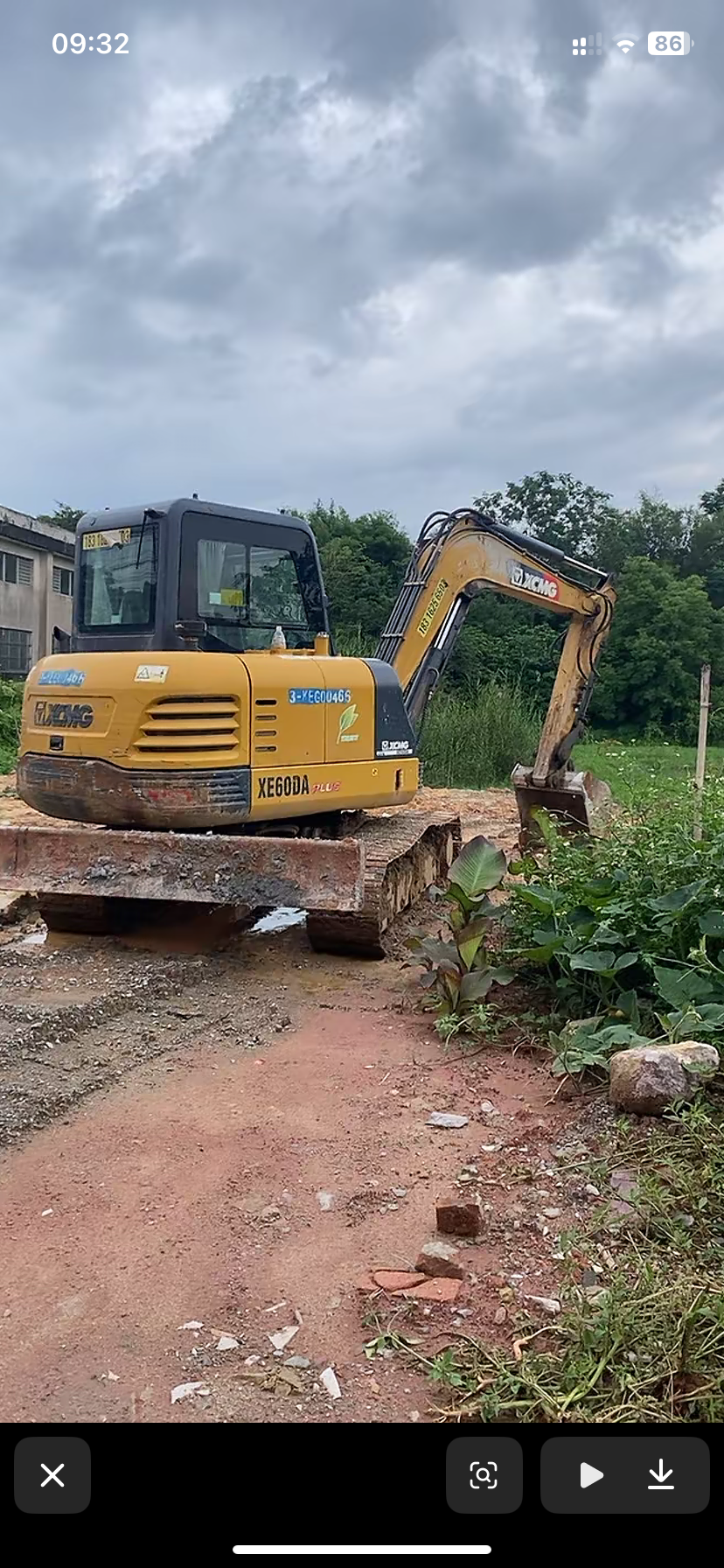

Well-maintained 2021 XCMG XE60WA wheeled excavator available from Guangdong, China. This privately-owned machine was manufactured in March 2021 and has accumulated 5,000 operational hours under single ownership. The unit benefits from diligent maintenance practices and features an upgraded hydraulic oil filtration system for enhanced component protection and extended service life.
The XCMG XE60WA combines the versatility of wheeled mobility with reliable excavation performance, making it suitable for urban construction, municipal works, and infrastructure projects requiring frequent repositioning. This compact excavator offers efficient fuel consumption and maneuverability in confined work sites.
- Manufacturing Date: March 2021

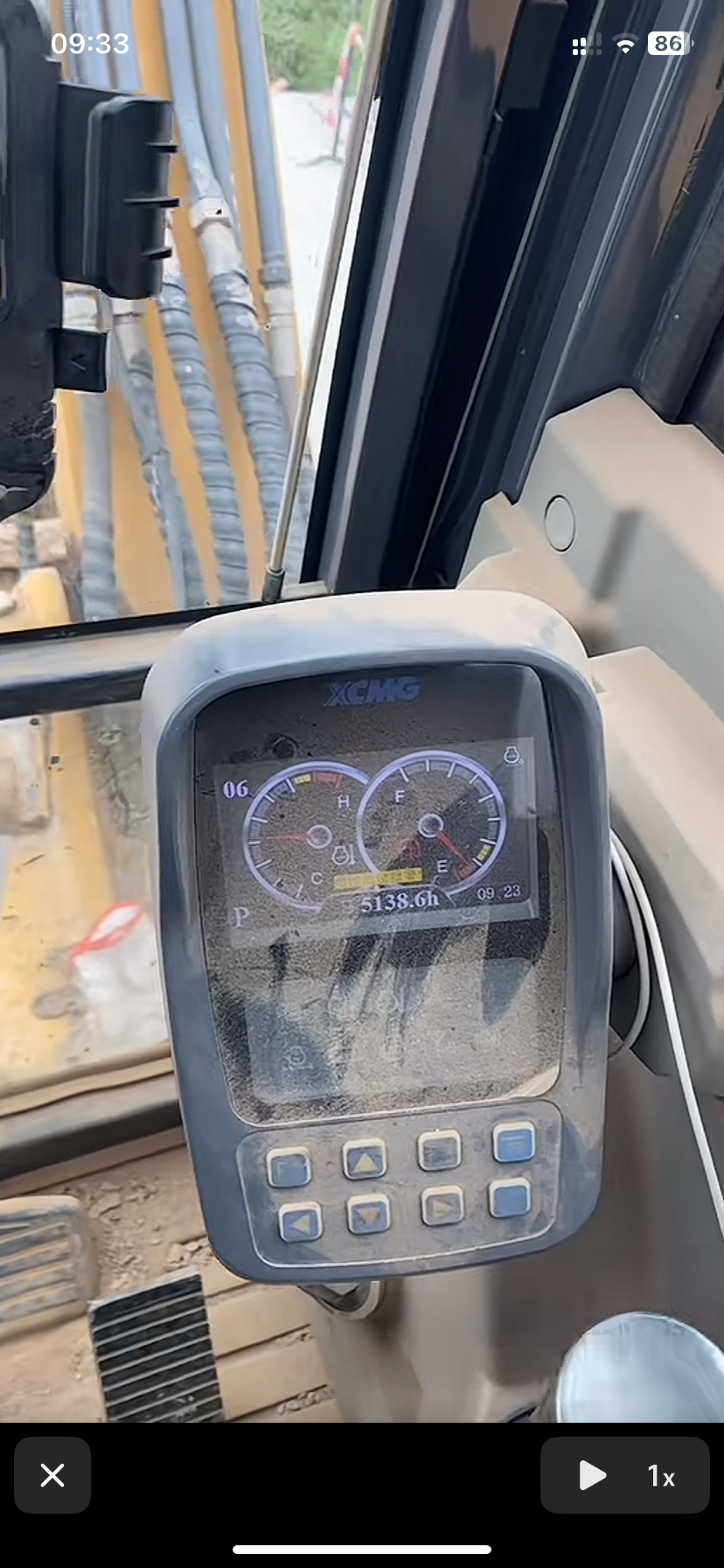

- Operating Hours: 5,000
- Ownership: Private, single owner
- Condition: Well-maintained
- Enhancement: Hydraulic oil filtration system installed
- Current Location: Guangdong Province, China
Direct sale from owner. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1088522 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5900 |
| Bucket capacity (m³) | 0.23 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | YANMAR 4TNV98-EXPXG |
| Rated power (kw/rpm) | 41.5/2400 |
| Total displacement (L) | 3.319 |
| Maximum torque (N.m) | 201/1800 |
| Forward speed (Km/h) | 26.4/10.5 |
| Rotation speed (rpm) | 8.5 |
| Climbing ability (%) | 56 |
| Bucket digging force (kN) | 42.8 |
| Rod digging force (kN) | 25.8 |
| Minimum turning radius (m) | 4.69 |
| Maximum flow of main pump (l/min) | 2 x 60 |
| Main pump type | Two plunger pumps |
| Working Hydraulic Circuit (Mpa) | 22 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 120 |
| Total transport length (mm) | 6230 |
| Total transport width (mm) | 1925 |
| Total transport height (mm) | 2850 |
| Counterweight ground clearance (mm) | 970 |
| Wheelbase (mm) | 2100 |
| Wheel base (mm) | 1600 |
| Minimum ground clearance (mm) | 290 |
| Back end turning radius (mm) | 1665 |
| Onboard width (mm) | 1925 |
| Maximum digging radius (mm) | 6120 |
| Maximum excavation radius (mm) | 5910 |
| Maximum digging depth (mm) | 3520 |
| Maximum excavation height (mm) | 5830 |
| Maximum unloading height (mm) | 4240 |
| Maximum vertical digging depth (mm) | 2400 |
| Maximum digging depth (mm) | 3520 |
| Dodging plate width × height (mm) | 390 (height) |
