Product Description

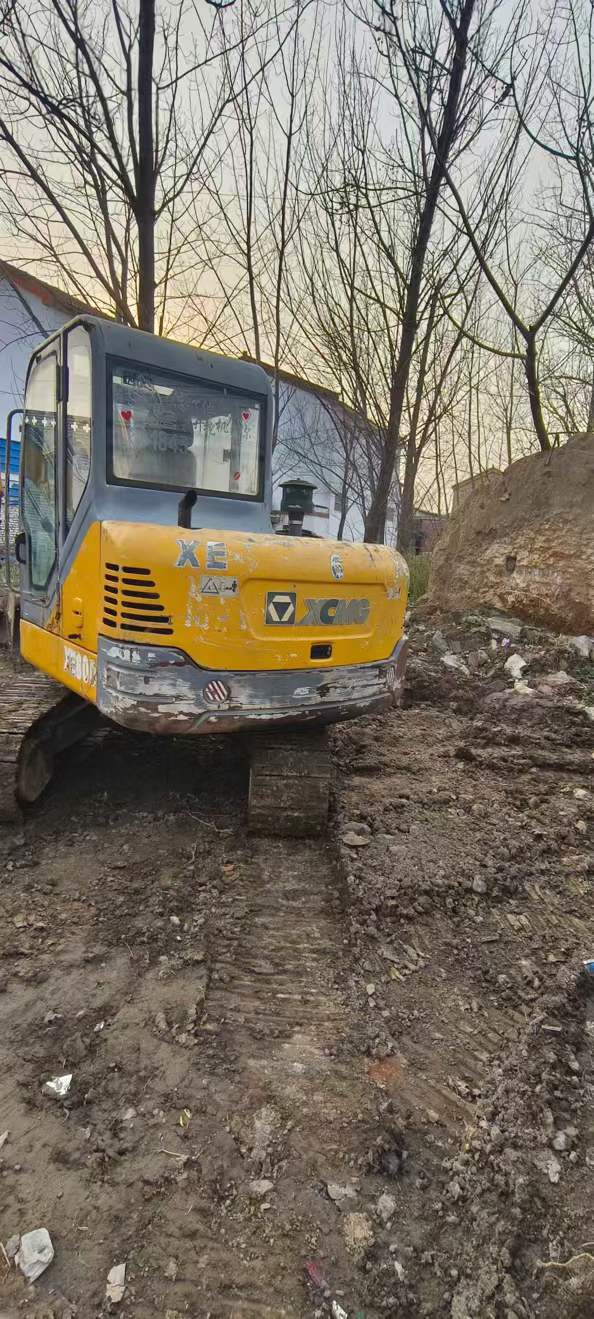

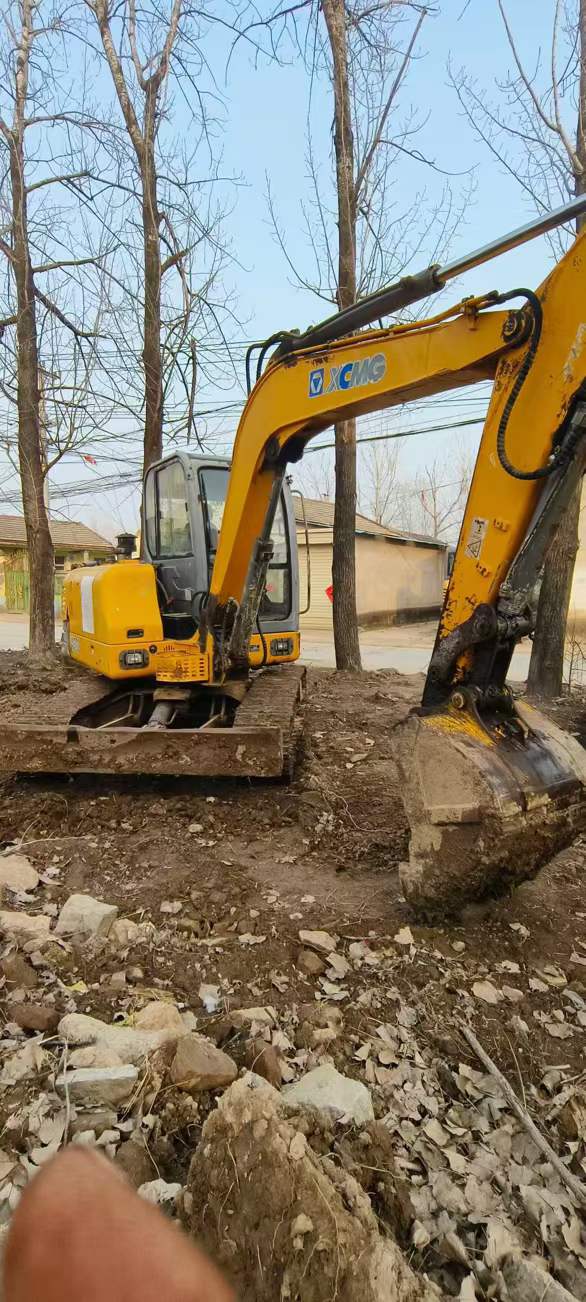

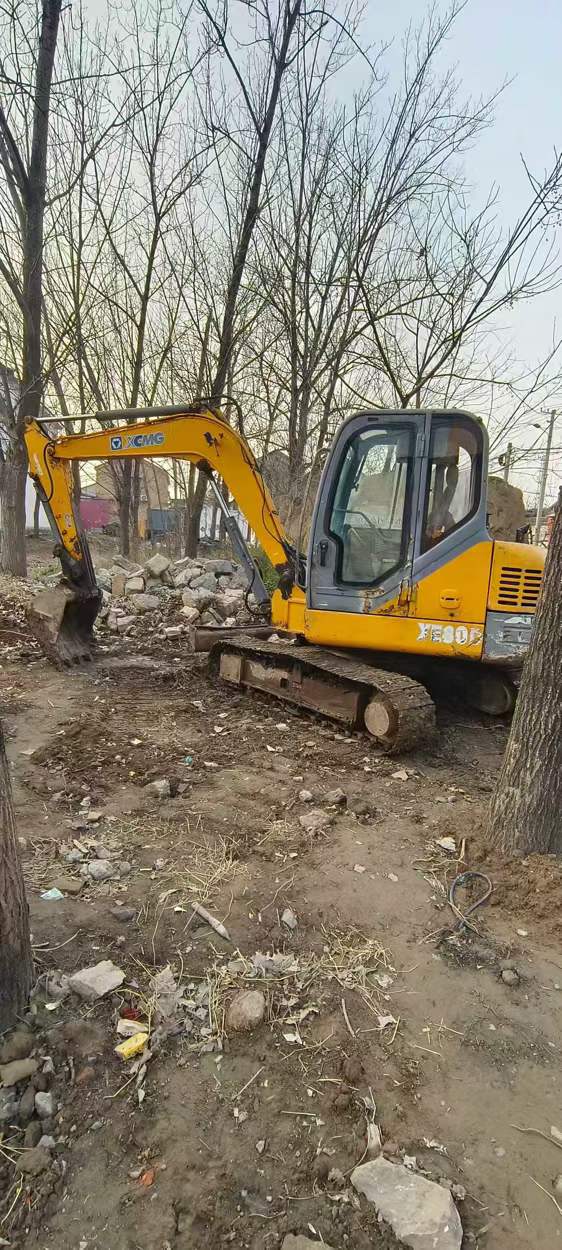

Proven in demanding construction environments since 2013, this XCMG XE65D mini excavator delivers reliable 6-ton class performance backed by China's most established heavy equipment manufacturer. Powered by a robust Yanmar 4TNV94L engine producing 39.8kW, this compact machine combines exceptional digging force (48.3kN bucket, 32.5kN arm) with a maximum reach of 6,130mm and digging depth of 3,830mm—ideal for utility work, landscaping, and confined-space applications.
XCMG ownership advantages in the used market include:
- Global parts network ensures minimal downtime and competitive service costs
- Strong resale value retention compared to lesser-known brands

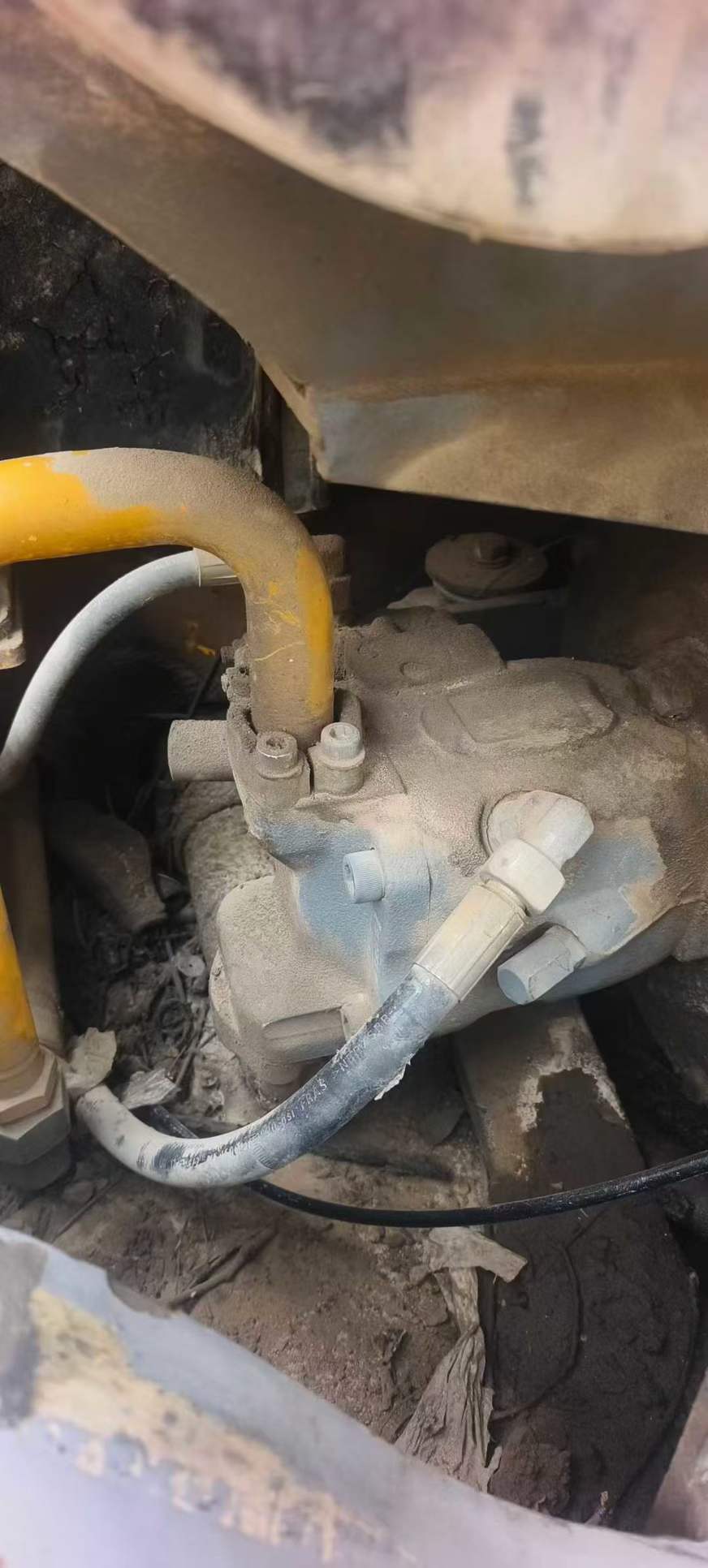

- Proven Rexroth/Kawasaki hydraulic systems with readily available components
- Factory support continues for legacy models with comprehensive technical documentation
- Wide dealer network across Asia, Africa, and emerging markets
Currently located in Xuzhou, Jiangsu—XCMG's manufacturing headquarters—this XE65D features standard hydraulic crushing lines, dual-speed travel (4.2/2.2 km/h), and compact transport dimensions (5,860mm length). Water-cooled reliability meets practical 110L fuel capacity for extended operatio
| Specifications | Value |
|---|---|
| No. | 1026044 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

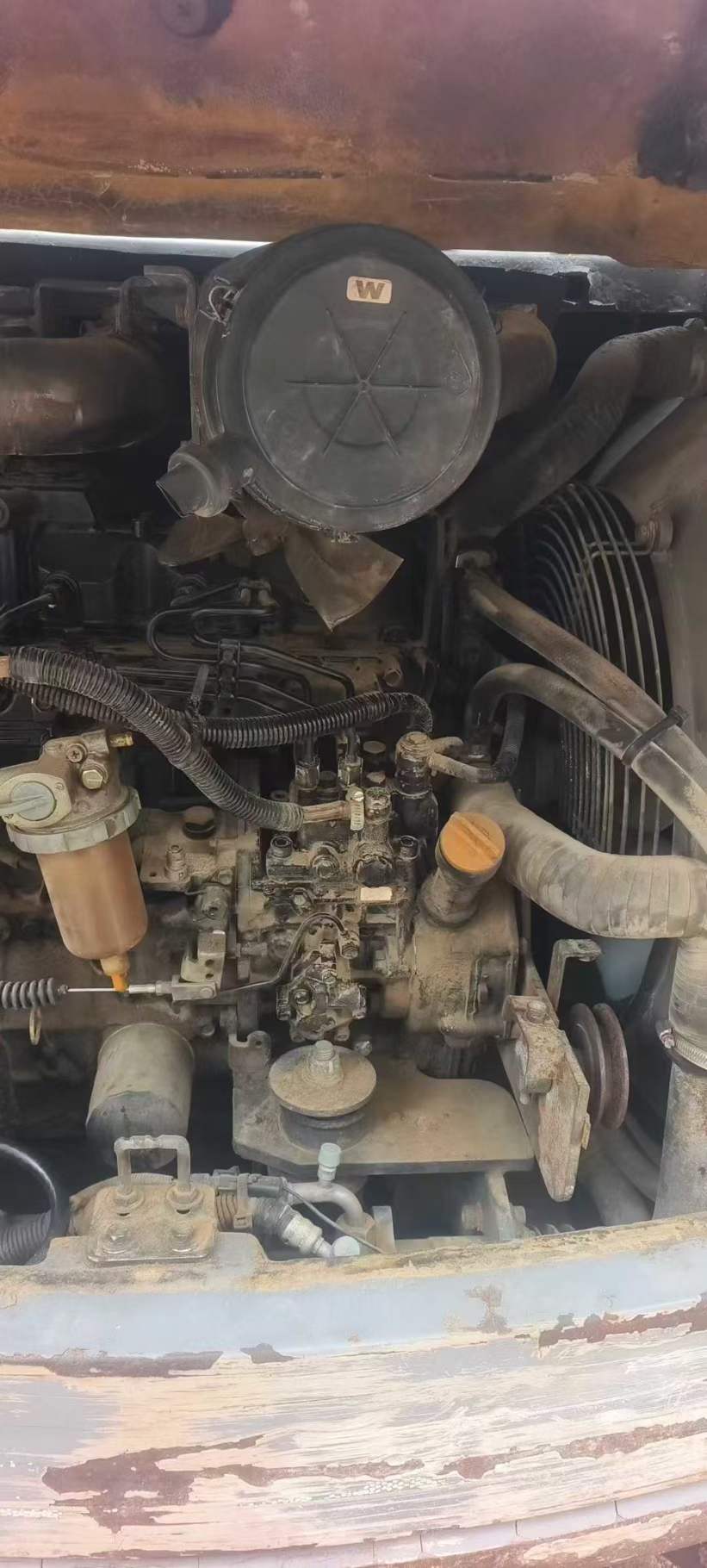

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |

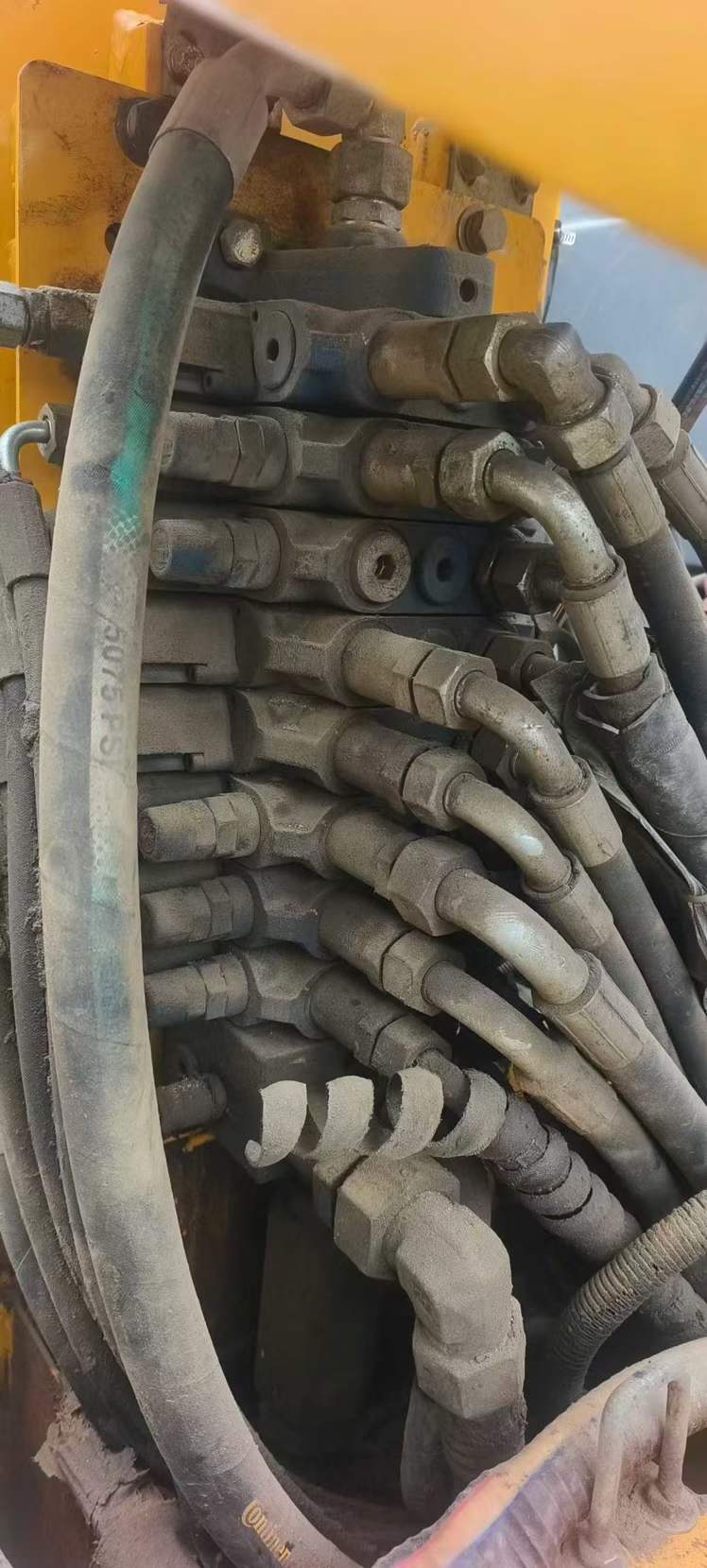

| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
