Product Description

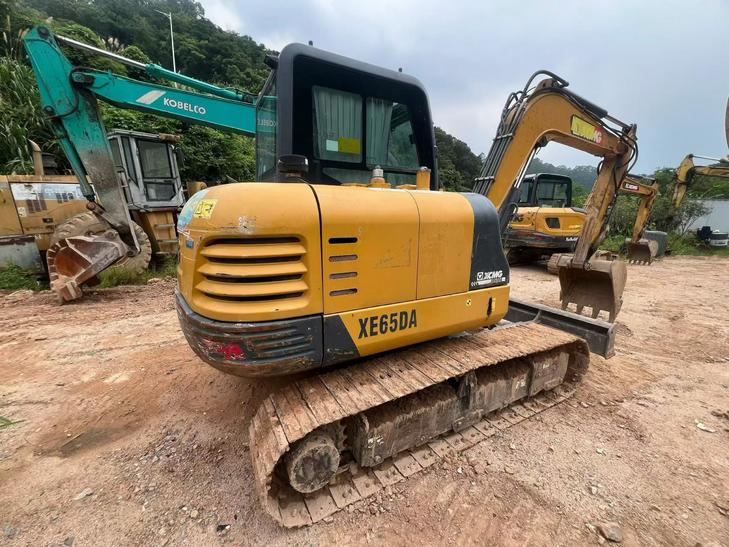

Discover the 2020 XCMG XE65D, a robust and versatile excavator available in Guangdong, China. This machine is designed for efficiency and reliability, making it an excellent choice for various construction and excavation projects. Known for its powerful performance, the XE65D features a 60-ton class body with an 80-ton class hydraulic pump, ensuring both strength and precision in operation.
- Year: 2020
- Brand: XCMG
- Model: XE65D
- Location: Guangdong, China
With its robust design and high-performance capabilities, the XE65D is ready to tackle demanding tasks. Whether you need brute force or fine control, this excavator delivers the power and maneuverability required for your job site. Ideal for contractors and construction firms looking for a dependable and efficient machine.
| Specifications | Value |
|---|---|
| No. | 1086590 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6200 |
| Bucket capacity (m³) | 0.09-0.25 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 24.5 |
| Maximum flow of main pump (l/min) | 138/143 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexley/Ogail |
| Working Hydraulic Circuit (Mpa) | 22 |
| Pilot Oil Circuit (MPa) | 2.6 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 2000/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1660 |
| Track gauge (mm) | 1600/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 2053/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 2000*365/1920*340 |
