Product Description

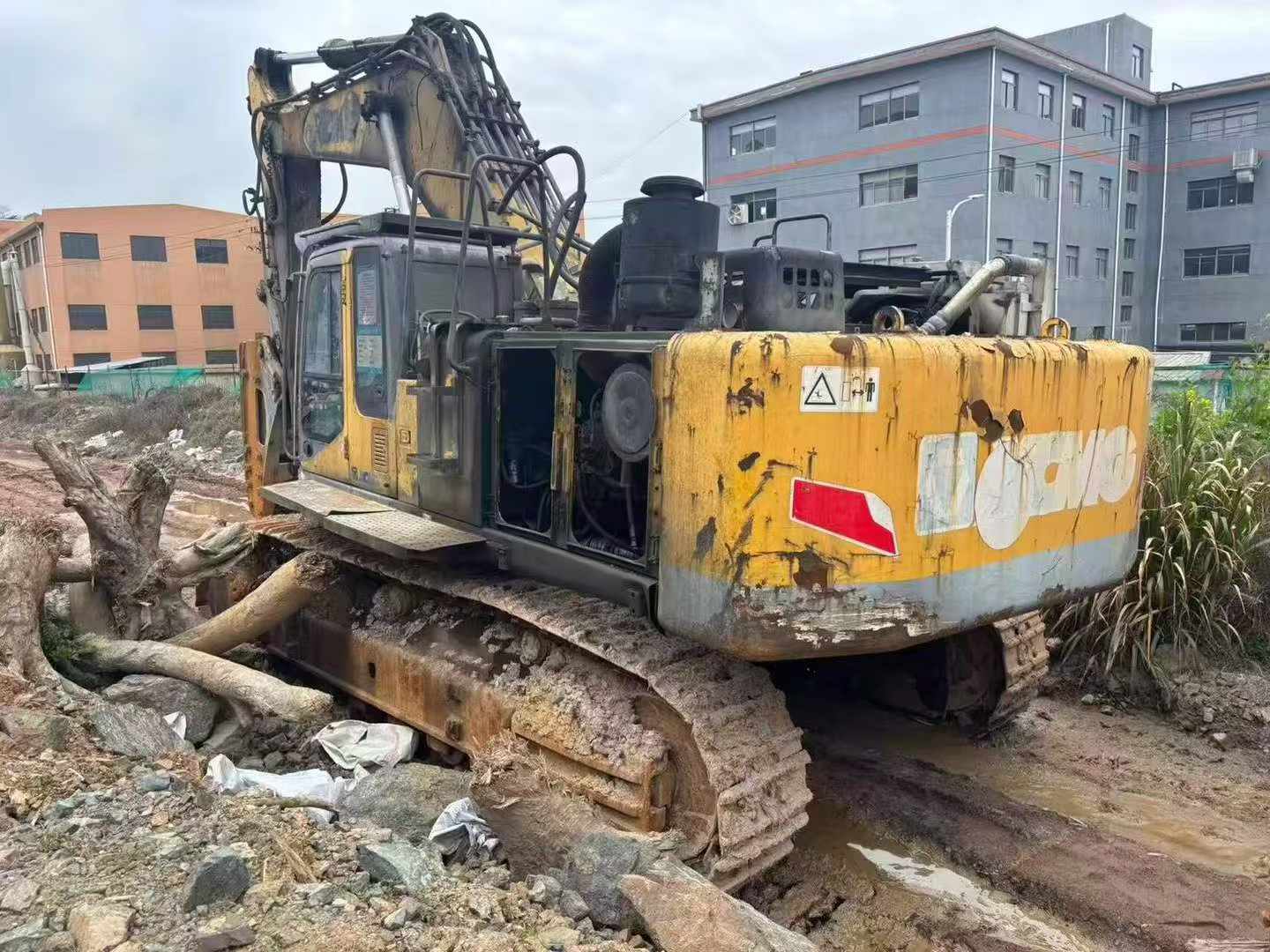

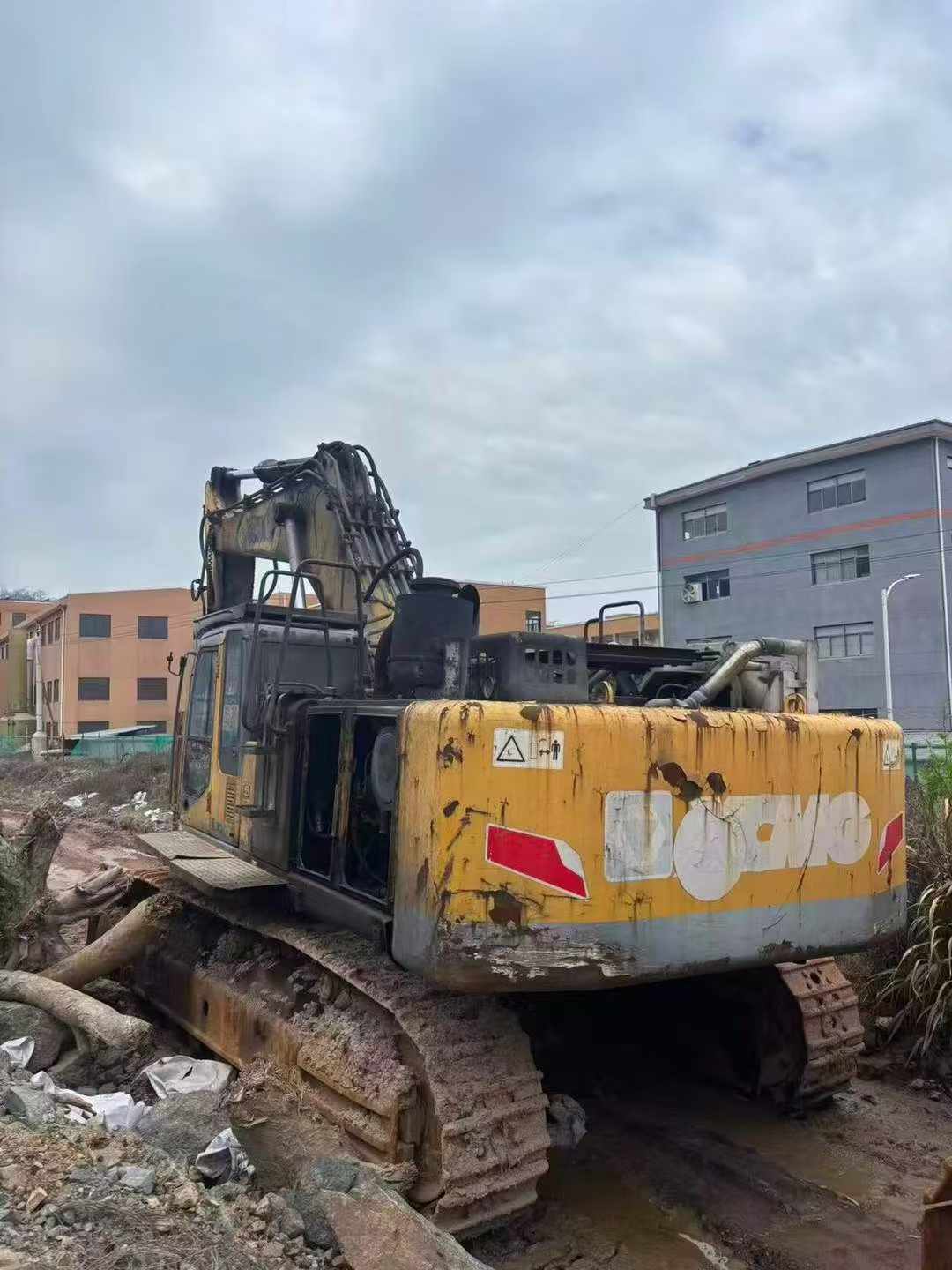

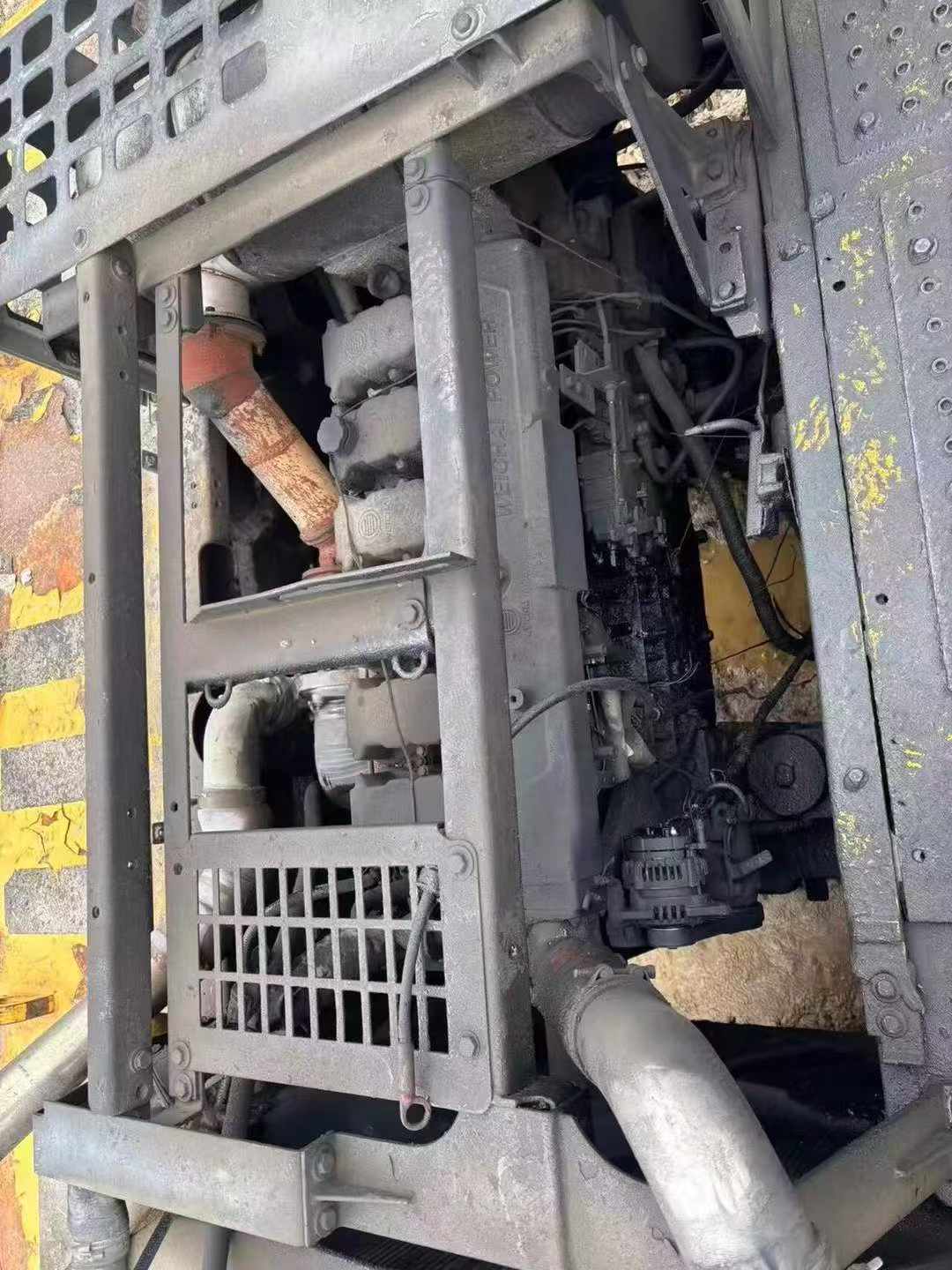

Engineered for maximum productivity, this 2016 XCMG XE700C delivers 70-ton performance through precision-built hydraulics and proven power systems. Equipped with a CUMMINS QSX15 turbocharged engine producing 336kW at 1800rpm, this excavator combines robust digging force with efficient fuel management across demanding job sites.

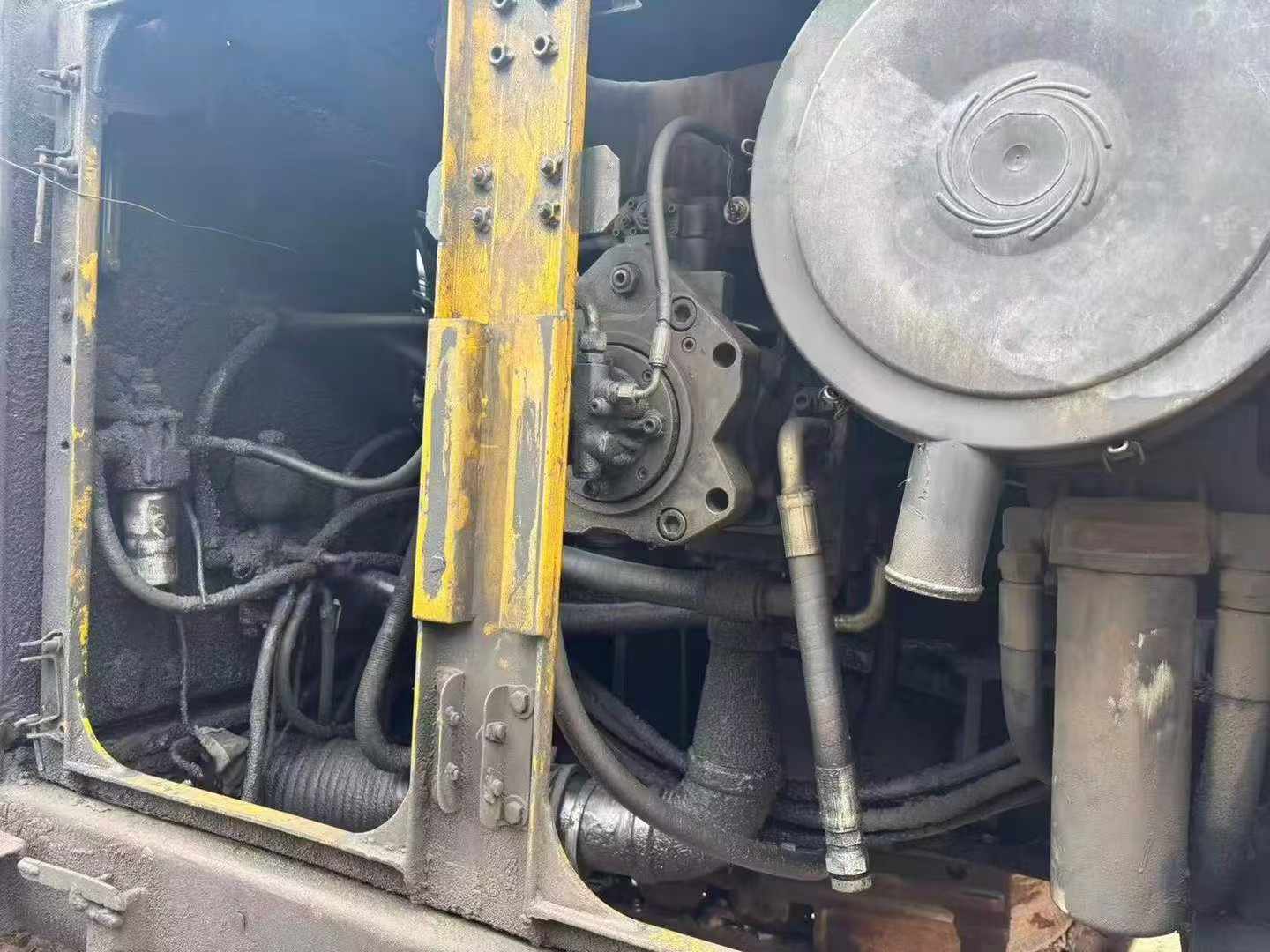

Dual plunger pumps supply 2×450 L/min flow capacity, generating 370kN bucket digging force and 330kN arm digging force—specifications that translate to faster cycle times and superior material handling in mining and heavy construction applications. The water-cooled 6-cylinder engine with 15L displacement maintains consistent performance under sustained loads, while the 3.1-3.5m³ bucket capacity optimizes payload efficiency.
Key technical specifications include:
- Maximum digging reach: 11,580mm with 6,900mm depth capability
- Operating weight: 68,000kg with 99.1kPa ground pressure distribution
- Main system pressure: 34.3MPa for responsive control
- Travel speed: 4.2km/h for rapid repositioning
- 980L fuel capacity supporting extended operation cycles
Currently located in Zhejiang, this Xuzhou-manufactured machine represents XCMG's commitme
| Specifications | Value |
|---|---|
| No. | 1035660 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 68000 |
| Bucket capacity (m³) | 3.1-3.5 |
| Boom length (mm) | 6600 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CUMMINS QSX15 |
| Rated power (kw/rpm) | 336/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 99.1 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 370 |
| Rod digging force (kN) | 330 |
| Travel speed (km/h) | 4.2/3.0 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*450 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 980 |
| Hydraulic Tank (L) | 455 |
| Engine Oil changes (L) | 48 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 4280 |
| Total transport height (mm) | 4700 |
| Counterweight ground clearance (mm) | 1552 |
| Minimum ground clearance (mm) | 853 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3900 |
| Track gauge (mm) | 2800/3350 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4680 |
| Maximum digging radius (mm) | 11580 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 11350 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 5500 |
