Product Description

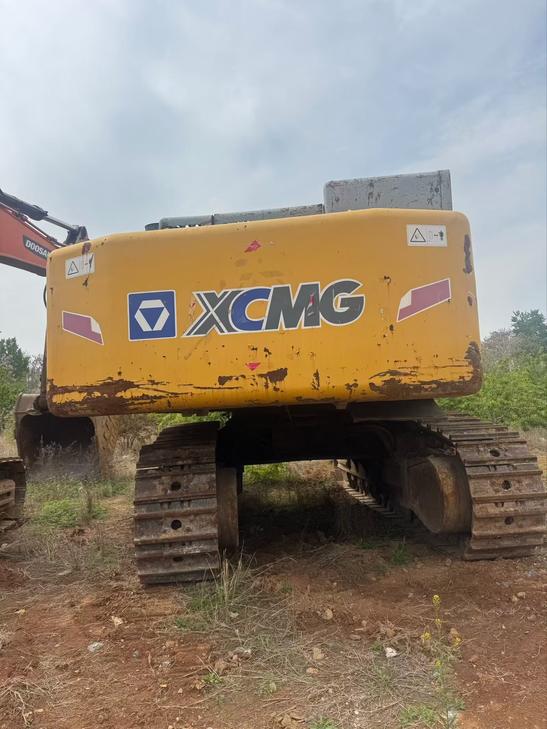

Built for high-output earthmoving, the 2020 XCMG XE700C is a 70-ton hydraulic excavator offered directly from Shandong, China — inspected, documented, and ready for immediate deployment on your next project. Powered by a Cummins QSX15 engine producing 336 kW, this machine delivers the raw force needed for large-scale digging, mass excavation, demolition, and heavy grading operations without compromise.
At the core of its performance: a 370 kN bucket digging force paired with a 3.1–3.5 m³ backhoe bucket, enabling aggressive material handling in hard ground conditions. With a maximum digging depth of 6,900 mm and a reach of 11,580 mm, it covers the working envelope required on quarry faces, highway cuts, and foundation work.
- Engine: Cummins QSX15 — 6-cylinder, 15L displacement, 336 kW @ 1,800 rpm, water-cooled, turbocharged
- Operating Weight: 68,000 kg | Bucket Capacity: 3.1–3.5 m³
- Max Digging Depth: 6,900 mm | Max Digging Radius: 11,580 mm
- Bucket Digging Force: 370 kN | Arm Digging Force: 330 kN
- Main Pump: Dual plunger pumps, 2 × 450 L/min | System Pressure: 31.4/34.3 MPa
- Fuel Tank: 980 L | Hydraulic Tank: 455 L
- Travel Speed: 4.2 / 3.0 km/h | Gradeability: 30°
- Transport Dimensions: 11,940 × 4,280 × 4,700 mm
Sourced from Shandong, China, this unit is available for export with full technical documentation. Contact Fair Trade Machinery for inspection reports, shipping options, and pricing.
| Specifications | Value |
|---|---|
| No. | 1077307 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 68000 |
| Bucket capacity (m³) | 3.1-3.5 |
| Boom length (mm) | 6600 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | CUMMINS QSX15 |
| Rated power (kw/rpm) | 336/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 99.1 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 370 |
| Rod digging force (kN) | 330 |
| Travel speed (km/h) | 4.2/3.0 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*450 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 980 |
| Hydraulic Tank (L) | 455 |
| Engine Oil changes (L) | 48 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 4280 |
| Total transport height (mm) | 4700 |
| Counterweight ground clearance (mm) | 1552 |
| Minimum ground clearance (mm) | 853 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3900 |
| Track gauge (mm) | 2800/3350 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4680 |
| Maximum digging radius (mm) | 11580 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 11350 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 5500 |
