Product Description

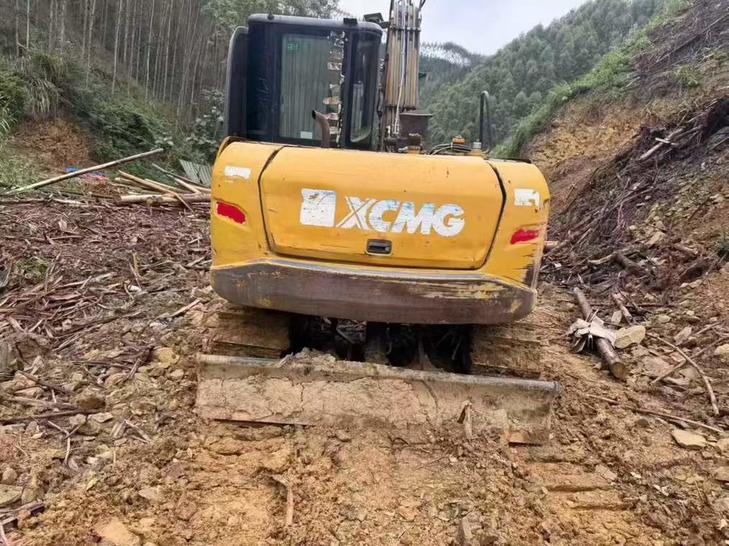

Engineered with precision hydraulics and robust mechanical design, this 7-ton excavator delivers professional-grade performance for medium-duty applications. Powered by a V2607 engine generating 43kW at 2000 rpm and 255.8 N·m maximum torque, the XE75C combines fuel efficiency with reliable power delivery across demanding worksites.
Hydraulic performance sets this model apart: a 160 L/min main pump flow rate drives exceptional digging forces of 57kN (bucket) and 38kN (arm), while maintaining precise control through a 10 rpm rotation speed. The 0.30m³ backhoe bucket operates within an impressive working envelope—6260mm maximum reach, 4020mm digging depth, and 7085mm excavation height.
Key technical specifications include:
- Operating weight: 7450kg with optimized 33.5kPa ground pressure
- Dual-speed travel: 5.4/2.9 km/h for versatility
- 130L fuel capacity and 115L hydraulic tank for extended operation
- Compact transport dimensions: 6150mm × 2230mm × 2685mm
- Maximum tractive force: 68.32kN
Currently located in Fujian Ningde, China. XCMG's proven manufacturing quality ensures durability and consistent performance in construction, utility, and excavation projects wo
| Specifications | Value |
|---|---|
| No. | 1020906 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
