Product Description

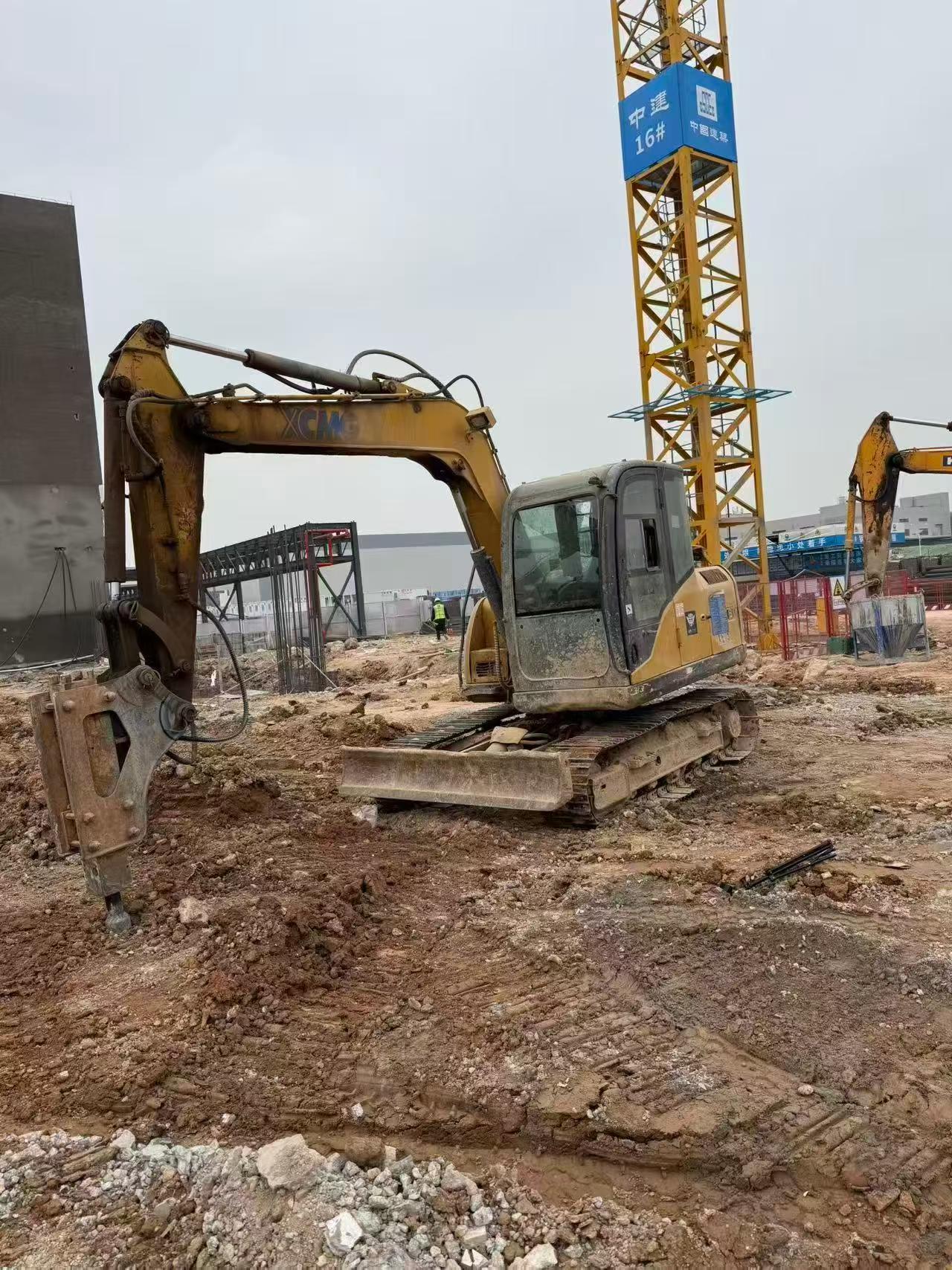

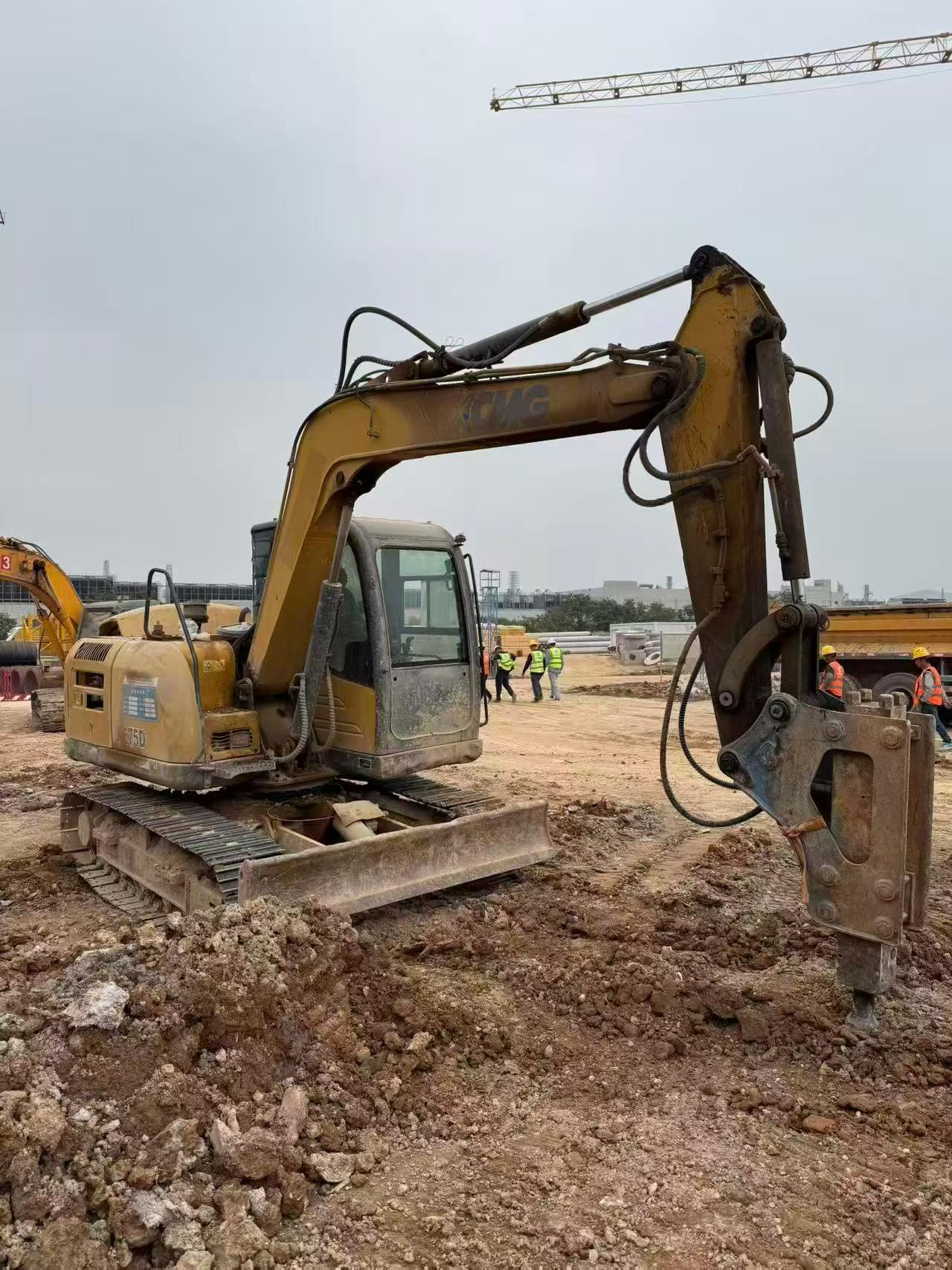

Designed for precision and control, this 2017 XCMG XE75C mini excavator delivers reliable performance across construction and utility projects. Weighing 7,450 kg with a 0.30 m³ bucket capacity, this 7-ton machine combines compact dimensions with robust digging capability. Powered by a V2607 engine producing 43 kW at 2,000 rpm and 255.8 N·m of torque, operators benefit from responsive hydraulics and consistent power delivery throughout the working range.
Cabin ergonomics prioritize all-day comfort and operational awareness. Excellent sight lines to the bucket and trenching area reduce blind spots, while intuitive controls support accurate positioning during close-quarter work. Stability remains assured thanks to 33.5 kPa ground pressure distribution and a low center of gravity, enabling confident operation on uneven terrain.
- Maximum digging depth: 4,020 mm
- Maximum digging radius: 6,260 mm
- Bucket digging force: 57 kN
- Main pump flow: 160 L/min
- Transport dimensions: 6,150 × 2,230 × 2,685 mm
- Fuel capacity: 130 L
- Currently located in Maoming, Guangdong
Ready for immediate deployment in landscaping, utility installation, or site preparation applicati
| Specifications | Value |
|---|---|
| No. | 1030640 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
