Product Description
Built in 2018, this XCMG XE75C mini excavator delivers proven performance backed by one of China's most established heavy equipment manufacturers. Operating at 7 tons with a 43kW rated power output and 0.30 m³ bucket capacity, this machine handles urban construction, landscaping, and utility work with consistent reliability. Currently located in Hangzhou, Zhejiang, it features a robust V2607 engine producing 255.8 N.m maximum torque, ensuring dependable operation across demanding jobsites.
XCMG's global distribution network guarantees straightforward parts availability and service support, critical factors when purchasing used equipment. With a maximum digging depth of 4,020mm and digging radius of 6,260mm, the XE75C maintains competitive performance specifications while offering superior resale value compared to lesser-known brands. The hydraulic system flows 160 l/min through the main pump, providing responsive control for precision work.
Key Specifications:
- Working Weight: 7,450 kg | Engine: V2607, 43kW @ 2,000 rpm
- Bucket Digging Force: 57 kN | Maximum Digging Depth: 4,020 mm
- Fuel Capacity: 130L | Hydraulic Tank: 115L
- Transport Dimensions: 6,150 × 2,230 × 2,
| Specifications | Value |
|---|---|
| No. | 1025178 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

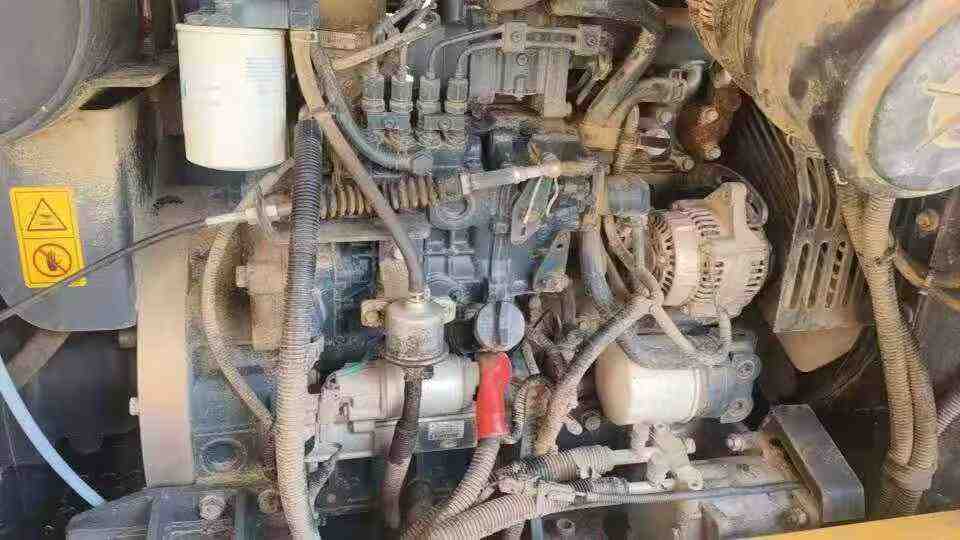

| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |

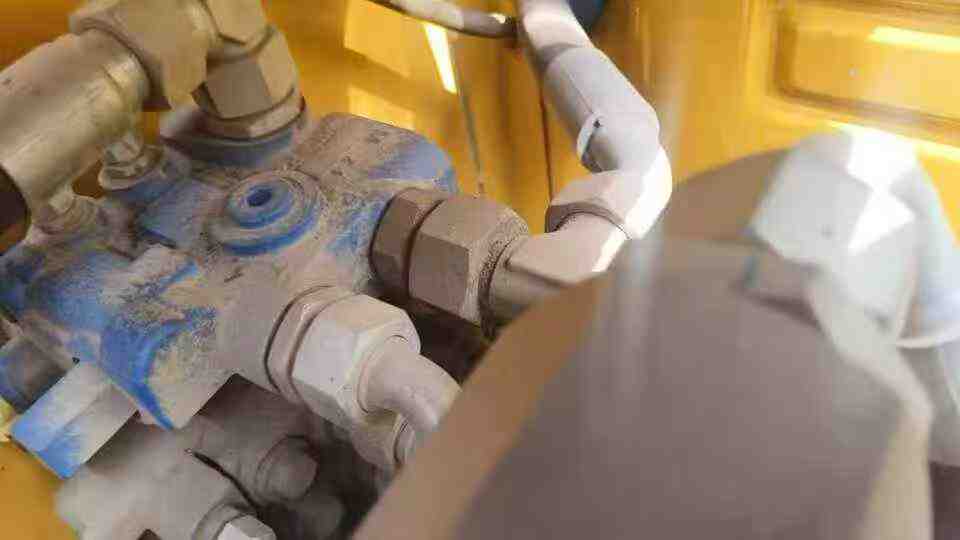

| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
