Product Description

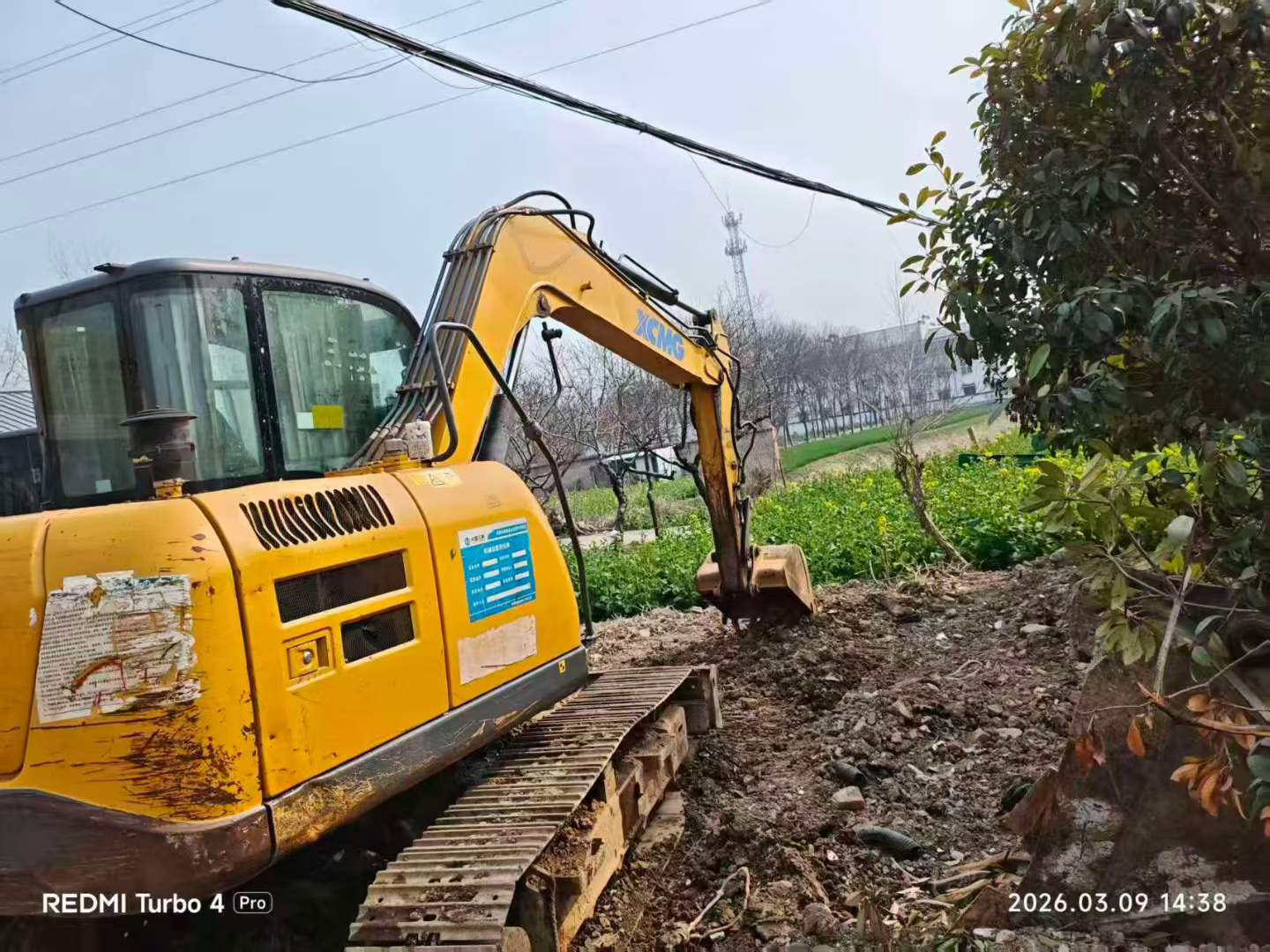

Built in 2018, this XCMG XE75C mini excavator delivers proven performance with the backing of one of China's most established heavy equipment manufacturers. Operating at 7 tons with a 7,450 kg working weight, this compact machine combines a 0.30 m³ bucket capacity with impressive reach—6,260 mm maximum digging radius and 4,020 mm digging depth make it ideal for urban construction, utility work, and confined jobsites.

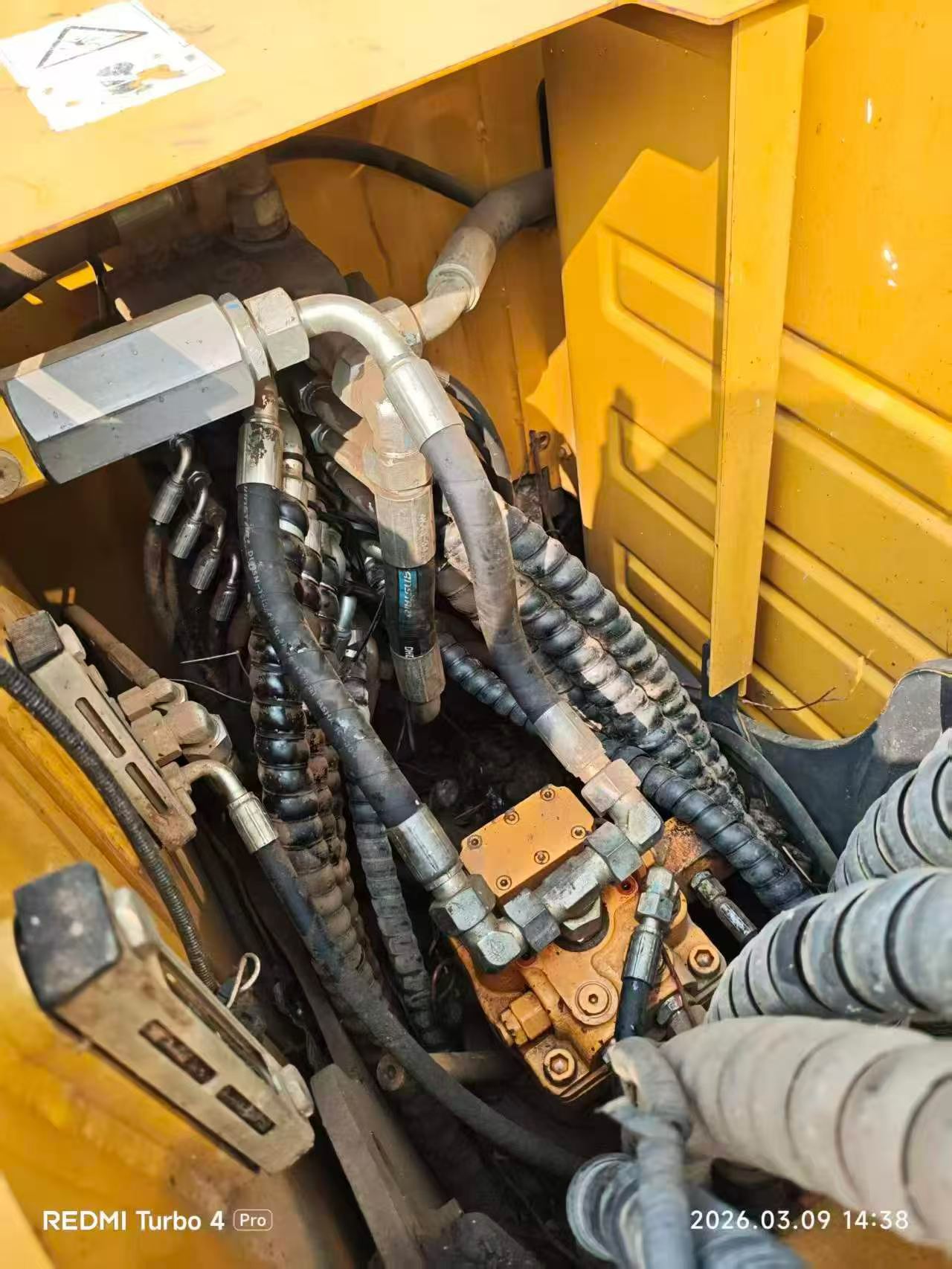

Powered by a reliable V2607 engine generating 43 kW at 2,000 rpm, this unit provides 57 kN bucket digging force and 68.32 kN maximum tractive force. XCMG's extensive global dealer network ensures parts availability and technical support remain accessible long after purchase, protecting your investment. With transport dimensions of 6,150 mm length and competitive fuel efficiency from its 130-liter tank, this Jiangsu-based excavator offers strong resale value thanks to XCMG's reputation for durability and consistent aftermarket demand. Hydraulic system features a 160 l/min main pump flow with 115-liter tank capacity for sustained operation.
| Specifications | Value |
|---|---|
| No. | 1027234 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
