Product Description

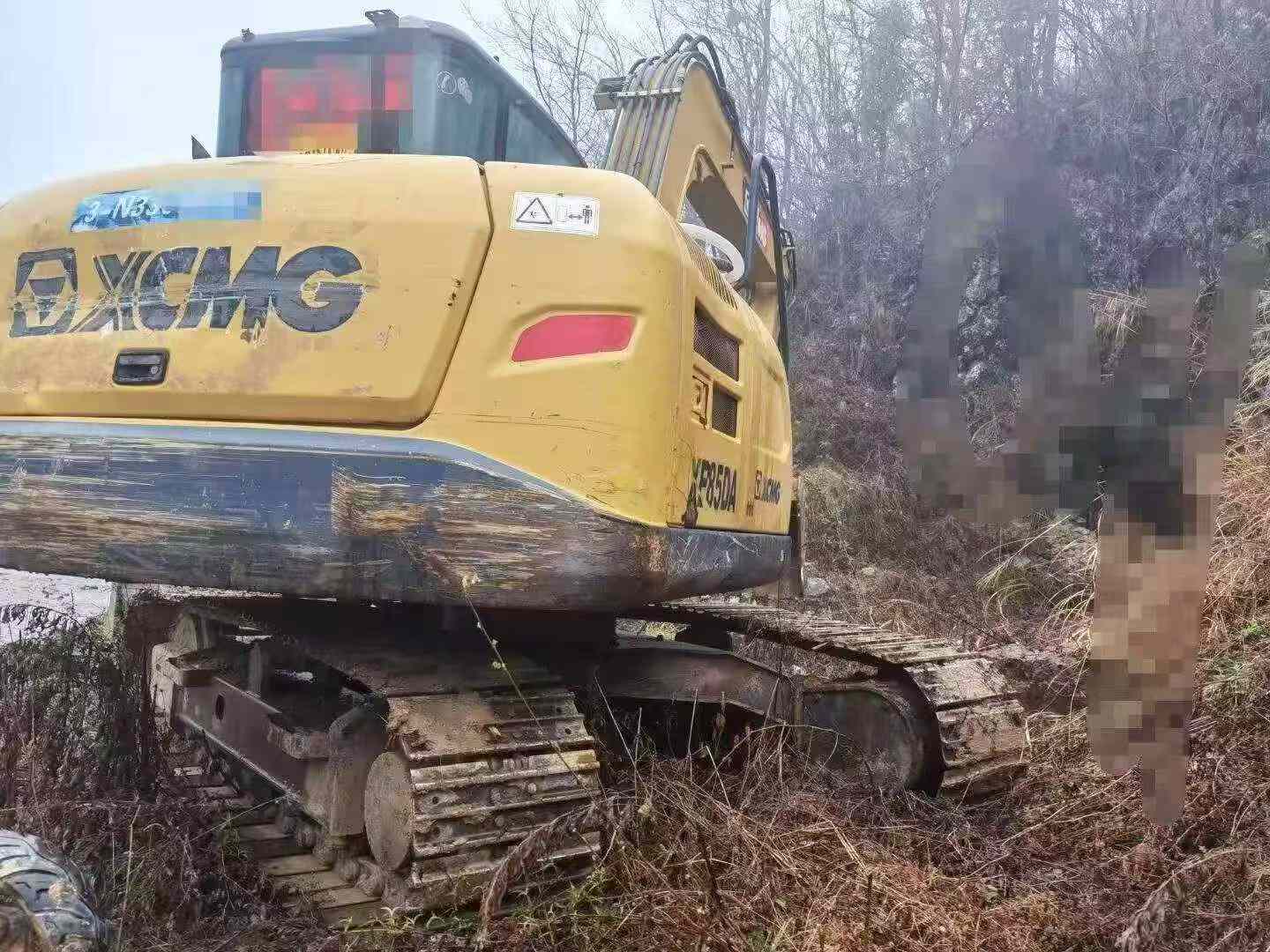

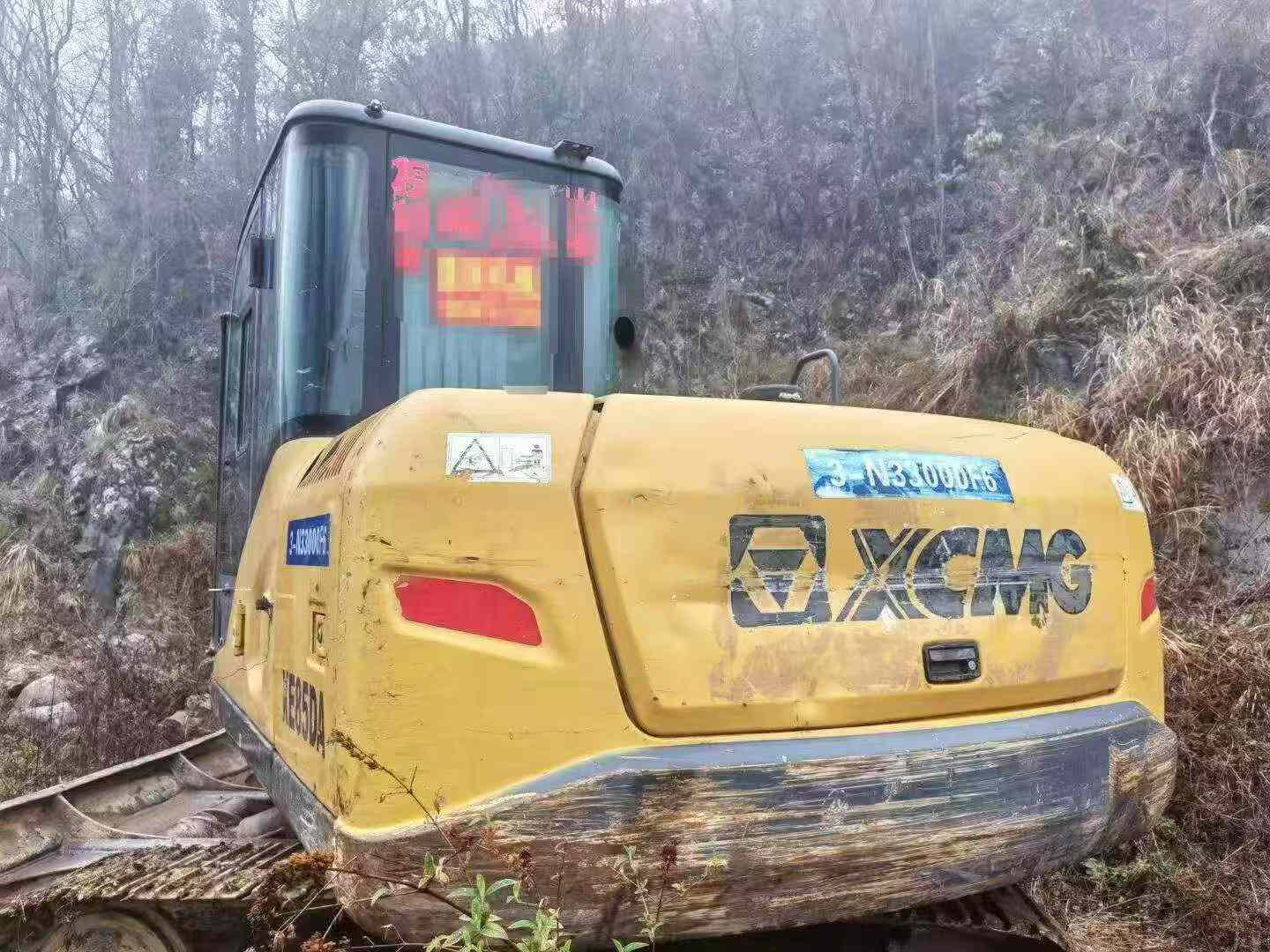

With a working weight of 7450 kg and a bucket capacity of 0.30 m³, the 2019 XCMG XE75C excavator stands as a testament to robust engineering and durability. Located in 四川泸州, this 7-ton machine is powered by a reliable V2607 engine, delivering 43 kW at 2000 rpm. Its maximum torque of 255.8 N.m from 1400-1800 rpm ensures efficient performance on tough jobs. Built to last, the XE75C boasts a ground specific pressure of 33.5 Kpa, making it suitable for various terrains. The backhoe bucket, with a digging force of 57 kN, and a rod digging force of 38 kN, handles demanding tasks with ease. Traveling at speeds up to 5.4 km/h, this proven workhorse offers a maximum digging radius of 6260 mm and a depth of 4020 mm. Ideal for construction and excavation projects, the XE75C is a reliable choice for those who demand consistent, high-quality performance.
| Specifications | Value |
|---|---|
| No. | 1020846 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
