Product Description

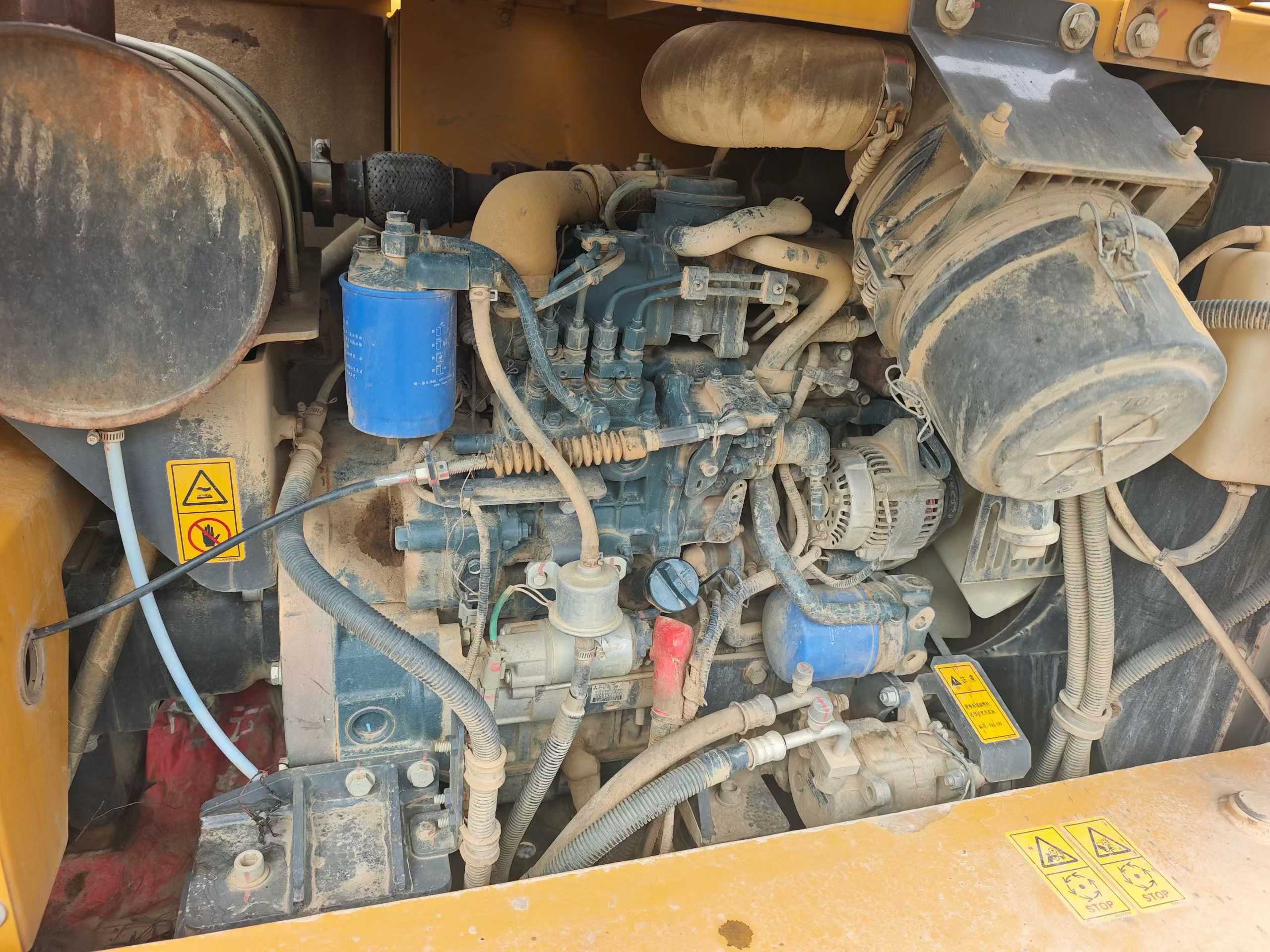

Available now in Guangxi, this 2020 XCMG XE75C mini excavator delivers immediate deployment without factory lead times. Powered by a reliable V2607 engine producing 43kW at 2000rpm, this 7-ton workhorse combines compact dimensions with robust performance for infrastructure projects, utility work, and commercial construction across South China and ASEAN markets.
Engineered for productivity, the XE75C features a 0.30m³ backhoe bucket backed by 57kN bucket digging force and 38kN stick digging force. Maximum digging depth reaches 4020mm with a 6260mm working radius, while the 160L/min hydraulic flow ensures responsive cycle times. Compact transport dimensions of 6150mm × 2230mm × 2685mm facilitate rapid site-to-site mobilization throughout the region.
- Working Weight: 7450kg with 33.5kPa ground pressure
- Maximum Digging Height: 7085mm
- Travel Speed: 5.4/2.9 km/h (high/low)
- Fuel Capacity: 130L for extended shifts
- Hydraulic Tank: 115L
- Location: Guangxi – ready for fast deployment
Skip months of factory waiting. Secure proven Chinese engineering with immediate availability for your next project phase.
| Specifications | Value |
|---|---|
| No. | 1026110 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
