2020 XCMG XE75C

1/4
Buy XCMG XE75C Used Excavator / 1

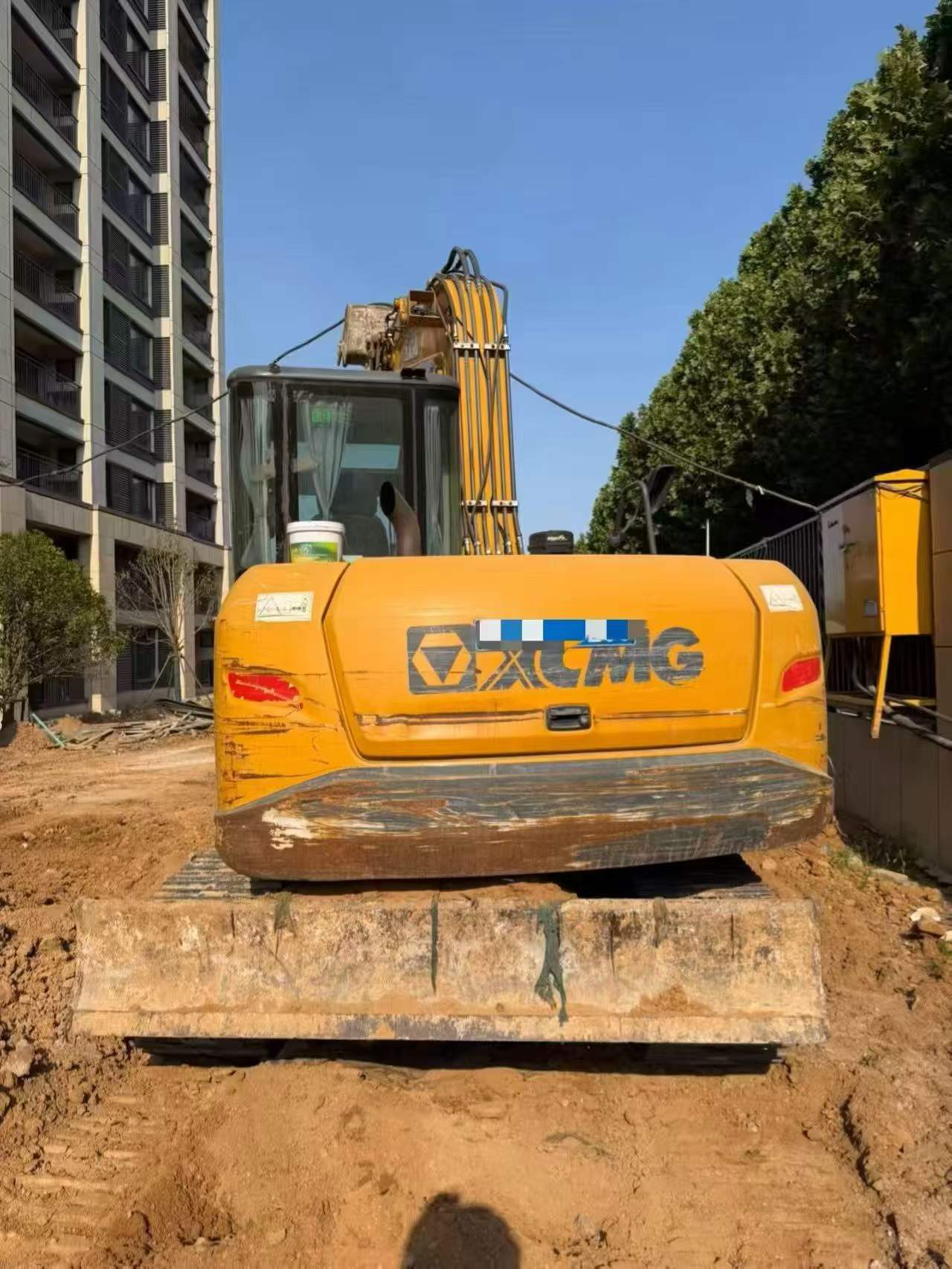

Buy XCMG XE75C Used Excavator / 2

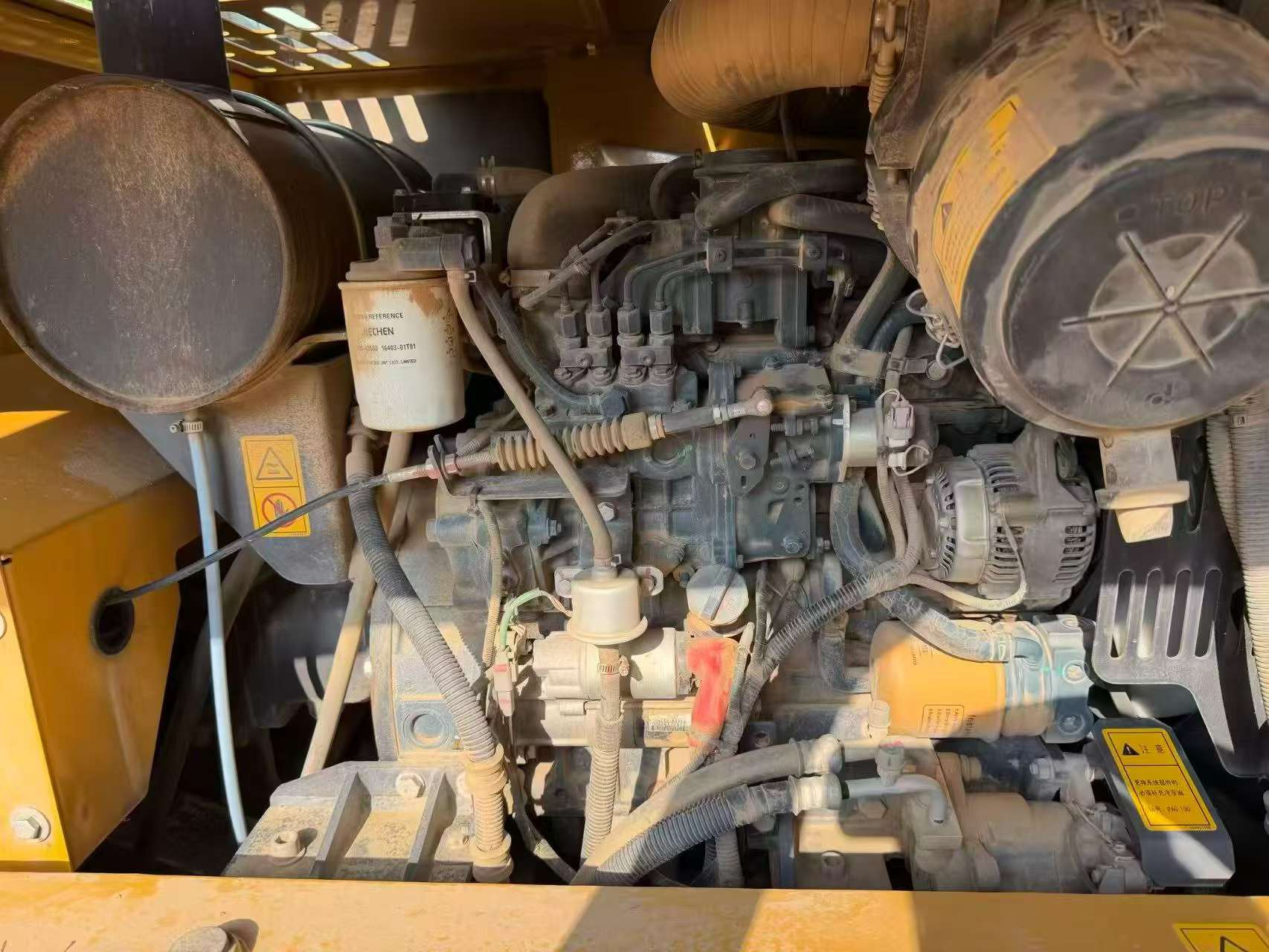

Buy XCMG XE75C Used Excavator / 3

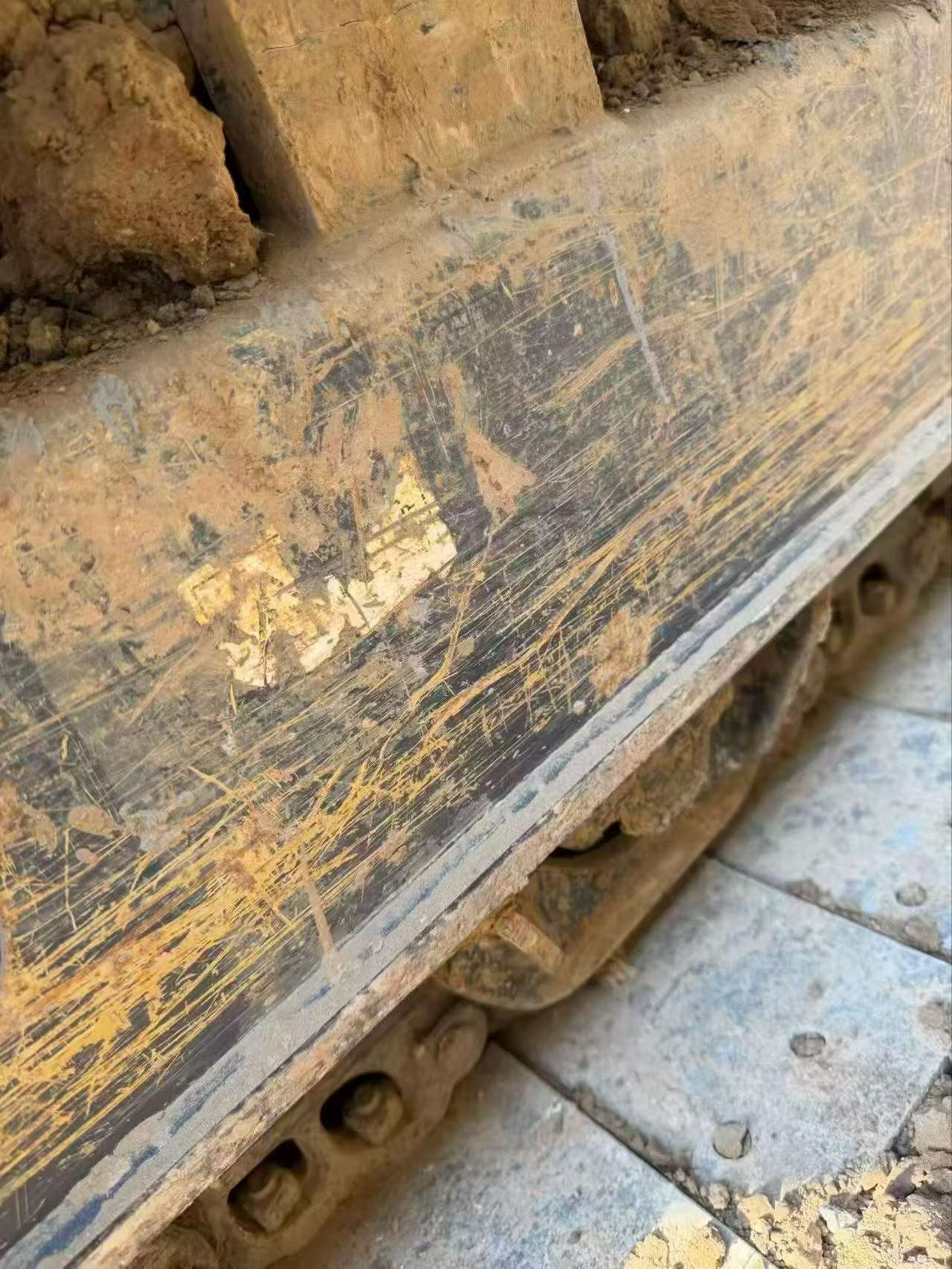

Buy XCMG XE75C Used Excavator / 4

Product Description

Engineered for precision and durability, the XCMG XE75C represents a technically refined solution in the 7-ton compact excavator segment. Powered by a Kubota V2607 diesel engine producing 43 kW at 2,000 RPM with a peak torque of 255.8 N.m, this 2020 machine delivers consistent hydraulic performance across demanding excavation cycles. The main pump outputs a maximum flow of 160 L/min, ensuring responsive implement control with minimal lag under load.

Built to work and built to last, this backhoe-configured unit ships directly from Zhejiang, China, inspection-ready for international deployment.

  • Working Weight: 7,450 kg | Ground Pressure: 33.5 kPa
  • Bucket Digging Force: 57 kN | Rod Digging Force: 38 kN
  • Maximum Digging Depth: 4,020 mm | Radius: 6,260 mm
  • Maximum Excavation Height: 7,085 mm
  • Travel Speed: 5.4 / 2.9 km/h | Max Tractive Force: 68.32 kN
  • Fuel Tank: 130 L | Hydraulic Tank: 115 L
  • Transport Dimensions: 6,150 × 2,230 × 2,685 mm
SpecificationsValue
No.1056614
Tonnage (tons)7
Working weight (kg)7450
Bucket capacity (m³)0.30
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typev2607
Rated power (kw/rpm)43/2000
Maximum torque (N.m)255.8/1400-1800
Displacement (L)2.6
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.32
Travel speed (km/h)5.4/2.9
Maximum flow of main pump (l/min)160
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)516
Maximum vertical digging depth (mm)2920
see more

Overview

No.1056614

Brand Name:

XCMG

Model Number:

XE75C

Year:

2020

Location:

Zhejiang China

Pub Date
