Product Description

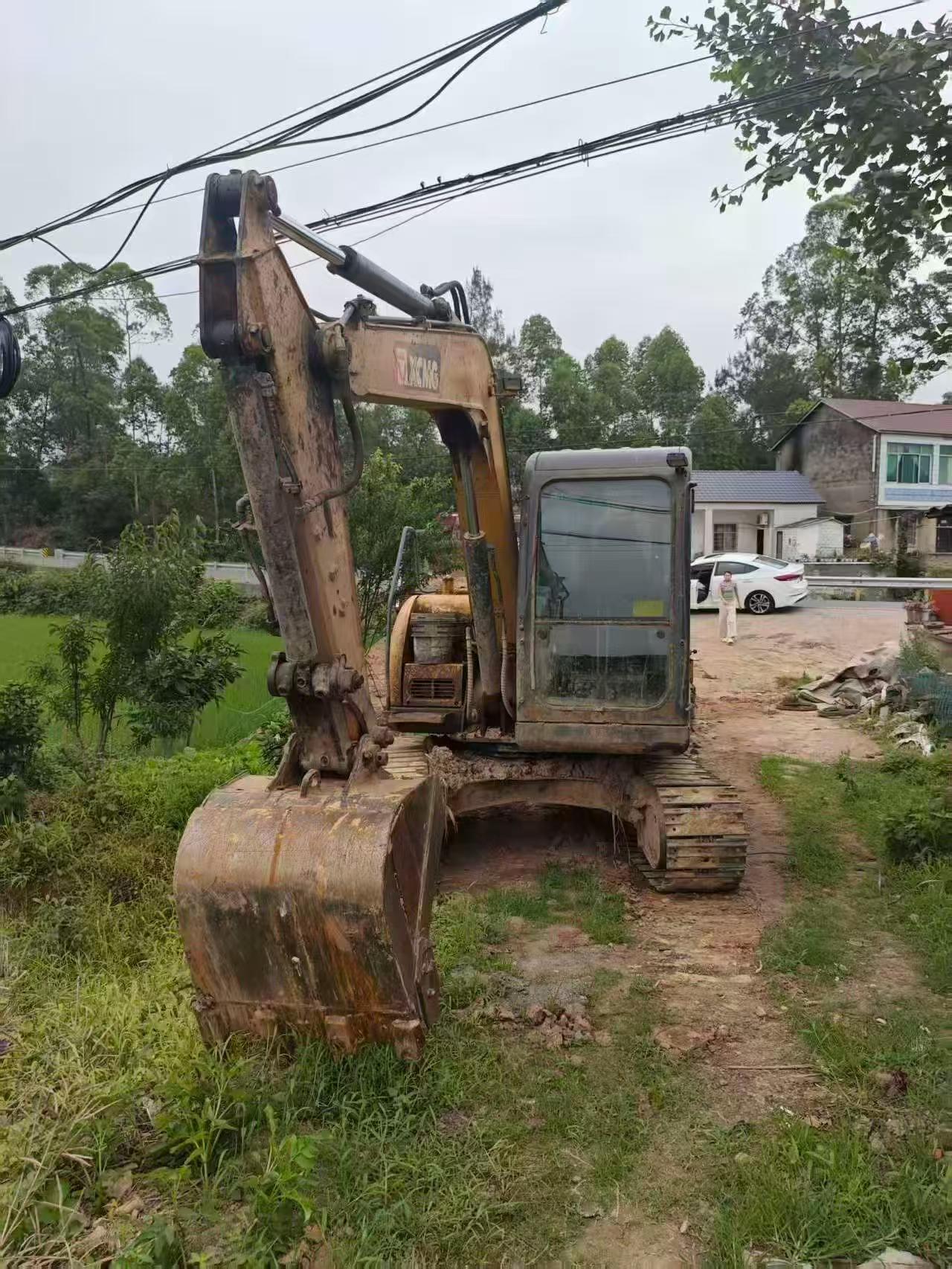

This 2020 XCMG XE75C excavator offers reliable performance for mid-sized earthmoving and construction applications. As part of XCMG's proven 7.5-ton class, the XE75C combines efficient hydraulics with a compact footprint suitable for urban job sites and infrastructure projects. Currently located in Sichuan, China, this machine represents solid value in the used equipment market.
Key features include:
- 7.5-ton operating weight for versatile site mobility
- XCMG-engineered hydraulic system for smooth operation
- Compact swing radius for confined work areas
- Standard excavator configuration with reliable components
- 2020 model year with documented service history
The XE75C is well-suited for utility installation, landscaping, foundation work, and general excavation tasks. Inspection reports and additional documentation available upon request. Contact us for shipping quotes and technical specifications.
| Specifications | Value |
|---|---|
| No. | 1075647 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
