2020 XCMG XE75C

1/9
Buy XCMG XE75C Used Excavator / 1
Buy XCMG XE75C Used Excavator / 2
Buy XCMG XE75C Used Excavator / 3
Buy XCMG XE75C Used Excavator / 4
Buy XCMG XE75C Used Excavator / 5

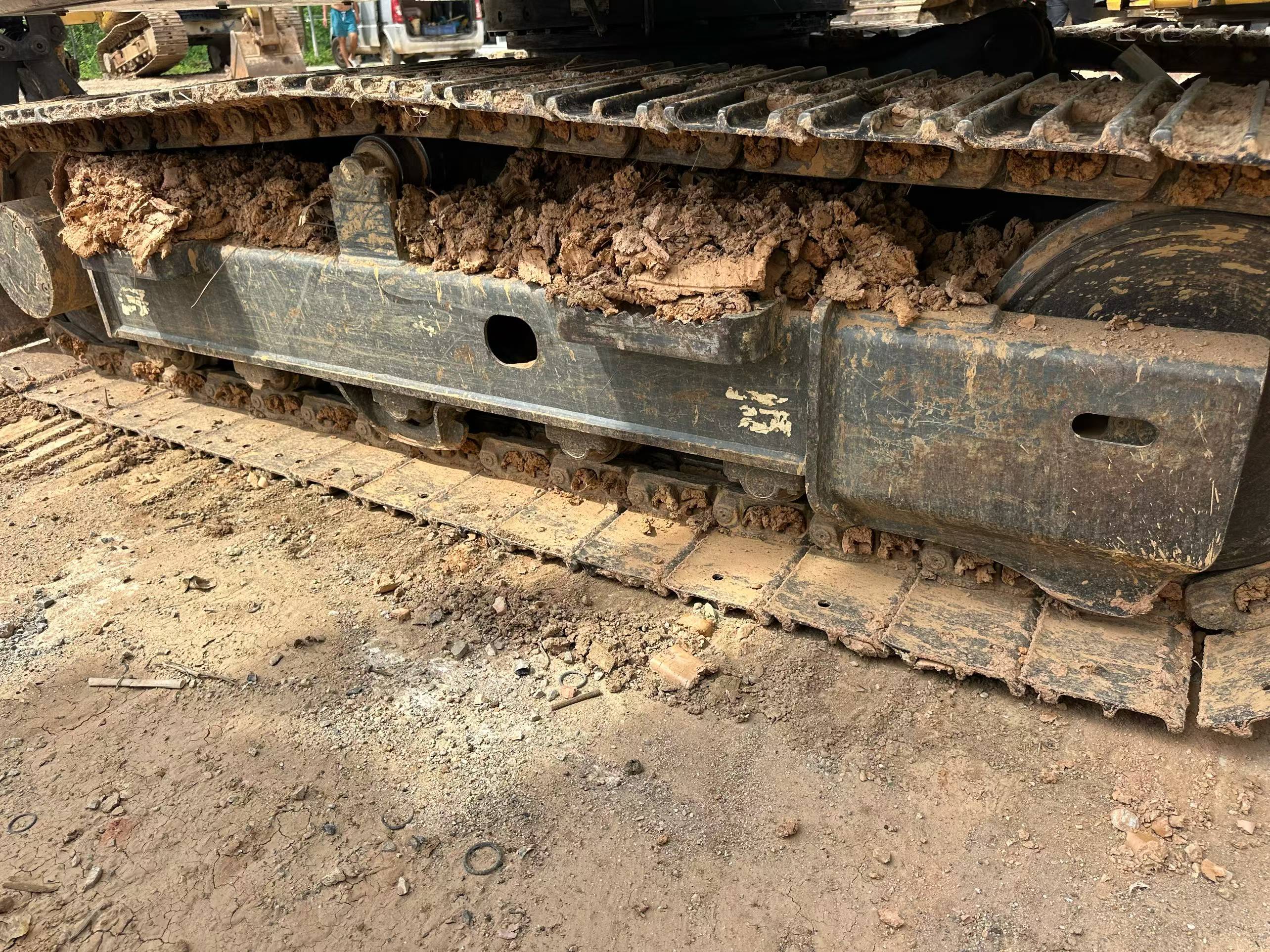

Buy XCMG XE75C Used Excavator / 6
Buy XCMG XE75C Used Excavator / 7
Buy XCMG XE75C Used Excavator / 8
Buy XCMG XE75C Used Excavator / 9

Product Description

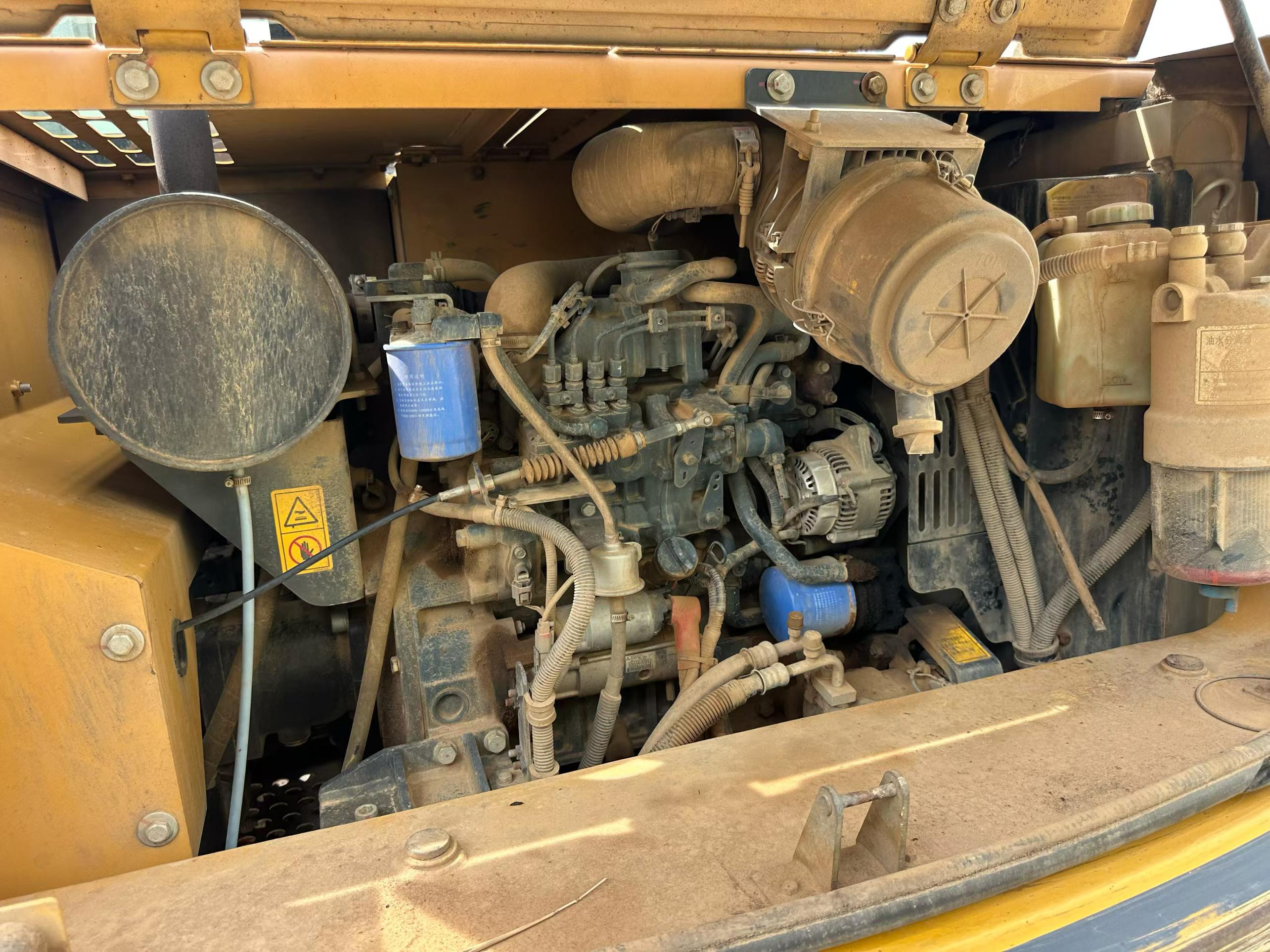

Engineered for precision and durability, the XCMG XE75C represents a benchmark in compact excavator design. Powered by a Kubota V2607 diesel engine producing 43 kW at 2,000 RPM with a peak torque of 255.8 N·m, this 7-tonne machine delivers consistent hydraulic performance through a main pump flow rate of 160 L/min — ensuring responsive, controlled operation across demanding job sites.

Built in China and sourced directly from Guangxi, this 2020 model combines engineering reliability with field-proven capability. A bucket digging force of 57 kN and rod digging force of 38 kN make short work of tough ground conditions, while the maximum digging depth of 4,020 mm and digging radius of 6,260 mm provide versatile reach for utility, civil, and landscaping applications.

  • Engine: Kubota V2607 | 43 kW / 2,000 RPM | Displacement: 2.6 L
  • Working Weight: 7,450 kg | Ground Pressure: 33.5 kPa
  • Bucket Capacity: 0.30 m³ | Bucket Digging Force: 57 kN
  • Maximum Digging Depth: 4,020 mm | Digging Radius: 6,260 mm
  • Travel Speed: 5.4 / 2.9 km/h | Max Tractive Force: 68.32 kN
  • Fuel Tank: 130 L | Hydraulic Tank: 115 L
  • Transport Dimensions: 6,150 mm (L) × 2,230 mm (W) × 2,685 mm (H)
SpecificationsValue
No.1092109
Tonnage (tons)7
Working weight (kg)7450
Bucket capacity (m³)0.30
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typev2607
Rated power (kw/rpm)43/2000
Maximum torque (N.m)255.8/1400-1800
Displacement (L)2.6
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.32
Travel speed (km/h)5.4/2.9
Maximum flow of main pump (l/min)160
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)516
Maximum vertical digging depth (mm)2920
see more

Overview

No.1092109

Brand Name:

XCMG

Model Number:

XE75C

Year:

2020

Location:

Guangxi China

Pub Date
