Product Description

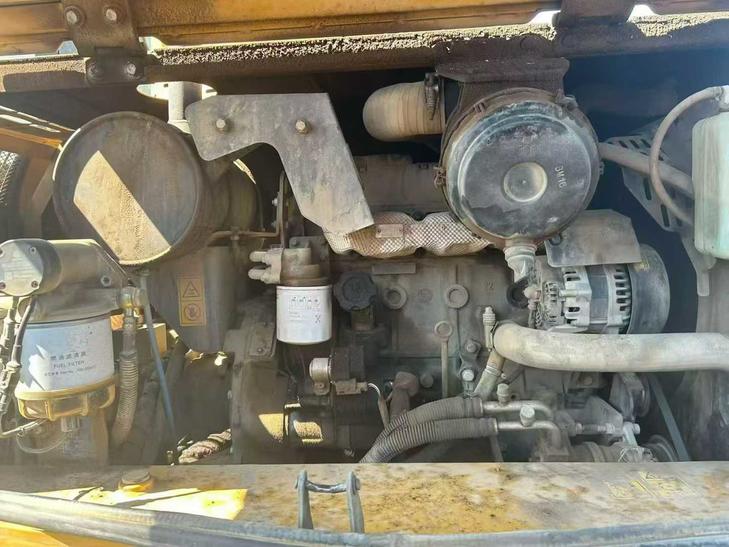

Engineered with precision, this 7-ton excavator delivers robust performance through its v2607 engine producing 43kW at 2000rpm and 255.8N.m maximum torque. The hydraulic system features a 160L/min main pump flow rate, generating exceptional bucket digging force of 57kN and rod digging force of 38kN—critical specifications for demanding excavation work in confined and medium-scale construction sites.
XCMG's XE75C represents proven Chinese manufacturing standards with intelligent design parameters. Operating weight of 7,450kg provides stability while maintaining a ground specific pressure of just 33.5kPa, minimizing surface damage across varied terrain. The 0.30m³ bucket capacity balances productivity with fuel efficiency from the 130L tank.
- Maximum digging reach: 6,260mm with 4,020mm depth capability
- Maximum vertical digging depth: 2,920mm for precise trenching operations
- Compact transport dimensions: 6,150mm length × 2,230mm width
- Dual travel speeds: 5.4/2.9 km/h for operational flexibility
- Currently located in Chongqing, ready for international shipment
| Specifications | Value |
|---|---|
| No. | 1027768 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
