Product Description

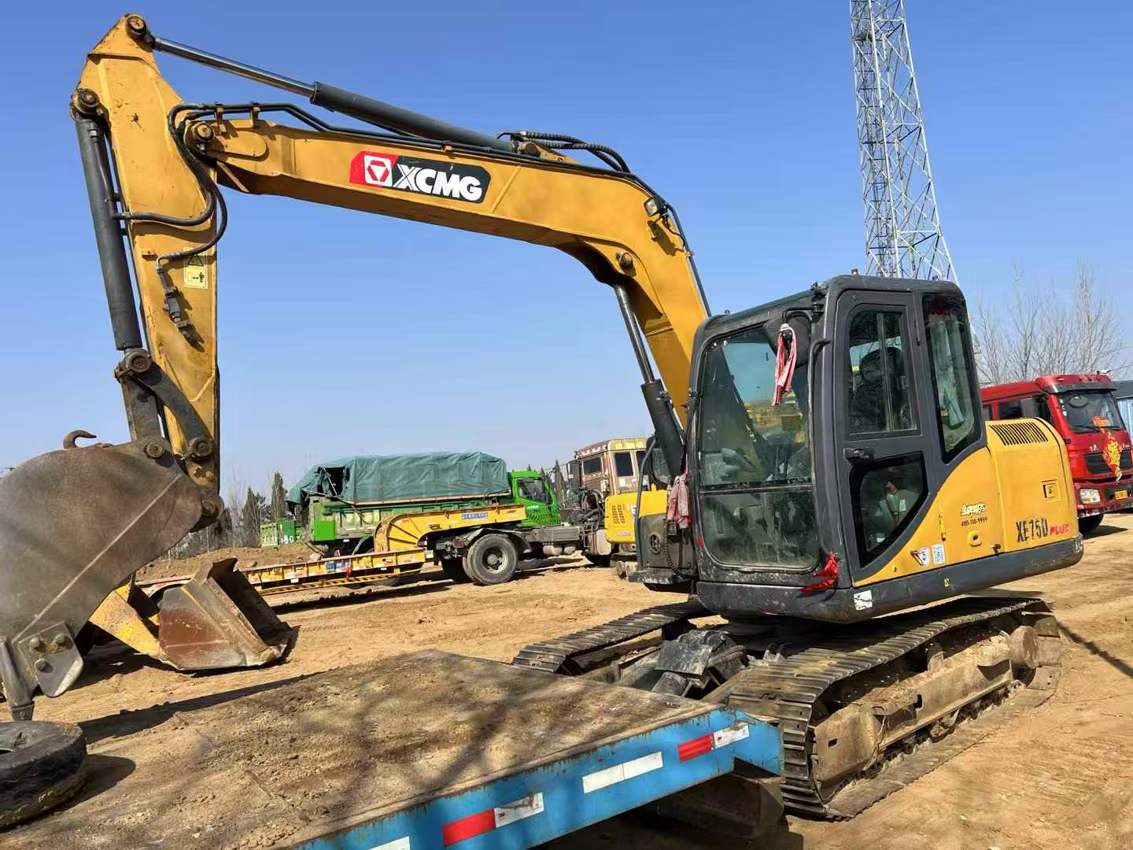

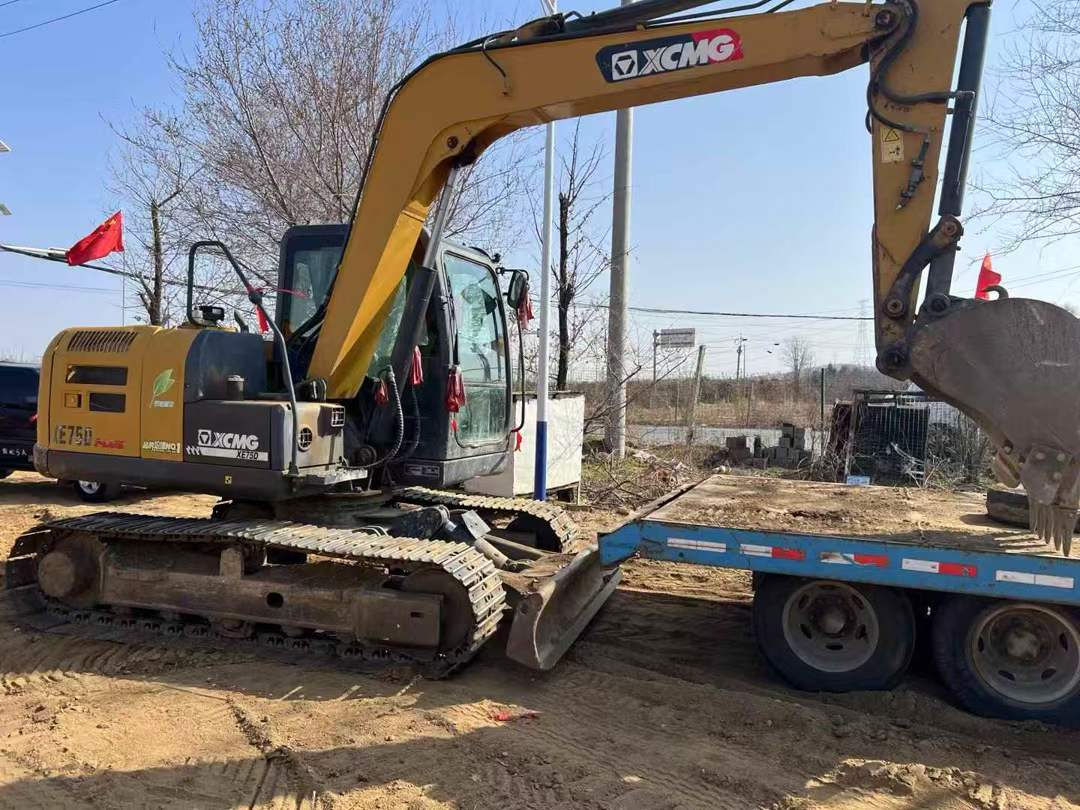

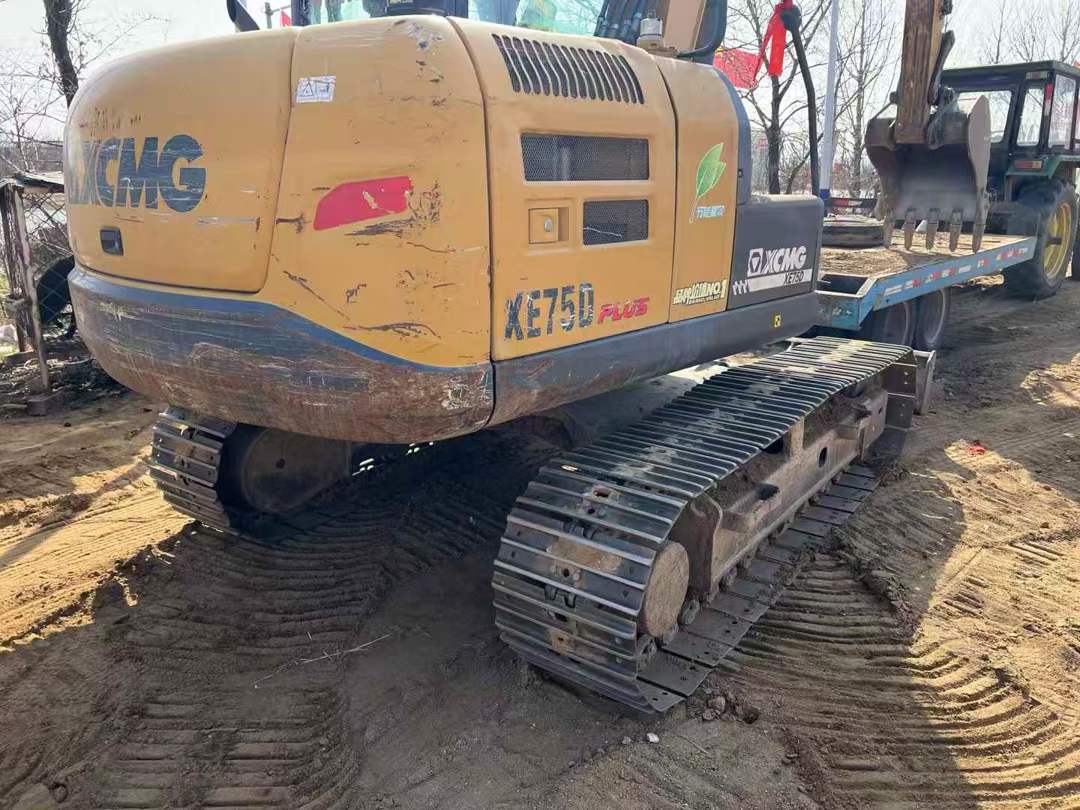

With a working weight of 7450 kg and a bucket capacity of 0.30 m³, the XCMG XE75C excavator is an ideal addition to any busy contractor's fleet. Located in 山东济南, this 2022 model ensures reliable performance and durability, making it perfect for both primary and backup roles. Equipped with a V2607 engine delivering 43 kW at 2000 rpm, it provides the necessary power for demanding tasks. The XE75C features a maximum digging depth of 4020 mm and a maximum digging radius of 6260 mm, enhancing its versatility on various job sites. Its robust design, including a ground specific pressure of 33.5 Kpa, ensures stability and efficiency. Integrate this unit into your fleet for enhanced productivity and reliability.
- Working weight: 7450 kg
- Bucket capacity: 0.30 m³
- Engine type: V2607, 43 kW at 2000 rpm
- Maximum digging depth: 4020 mm
- Maximum digging radius: 6260 mm
- Ground specific pressure: 33.5 Kpa
| Specifications | Value |
|---|---|
| No. | 1023211 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
