Product Description

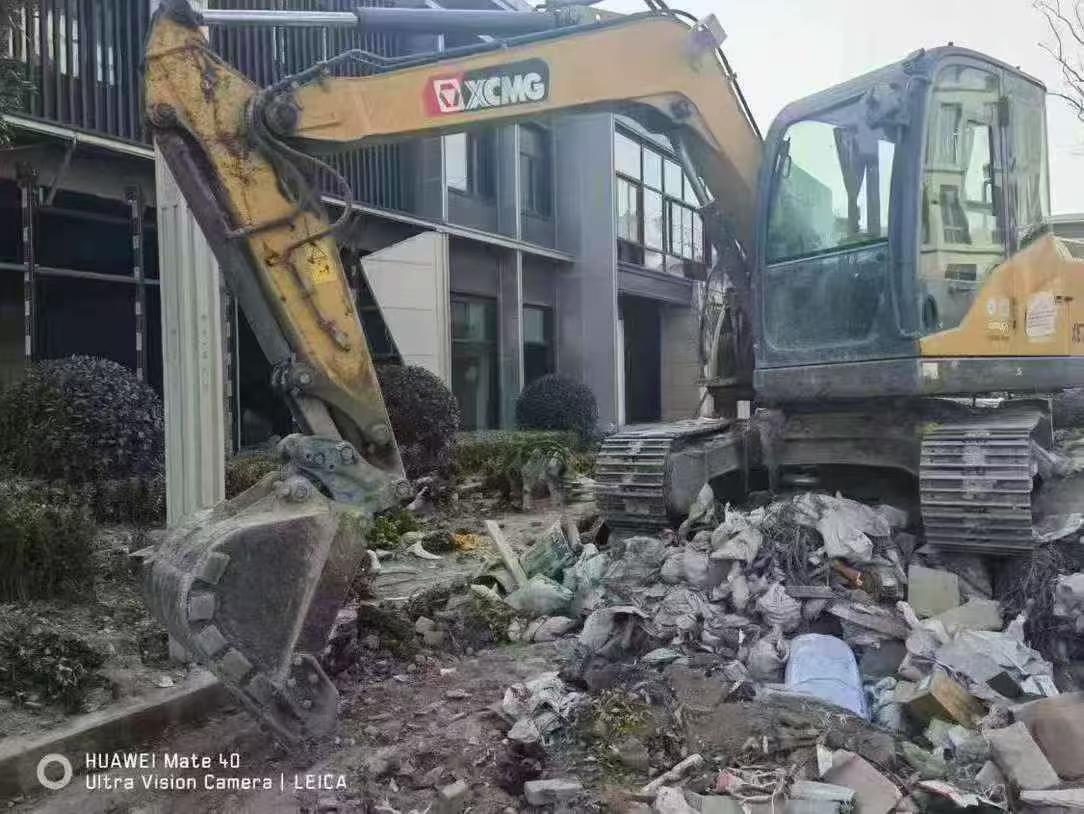

Engineered for precision and daily productivity, this 2022 XCMG XE75C mini excavator delivers reliable performance across construction and utility projects. Operating at 7,450 kg working weight with a 0.30 m³ bucket capacity, operators benefit from exceptional maneuverability in confined spaces without sacrificing digging power. The v2607 engine generates 43 kW at 2,000 rpm, providing consistent hydraulic flow through its 160 l/min main pump for smooth, responsive control.
Cabin design prioritizes operator comfort during extended shifts. Visibility across the 6,260 mm maximum digging radius remains unobstructed, while intuitive controls reduce fatigue. Stability comes standard with 33.5 kPa ground pressure distribution and a robust undercarriage supporting 68.32 kN maximum tractive force. The 57 kN bucket digging force and 38 kN arm digging force handle demanding excavation tasks efficiently.
Key operator-focused specifications:
- Maximum digging depth: 4,020 mm with 2,920 mm vertical capability
- 10 rpm swing speed for precise positioning
- Dual travel speeds (5.4/2.9 km/h) for site versatility
- 130 L fuel capacity extends runtime between refills
- Compact transport dimensions
| Specifications | Value |
|---|---|
| No. | 1024776 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
