Product Description

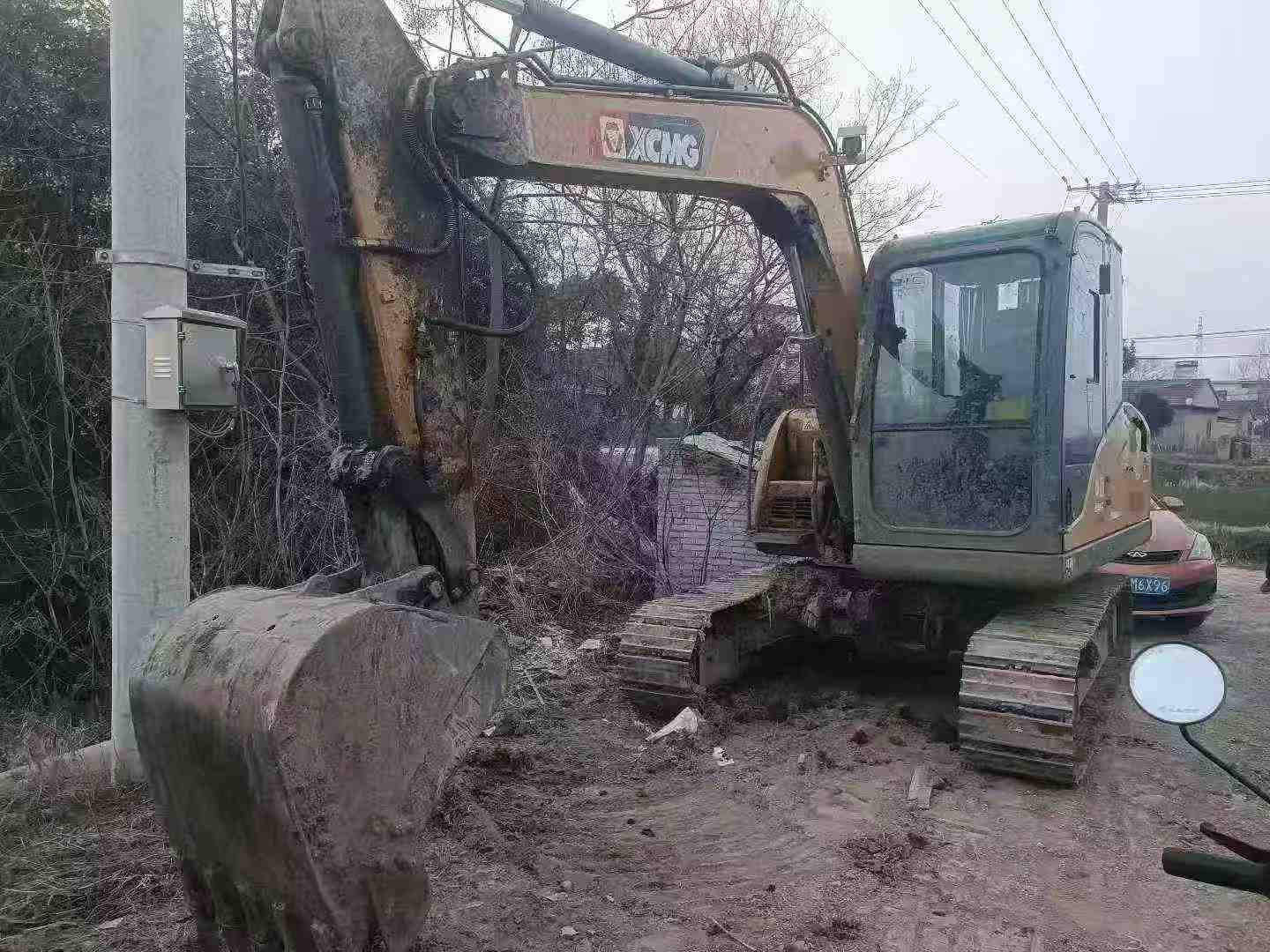

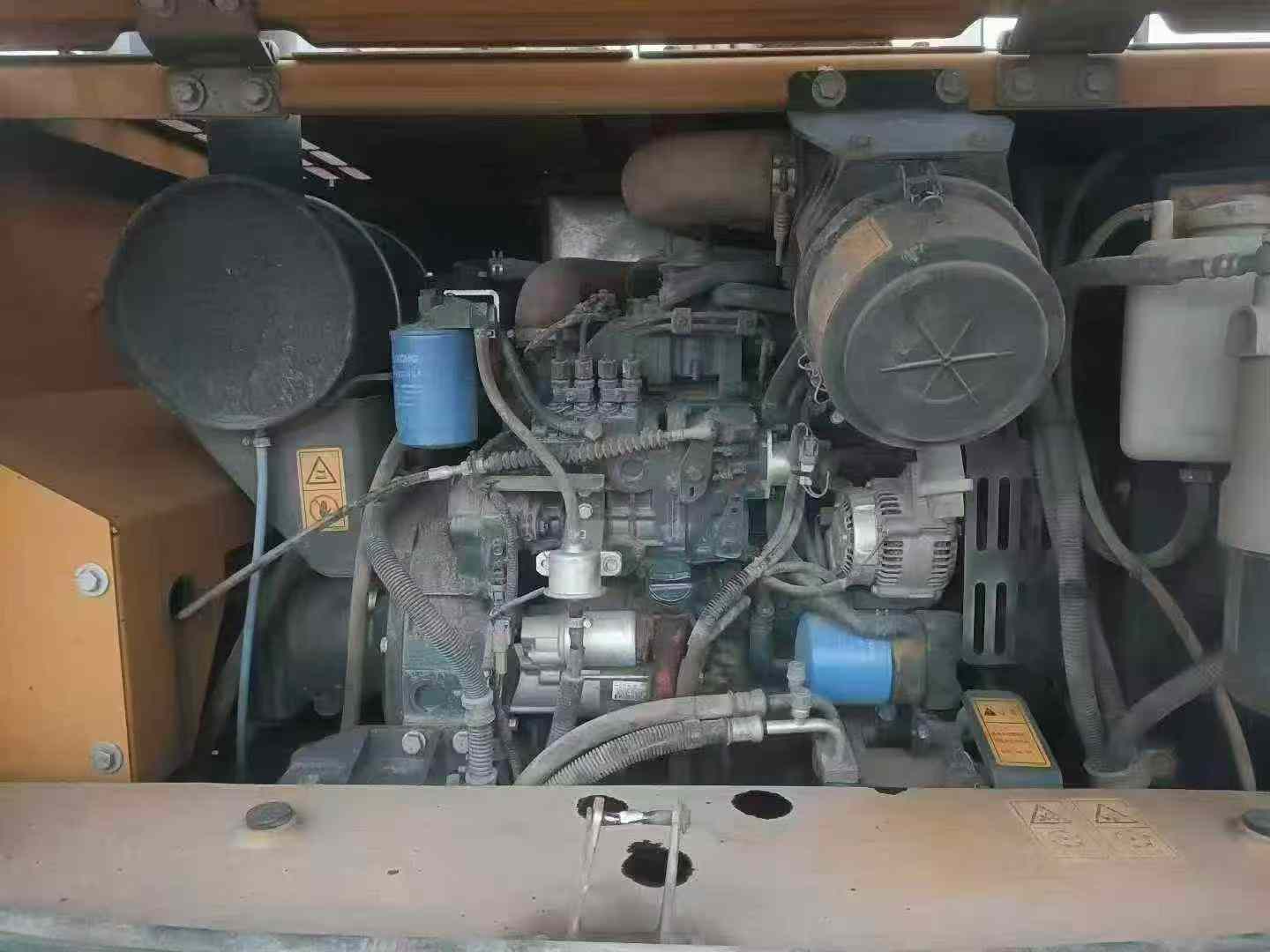

Engineered with XCMG's proven v2607 diesel engine delivering 43kW at 2000rpm and 255.8N.m maximum torque, this 7-ton excavator demonstrates the technical precision expected from China's leading heavy equipment manufacturer. The 2022 XE75C combines a high-capacity 160L/min main pump with optimized hydraulic circuits to generate 57kN bucket digging force and 38kN arm digging force—specifications that enable efficient performance across diverse job sites.
Core Technical Specifications:
- Operating weight: 7,450kg with 0.30m³ bucket capacity
- Maximum digging reach: 6,260mm / digging depth: 4,020mm
- Maximum digging height: 7,085mm for superior vertical range
- Rotation speed: 10rpm for precise positioning
- Ground pressure: 33.5kPa minimizes surface damage
- Dual-speed travel: 5.4/2.9km/h for operational flexibility
- Fuel capacity: 130L / Hydraulic tank: 115L
- Compact transport dimensions: 6,150×2,230×2,685mm
Currently located in Shaoxing, Zhejiang, this machine represents XCMG's commitment to robust engineering and field-proven reliability in the compact excavator segment.
| Specifications | Value |
|---|---|
| No. | 1029384 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
