Product Description
Built for immediate deployment, this 2023 XCMG XE75C delivers proven performance across excavation, grading, and demolition applications. Operating at 7 tons with a working weight of 7,450 kg, this compact excavator combines maneuverability with serious digging capability. The 0.30 m³ backhoe bucket and 57 kN bucket digging force handle tough material with authority, while the 4,020 mm maximum digging depth reaches deep trenching requirements without repositioning.

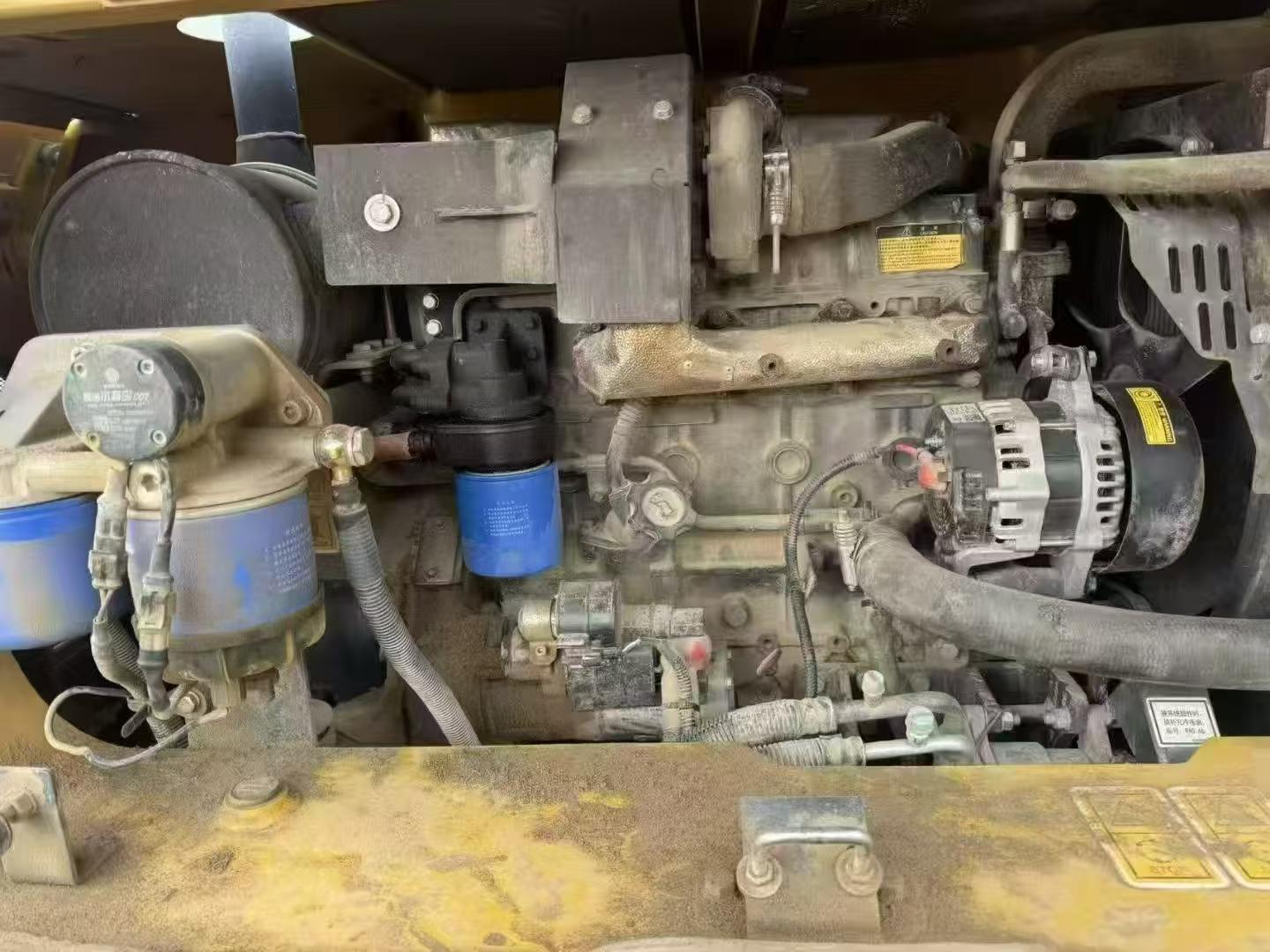

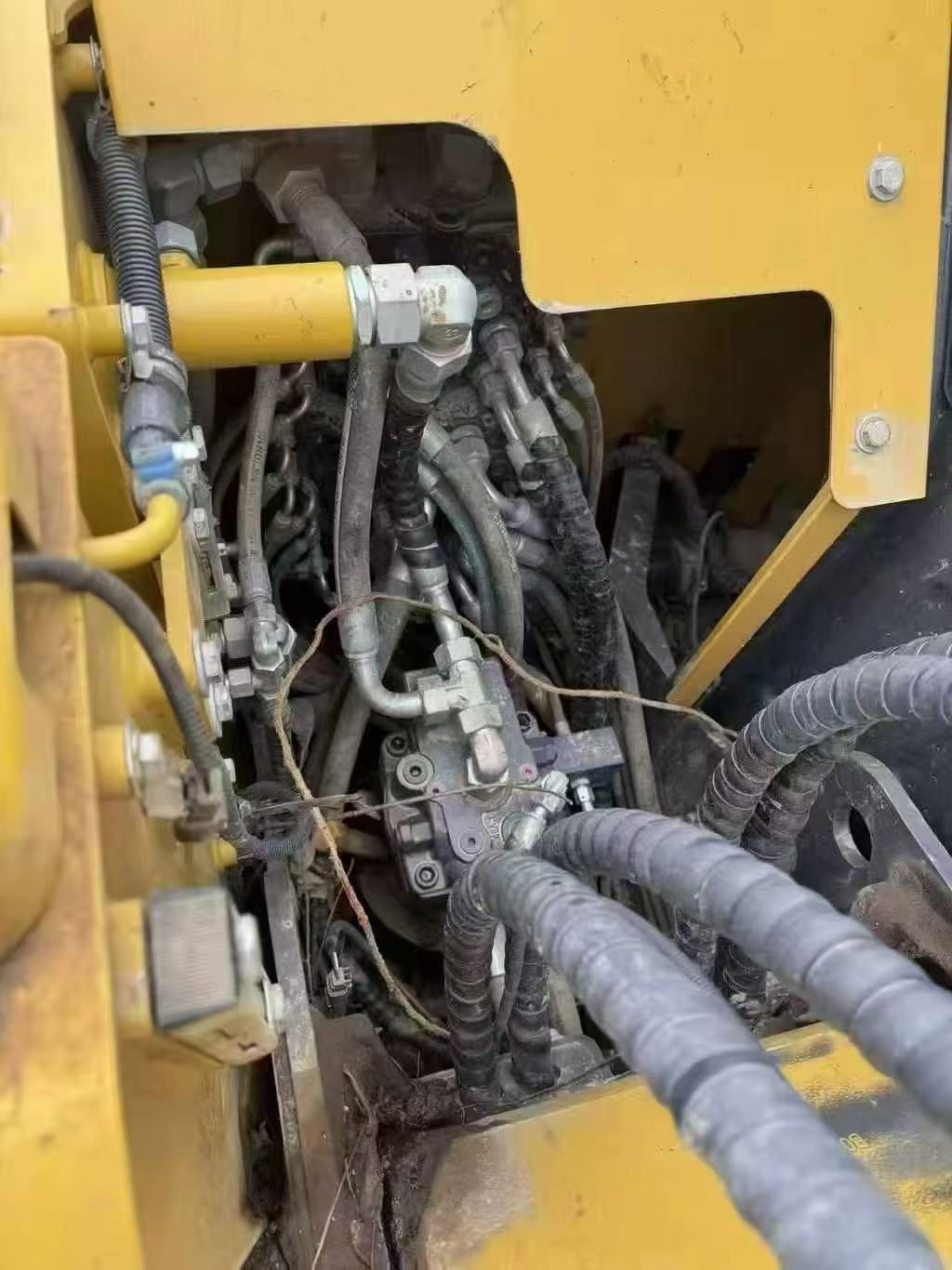

Power comes from a reliable V2607 engine producing 43 kW at 2,000 rpm, supported by a 160 l/min hydraulic system that delivers responsive control under load. Dual travel speeds of 5.4/2.9 km/h optimize productivity between job site positioning and precision work. With a 6,260 mm digging radius and 7,085 mm maximum excavation height, this machine tackles foundation work, utility installation, and site preparation efficiently.
Currently located in Anhui, China, this XE75C arrives ready for work with 130L fuel capacity and 115L hydraulic tank—engineered for extended operation with minimal downtime. Site-ready equipment for contractors who demand reliability.
| Specifications | Value |
|---|---|
| No. | 1023044 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
