Product Description

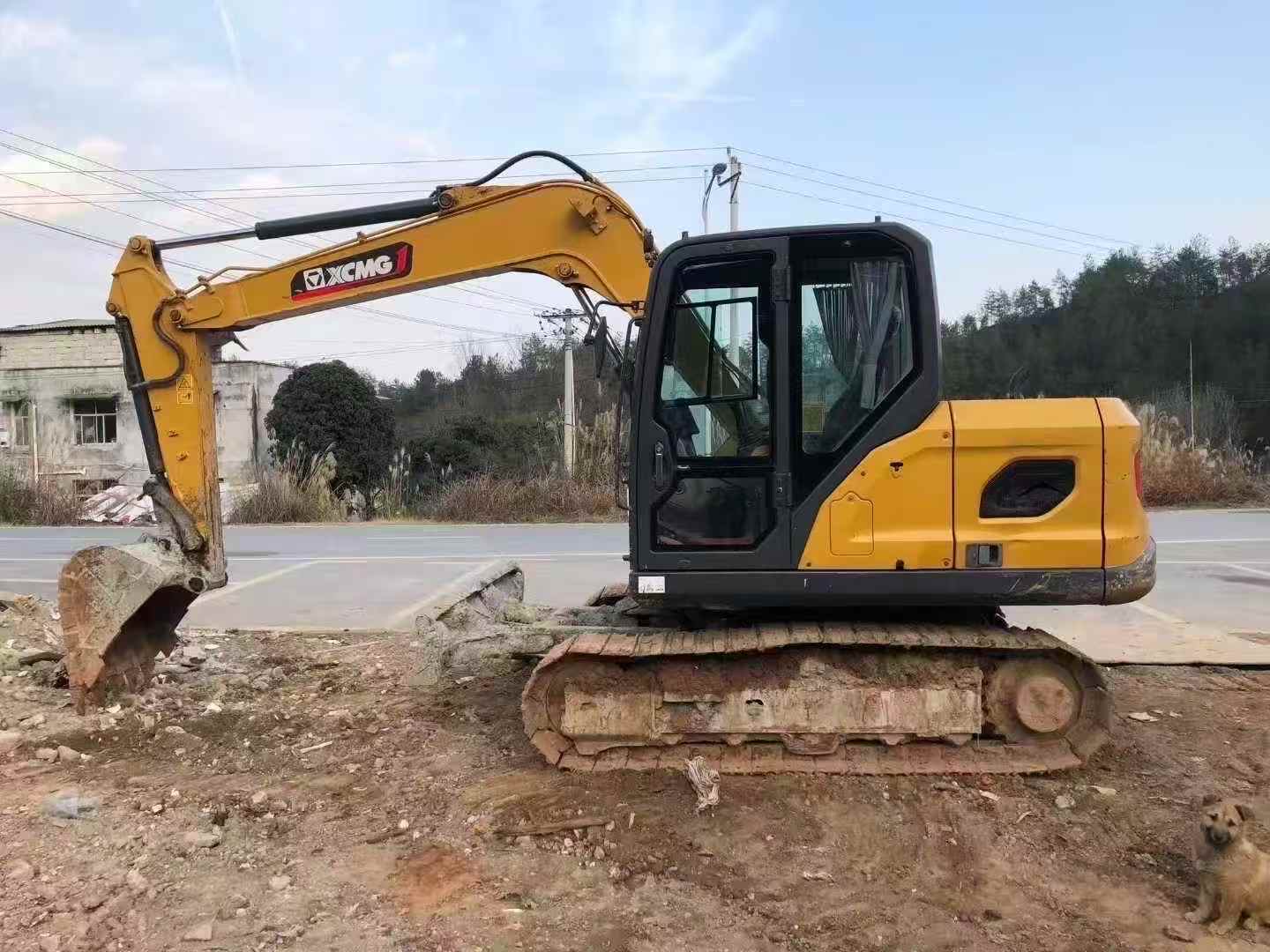

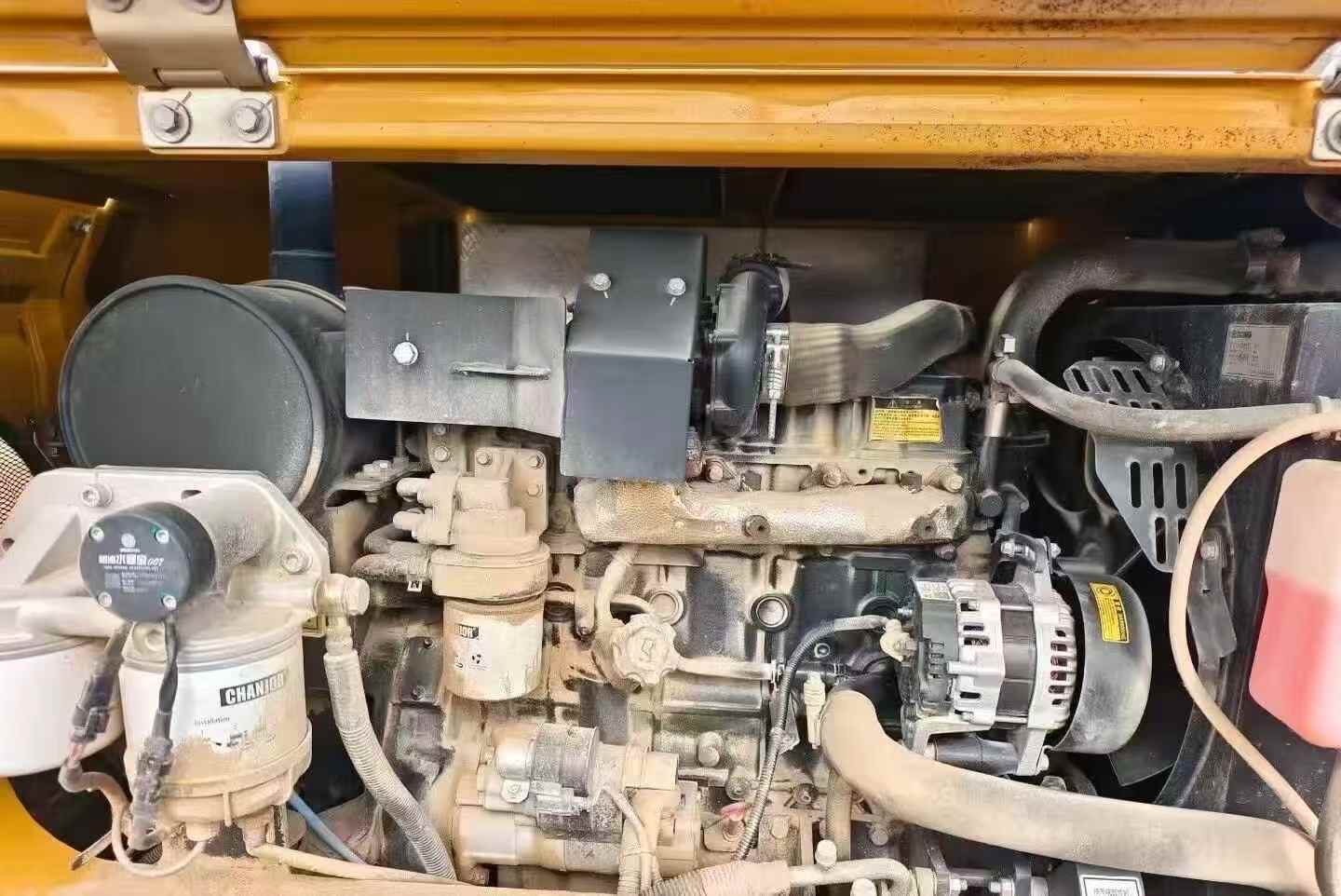

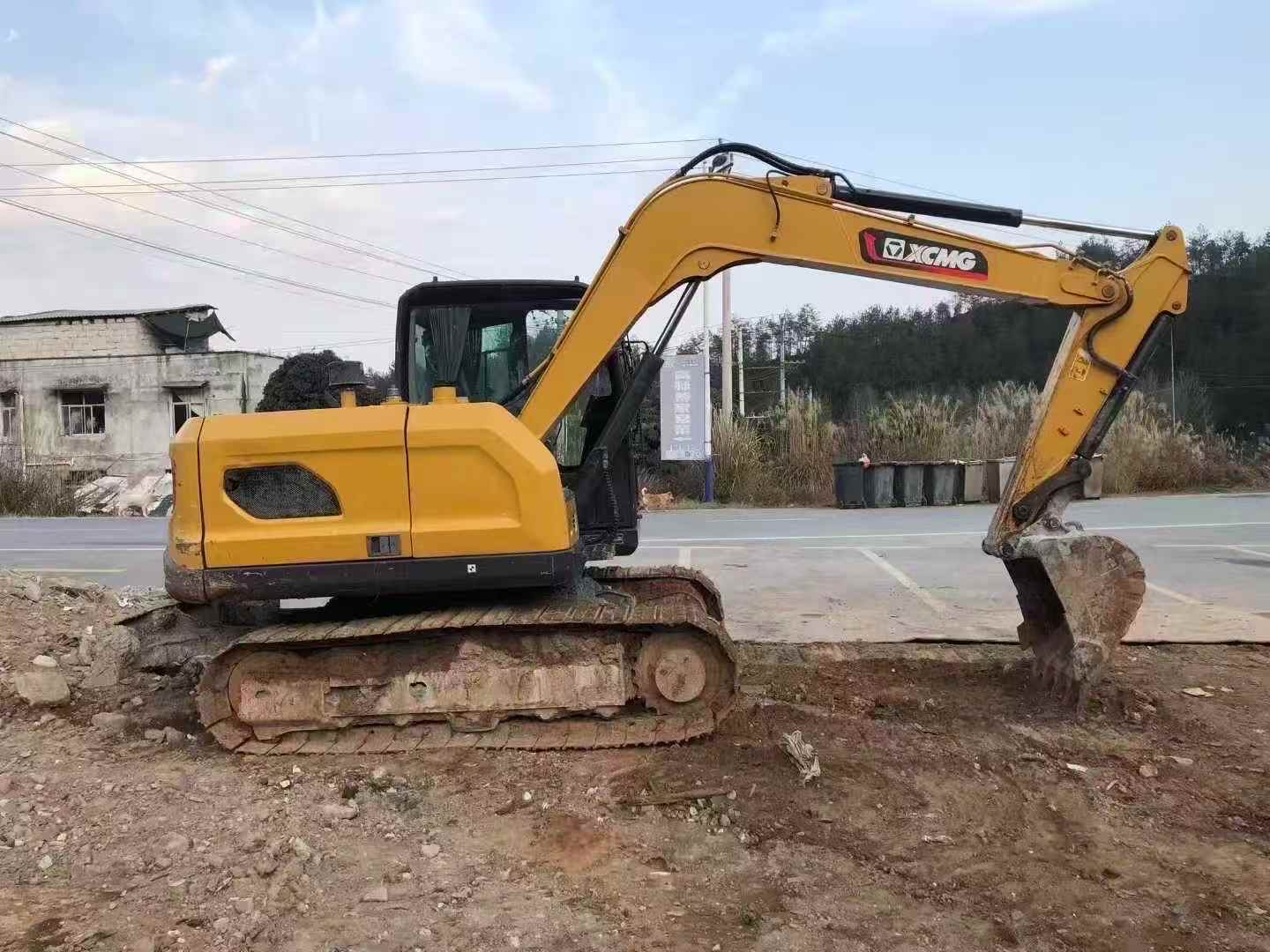

Proven performance meets reliable engineering in this 2023 XCMG XE75C excavator, currently located in Guizhou. With a 7-ton operating class and 7,450 kg working weight, this machine delivers consistent productivity across demanding job sites. Powered by a robust V2607 engine generating 43 kW at 2,000 rpm and 255.8 N·m of torque, it combines fuel efficiency with dependable power output. Built for durability, the XE75C features a 0.30 m³ bucket capacity with an impressive 57 kN bucket digging force and 38 kN rod digging force, ensuring efficient material handling in diverse ground conditions.
- Maximum Digging Reach: 6,260 mm for extended operational range
- Digging Depth: 4,020 mm maximum depth capability
- Hydraulic Performance: 160 l/min main pump flow for responsive controls
- Fuel Capacity: 130-liter tank supports extended work shifts
- Transport Dimensions: 6,150 × 2,230 × 2,685 mm for easy mobilization
- Ground Pressure: 33.5 kPa minimizes surface impact
Engineered for longevity, this workhorse represents XCMG's commitment to manufacturing quality equipment that with
| Specifications | Value |
|---|---|
| No. | 1024259 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
