Product Description

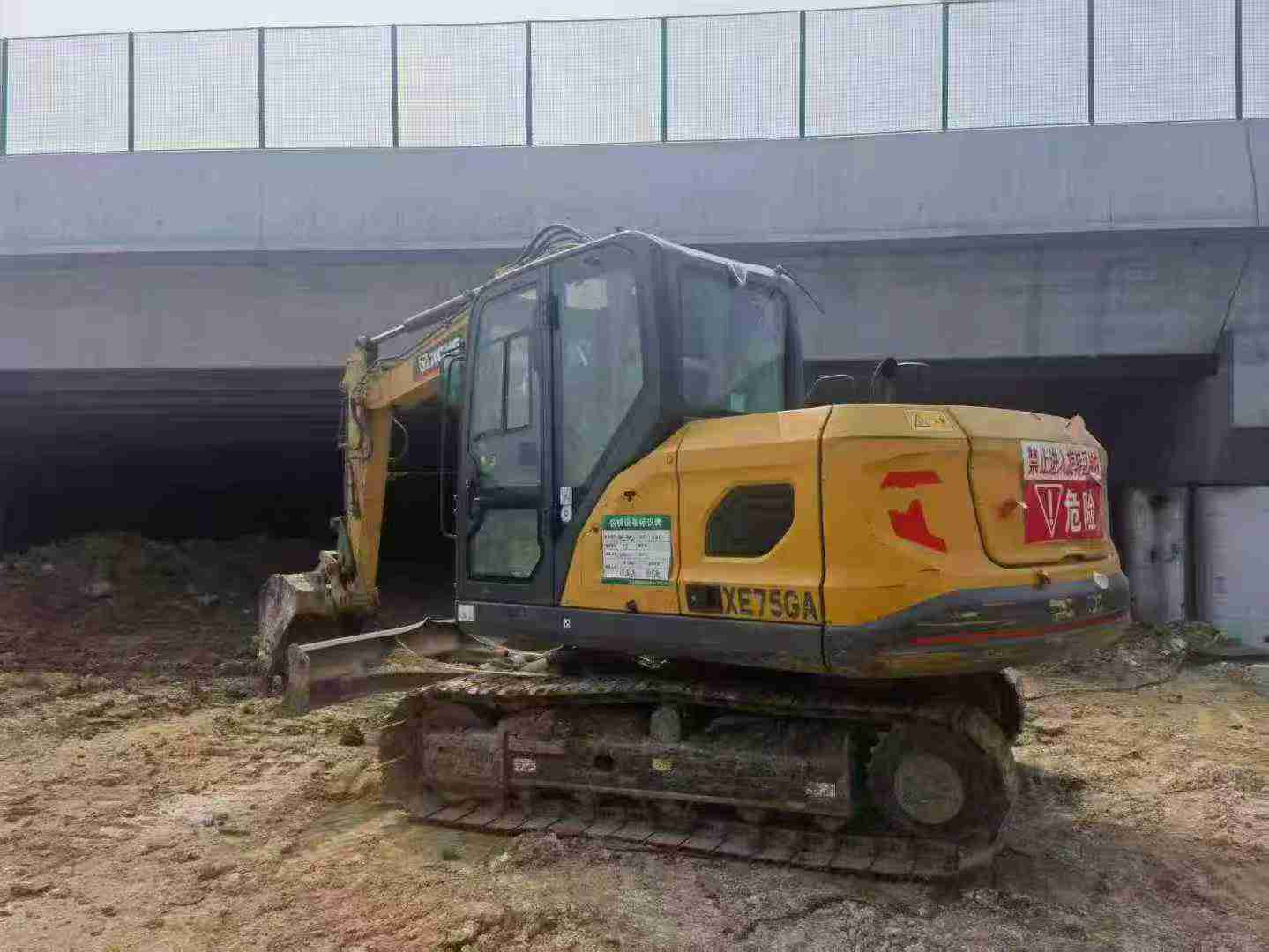

Expand your operational capacity with this 2023 XCMG XE75C, a 7-ton excavator engineered for contractors managing multiple jobsites simultaneously. Powered by a robust V2607 engine delivering 43kW at 2000rpm, this unit provides reliable backup when your primary machines are deployed elsewhere. The 0.30m³ bucket capacity and 4020mm maximum digging depth handle foundation work, trenching, and utility installations with consistent performance across residential and light commercial projects.
Key specifications include:
- Working weight: 7,450kg with compact transport dimensions (6150mm × 2230mm × 2685mm)
- Hydraulic performance: 160L/min main pump flow, 57kN bucket digging force, 38kN arm force
- Operating range: 6260mm maximum reach, 7085mm digging height
- Fuel efficiency: 130L tank capacity supporting extended shifts
- Mobility: 5.4km/h travel speed, 33.5kPa ground pressure minimizes site damage
Currently located in Shaoxing, Zhejiang, this machine integrates seamlessly into existing XCMG fleets while offering parts compatibility and standardized operator training. Add proven Chinese manufacturing quality to your equipment rotation without workflow disruption.
| Specifications | Value |
|---|---|
| No. | 1030505 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
