Product Description

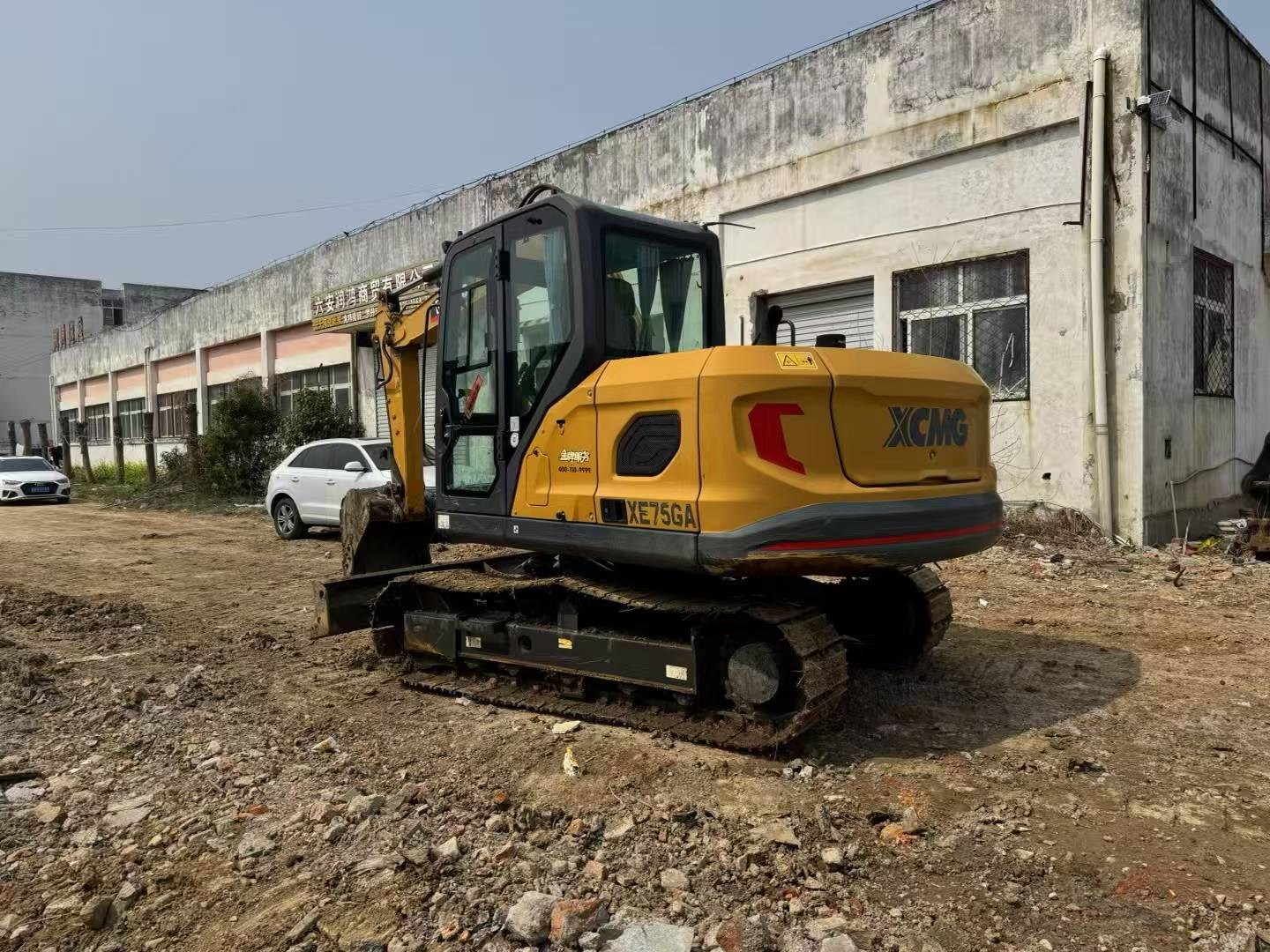

Built for immediate deployment on demanding jobsites, this 2024 XCMG XE75C mini excavator delivers 7-ton class performance with precision and reliability. Powered by a robust V2607 engine generating 43kW at 2000 rpm, this machine tackles digging, trenching, and grading tasks with consistent hydraulic power. Maximum digging depth reaches 4020mm while the 6260mm working radius covers extensive ground from a single setup.
Equipped with a 0.30m³ backhoe bucket and 57kN bucket digging force, this excavator moves material efficiently across construction, utility, and landscaping applications. The 160 L/min main pump flow ensures responsive operation during repetitive cycles. Compact transport dimensions of 6150mm length and 2230mm width allow easy mobilization between sites, while the 7450kg working weight provides stability without excessive ground pressure at 33.5kPa.
Key specifications include:
- Maximum digging height: 7085mm for loading operations
- Rod digging force: 38kN for tough soil conditions
- 130L fuel capacity for extended shifts
- 10 rpm rotation speed for smooth positioning
- Currently available in Anhui, China—ready for immediate shipment
| Specifications | Value |
|---|---|
| No. | 1027218 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
