Product Description

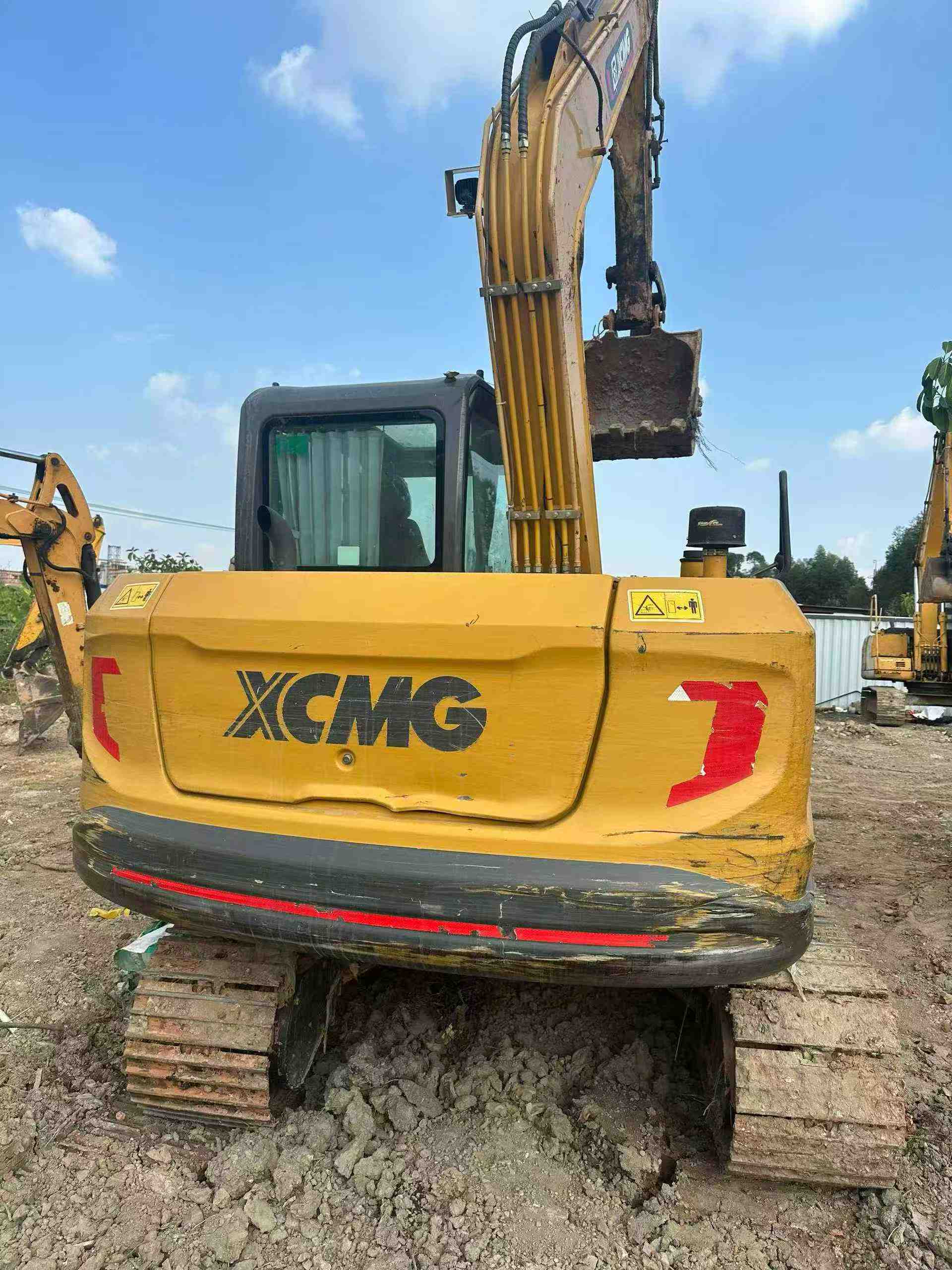

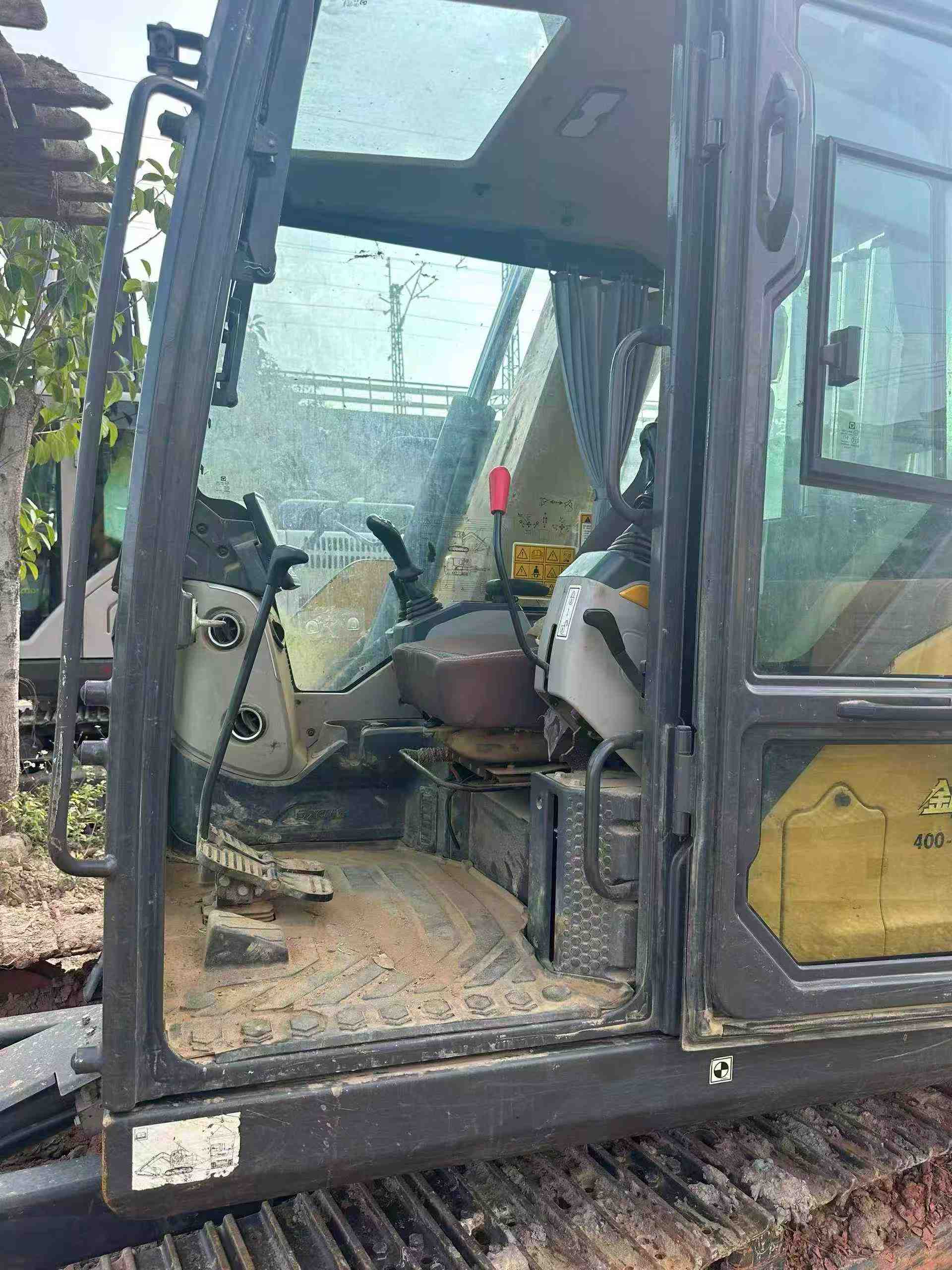

Built for precision and all-day productivity, this 2024 XCMG XE75C mini excavator delivers exceptional operator control in a compact 7-ton platform. Powered by a reliable V2607 engine producing 43kW at 2000rpm, this machine combines responsive hydraulics with intuitive handling for demanding site conditions. The spacious cabin offers panorized visibility across the 6260mm working envelope, allowing operators to monitor bucket placement and surrounding traffic with confidence.
Engineered for stability on varied terrain, the XE75C maintains a ground pressure of just 33.5kPa while delivering 57kN bucket digging force and 68.32kN maximum tractive effort. Hydraulic flow reaches 160L/min through the main pump, ensuring smooth simultaneous functions during complex excavation sequences. Operators benefit from quick 10rpm swing speed, dual travel speeds (5.4/2.9 km/h), and a maximum digging depth of 4020mm—ideal for utility work, foundation prep, and landscaping projects.
- Operating weight: 7450kg with 0.30m³ backhoe bucket
- Maximum digging reach: 6260mm | Dig depth: 4020mm
- Fuel capacity: 130L | Hydraulic reservoir: 115L
- Transport dimensions: 6150mm (L) × 2230mm (W) × 2685mm (H)
- Current
| Specifications | Value |
|---|---|
| No. | 1030412 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
