Product Description

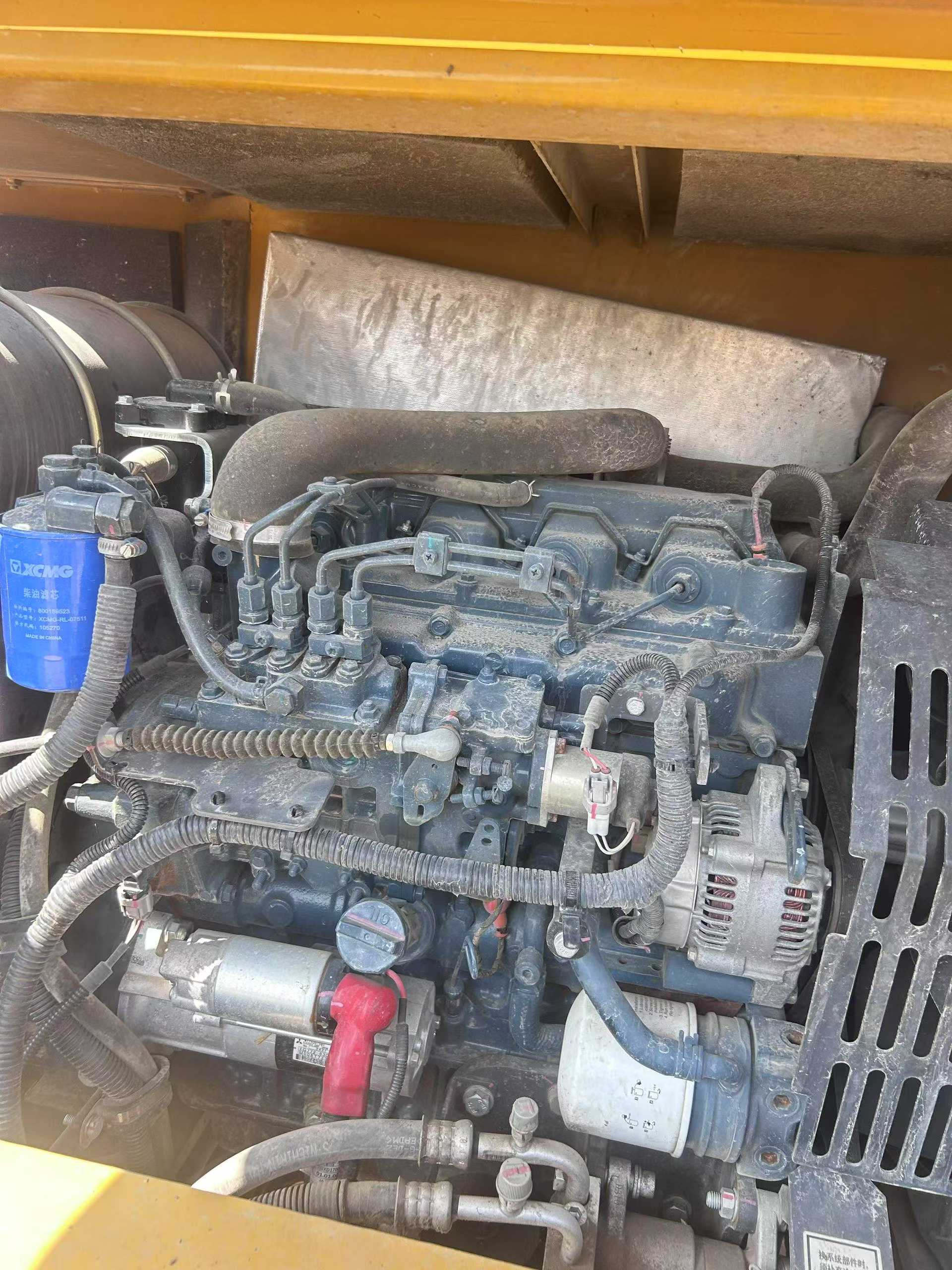

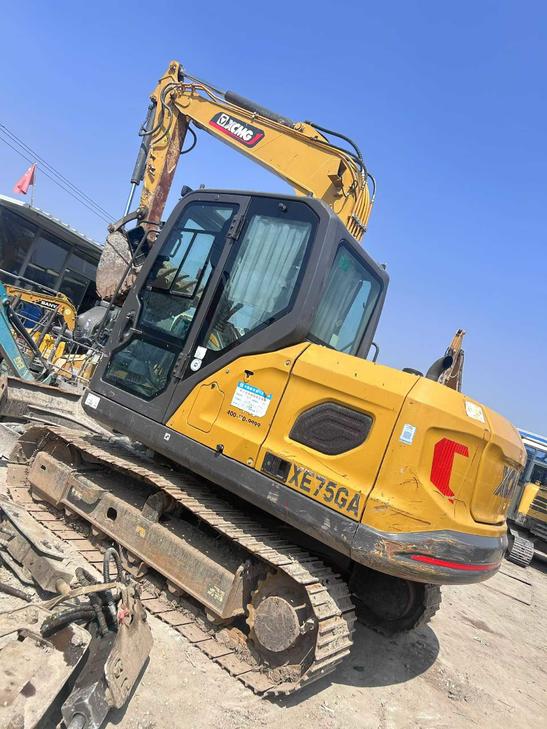

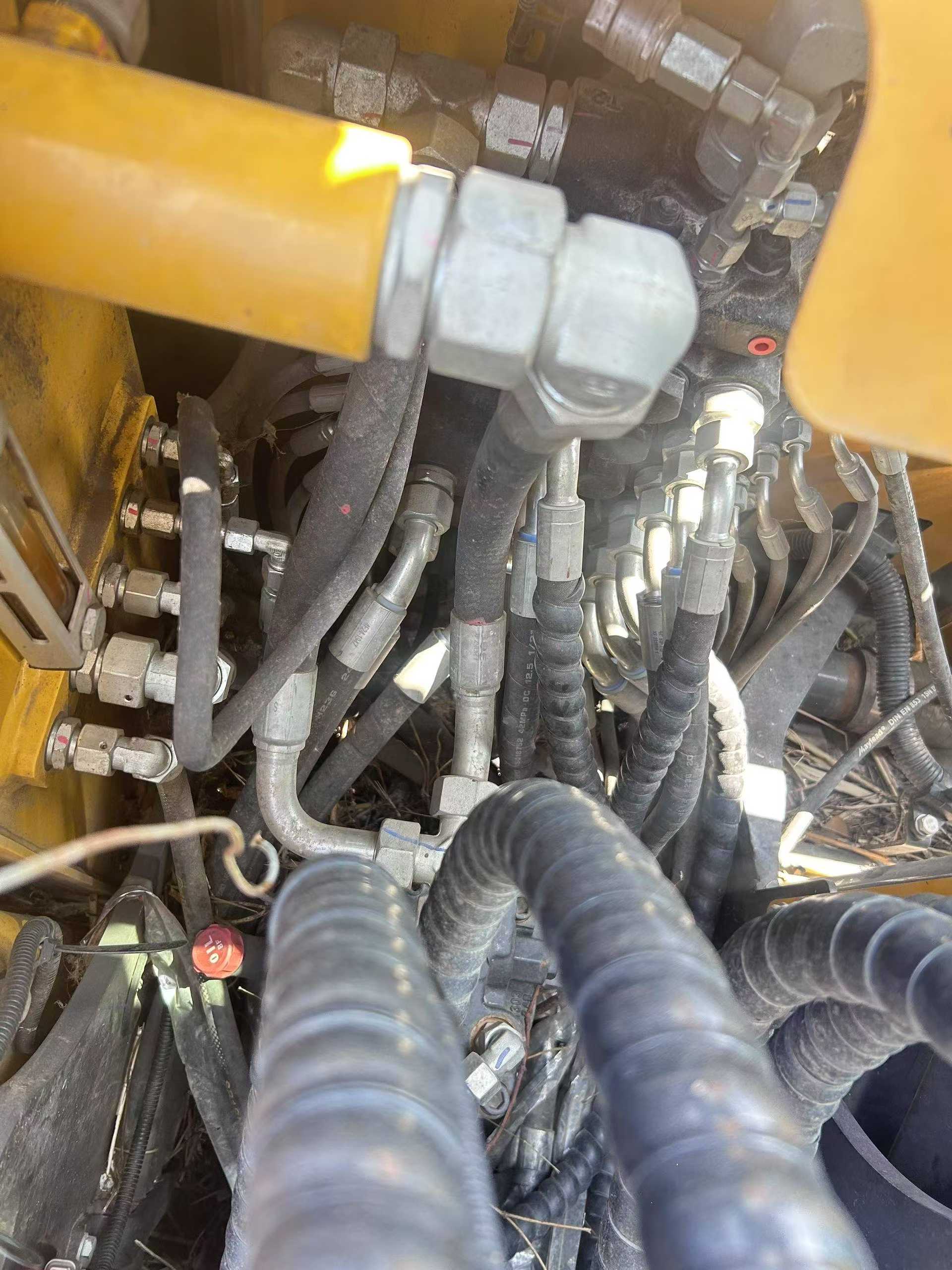

Built for relentless performance, this 2024 XCMG XE75C excavator delivers proven reliability in a compact 7-ton package. Engineered with XCMG's renowned durability standards, this workhorse combines a powerful V2607 engine producing 43kW at 2000rpm with a robust hydraulic system featuring 160 l/min flow capacity. Operating weight of 7,450kg ensures stability while maintaining a ground pressure of just 33.5kPa, protecting sensitive terrain without compromising digging force.
Productivity meets precision with impressive working parameters: 6,260mm maximum digging radius, 4,020mm digging depth, and 57kN bucket digging force tackle demanding applications. Twin travel speeds (5.4/2.9 km/h) optimize site mobility, while the 0.30m³ bucket capacity balances cycle times with payload efficiency.
Key specifications include:
- Maximum digging height: 7,085mm
- Rod digging force: 38kN
- Fuel capacity: 130L for extended operation
- Compact transport dimensions: 6,150 × 2,230 × 2,685mm
- Currently located in Shanghai, ready for immediate deployment
Backed by XCMG's manufacturing excellence, this machine represents dependable value for contractors requiring proven performance.
| Specifications | Value |
|---|---|
| No. | 1030668 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7450 |
| Bucket capacity (m³) | 0.30 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | v2607 |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 255.8/1400-1800 |
| Displacement (L) | 2.6 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.32 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 115 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 516 |
| Maximum vertical digging depth (mm) | 2920 |
