Product Description

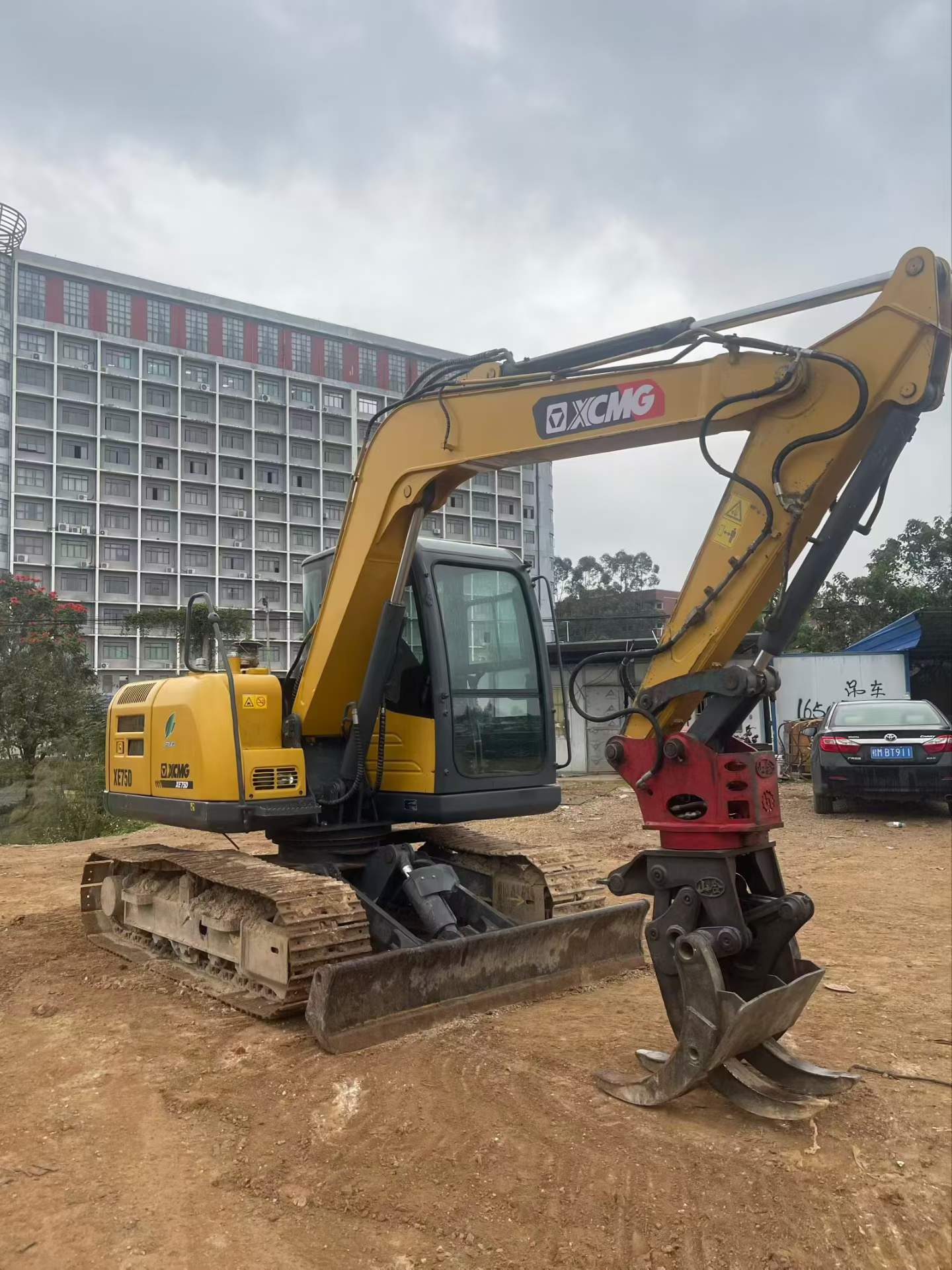

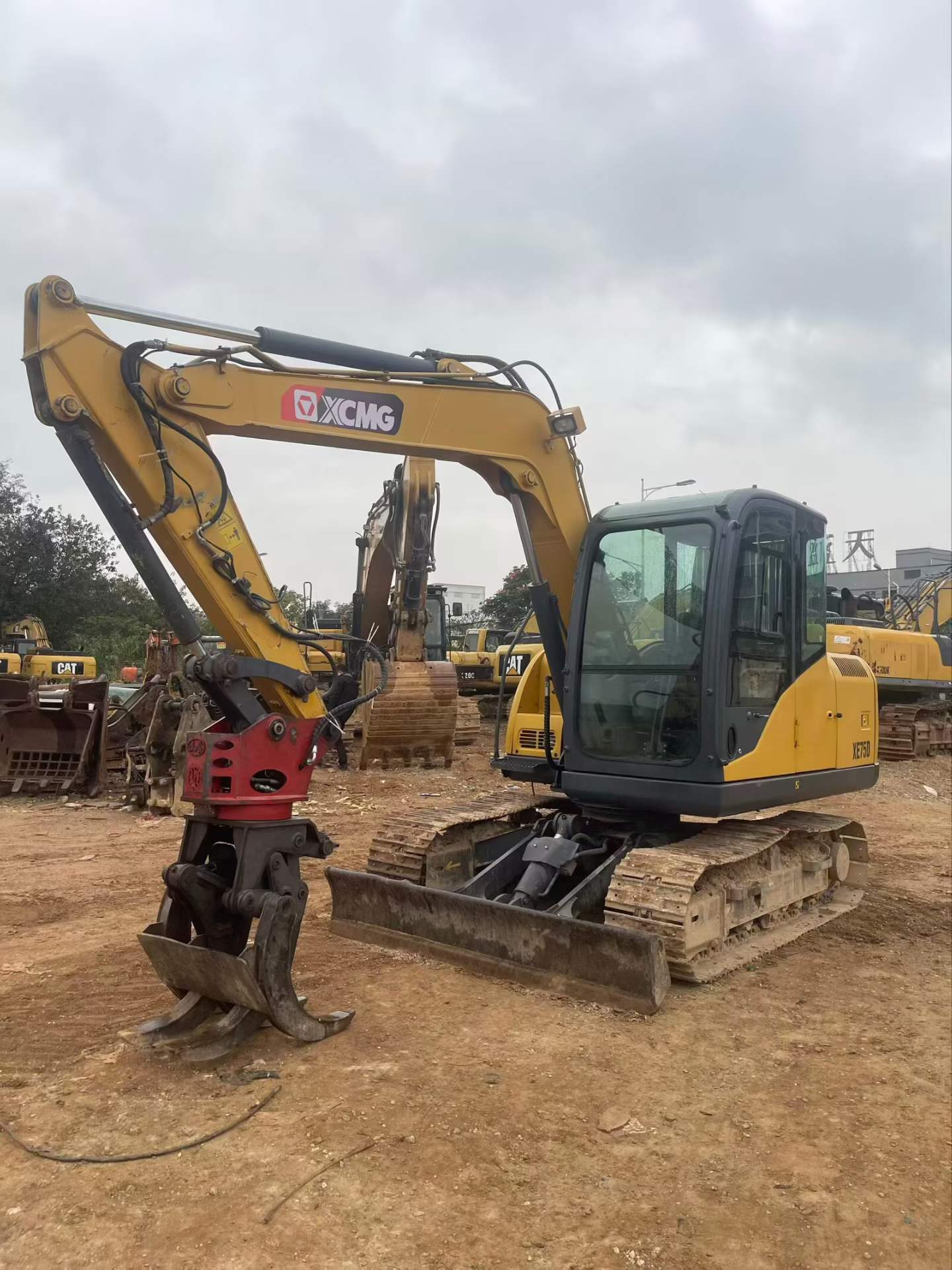

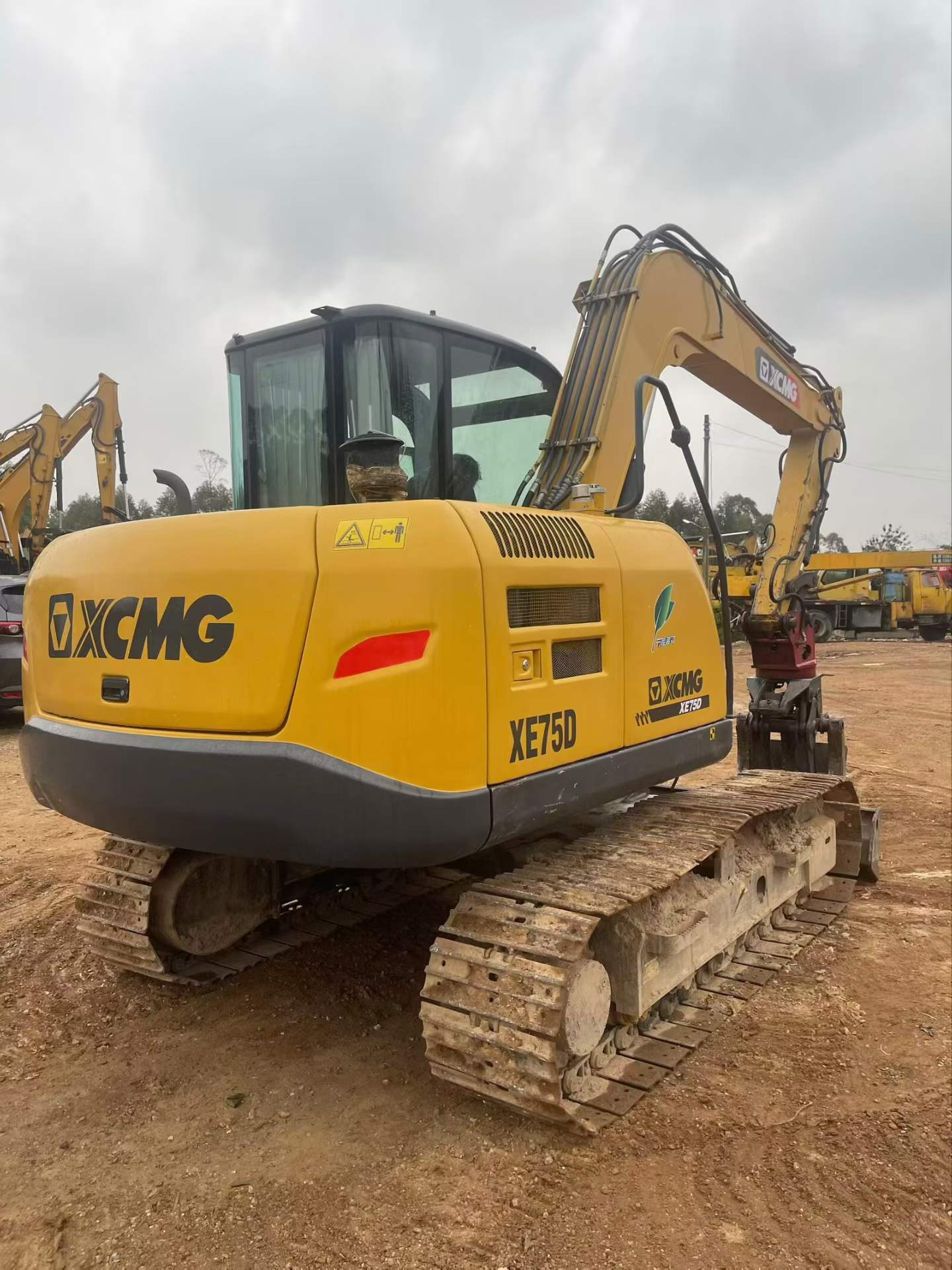

With 7 tons of working weight and a robust 4-cylinder engine, the 2016 XCMG XE75D excavator is ready for immediate deployment from 广西南宁. Featuring a maximum travel speed of 5.4 km/h and a powerful digging force of 57 kN, this machine ensures rapid and efficient on-site performance. Available now, it allows you to skip the factory lead times and get your project moving quickly. Equipped with a 0.3 m³ bucket capacity and a maximum digging depth of 4020 mm, the XE75D is ideal for a wide range of construction and excavation tasks. Fast deployment to your site means you can start work without delay, ensuring your project stays on schedule.
- Working weight: 7460 kg

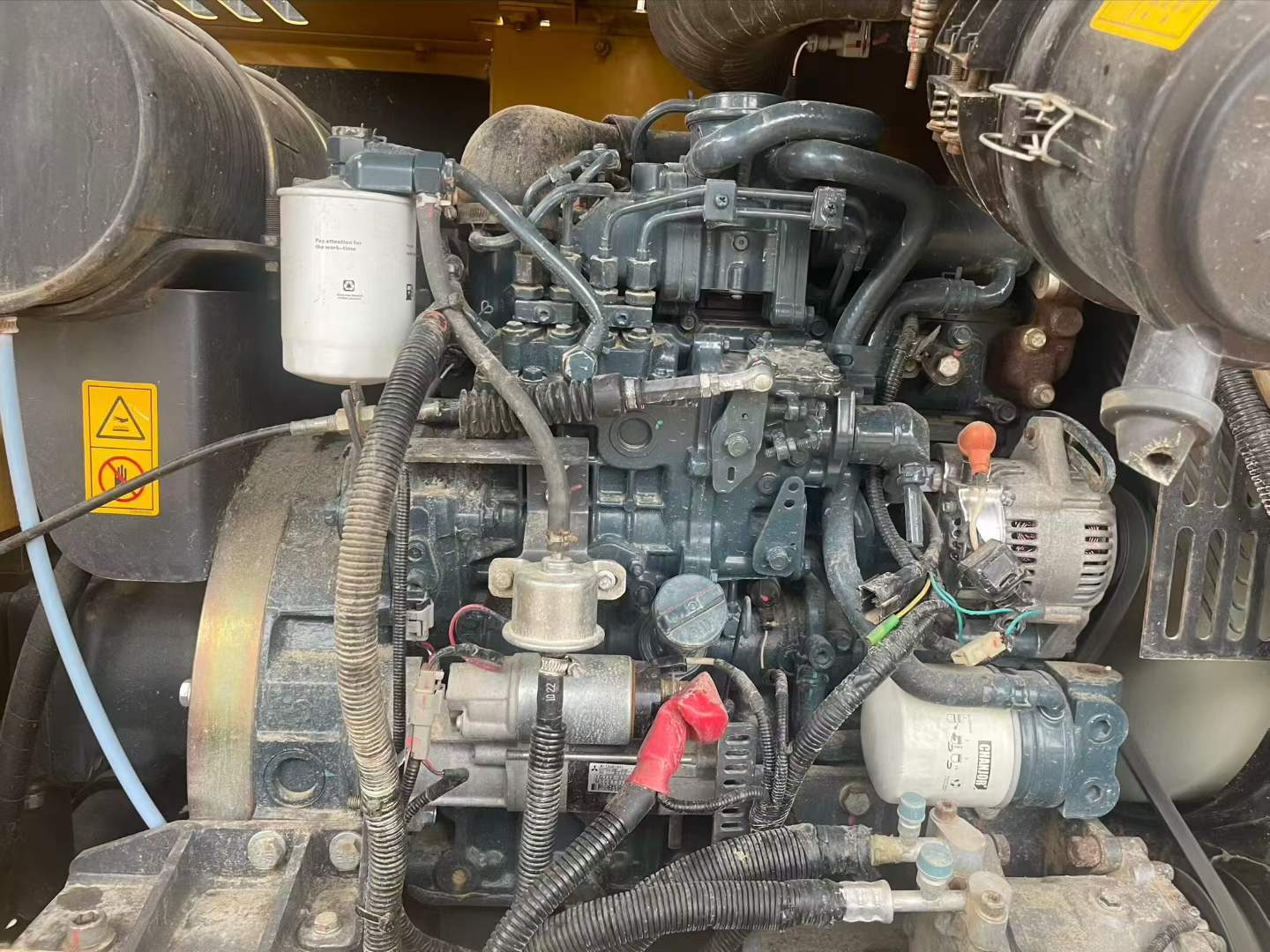

- Engine type: V2607-DI-TE3B, 43 kW at 2000 rpm
- Maximum digging depth: 4020 mm
- Travel speed: 5.4/2.9 km/h
- Fuel tank capacity: 130 L
| Specifications | Value |
|---|---|
| No. | 1003694 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Onboard width (mm) | 2070 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
| Dodging plate width × height (mm) | 2200 x 396 |
