Product Description

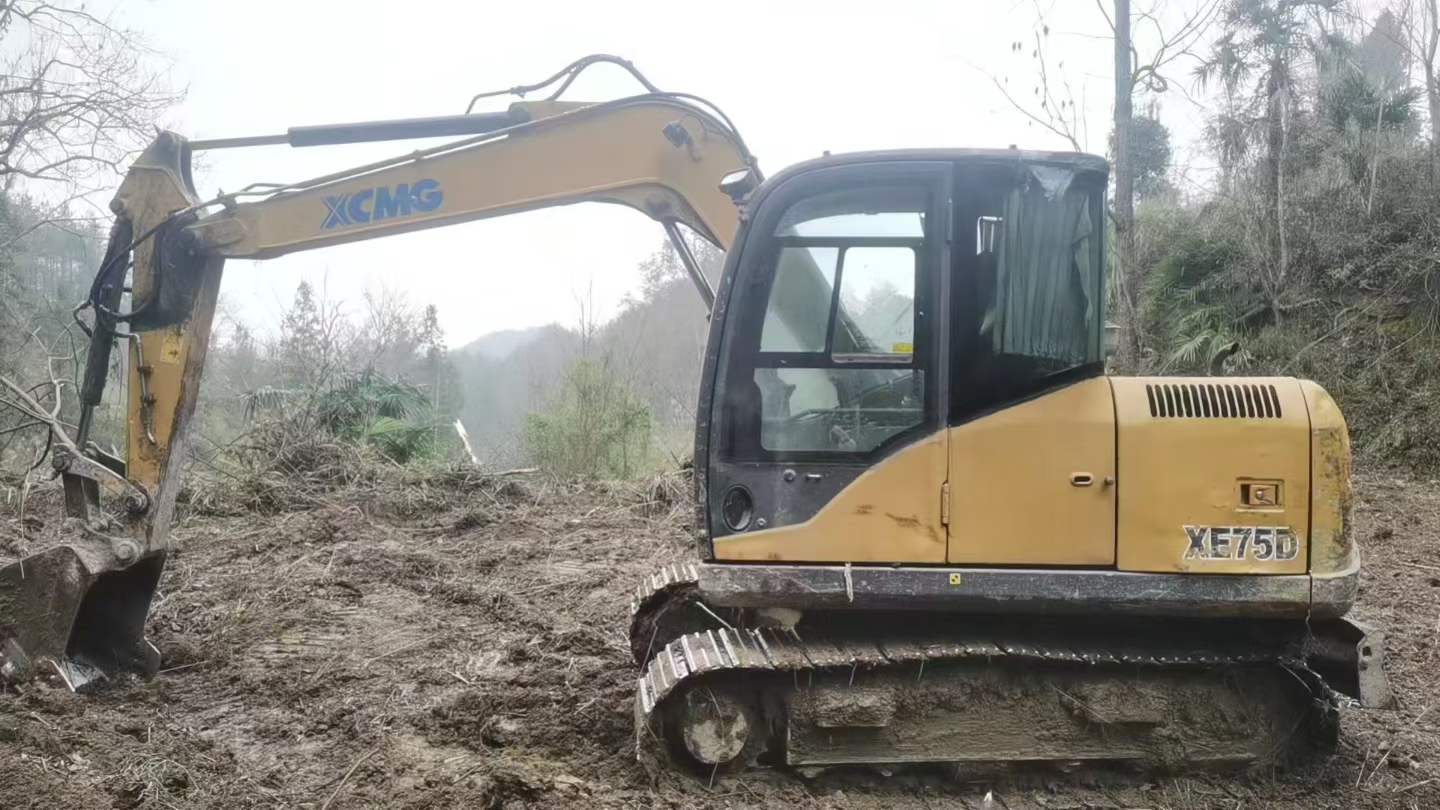

Maximize your equipment budget with this 2016 XCMG XE75D mini excavator—a proven workhorse delivering professional-grade performance at a fraction of new equipment costs. Powered by a reliable V2607-DI-TE3B engine producing 43kW at 2000rpm, this 7-ton machine handles demanding excavation tasks with 57kN bucket digging force and reaches a maximum digging depth of 4,020mm. Operating weight of 7,460kg and 0.3m³ bucket capacity make it ideal for utility work, landscaping, and construction projects requiring maneuverability without sacrificing power.

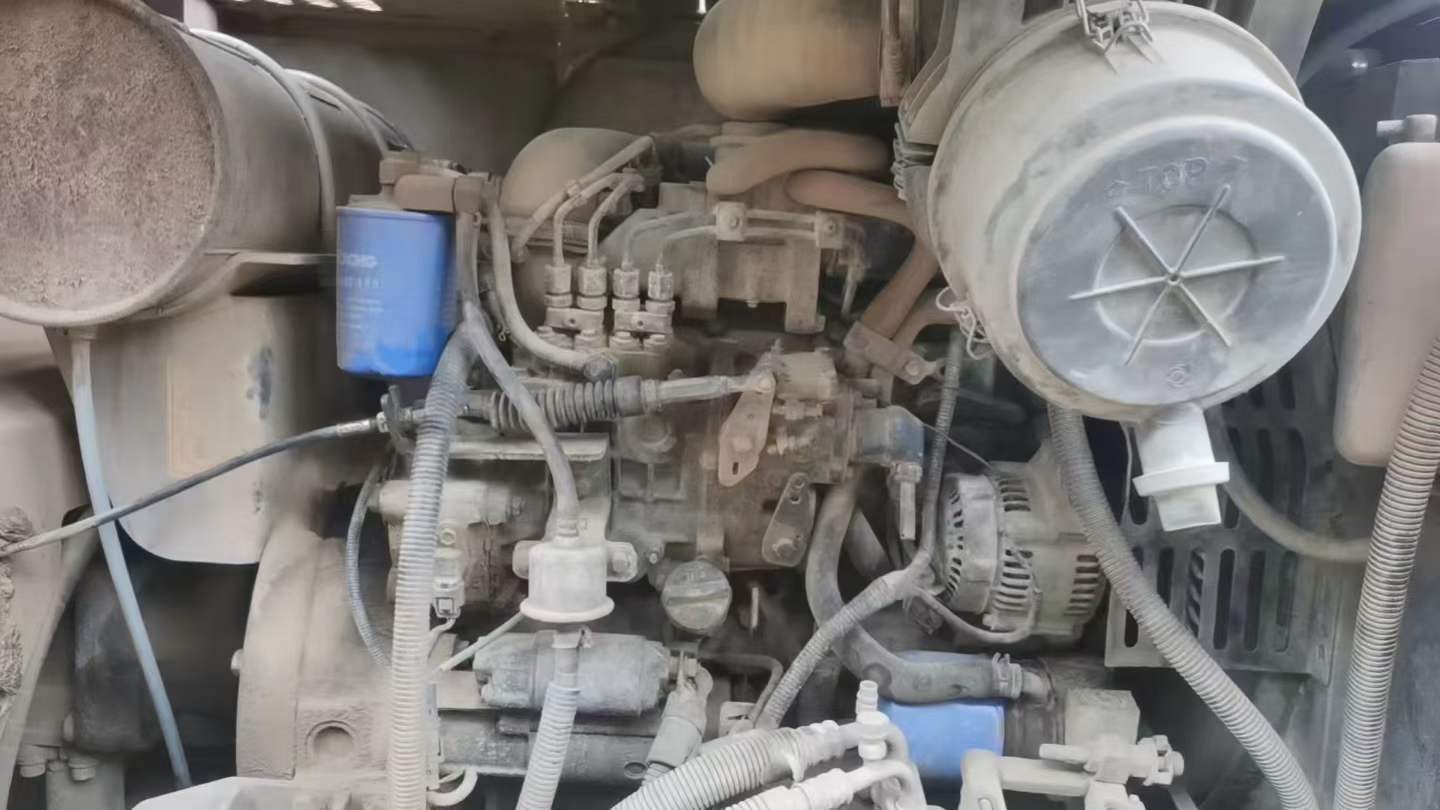

- Engine: V2607-DI-TE3B, 43kW rated power, 4-cylinder diesel
- Performance: 6,260mm maximum digging radius, 7,085mm maximum excavation height
- Hydraulics: 28MPa working circuit, 76L hydraulic tank capacity
- Mobility: 5.4km/h travel speed, 35% climbing ability, 450mm track plates
- Dimensions: 6,150mm transport length, 2,230mm width, 2,685mm height
- Origin: XCMG, Made in China
- Location: Currently in Hunan, China
Invest smartly in pre-owned equipment that delivers reliable productivity with
| Specifications | Value |
|---|---|
| No. | 1025298 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 43/2000 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Onboard width (mm) | 2070 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
| Dodging plate width × height (mm) | 2200 x 396 |
