Product Description

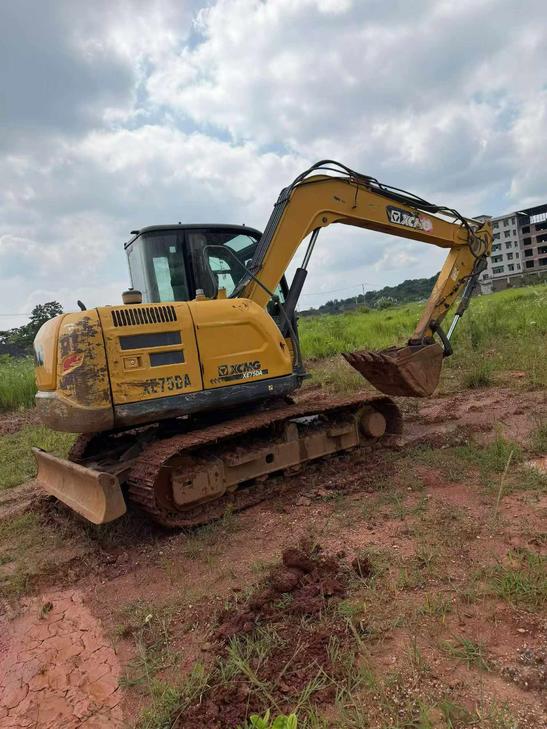

2019 XCMG XE75DA hydraulic excavator available from Hunan, China. This 7.5-ton class machine from April 2019 production demonstrates well-maintained operational condition with solid undercarriage integrity. Factory-original XCMG configuration ensures parts availability and service support across international markets.
Current owner offers direct sales with on-site inspection and test operation available to qualified buyers. Machine presents minimal wear indicators consistent with standard commercial deployment. Undercarriage components, hydraulic systems, and structural elements meet operational standards for immediate deployment.
- Manufacturing Date: April 2019
- Operating Weight Class: 7.5 tons
- Single-owner equipment history
- Location: Hunan Province, China
- Available for immediate inspection and test operation
- Suitable for construction, excavation, and material handling applications
Pricing reflects current market position for comparable equipment. Contact for detailed specifications, service records, and arranging on-site evaluation.
| Specifications | Value |
|---|---|
| No. | 1084860 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
