Product Description

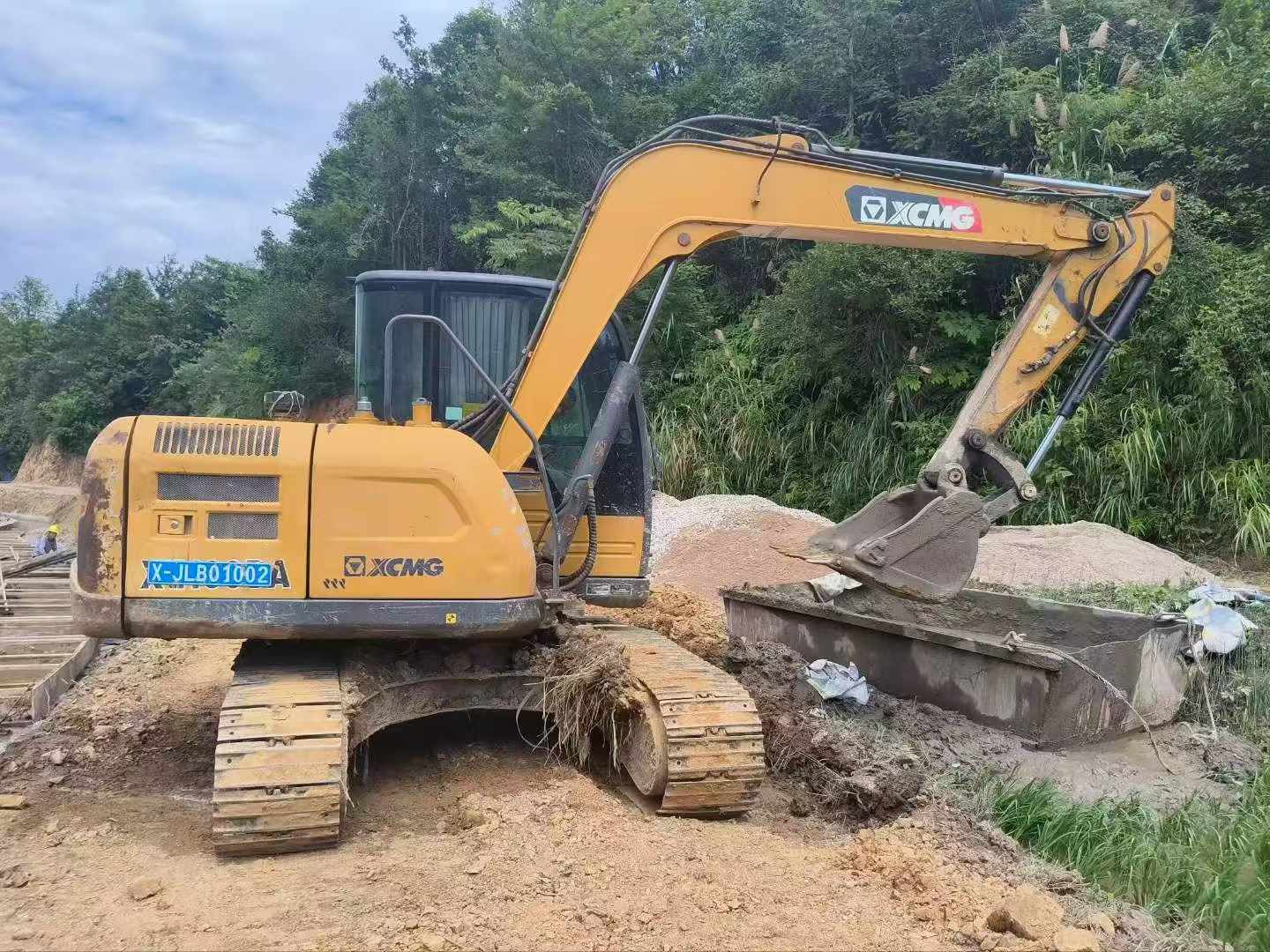

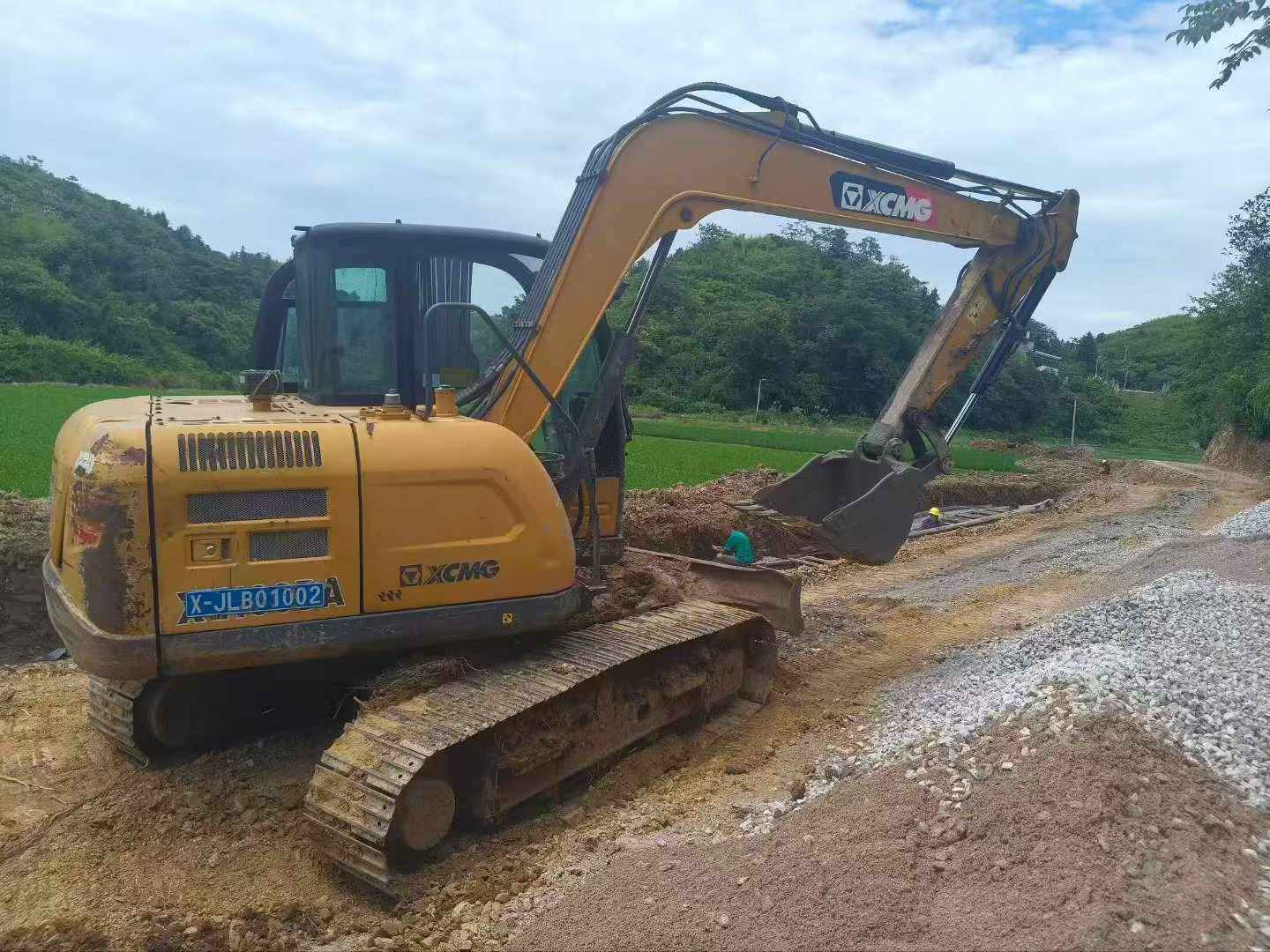

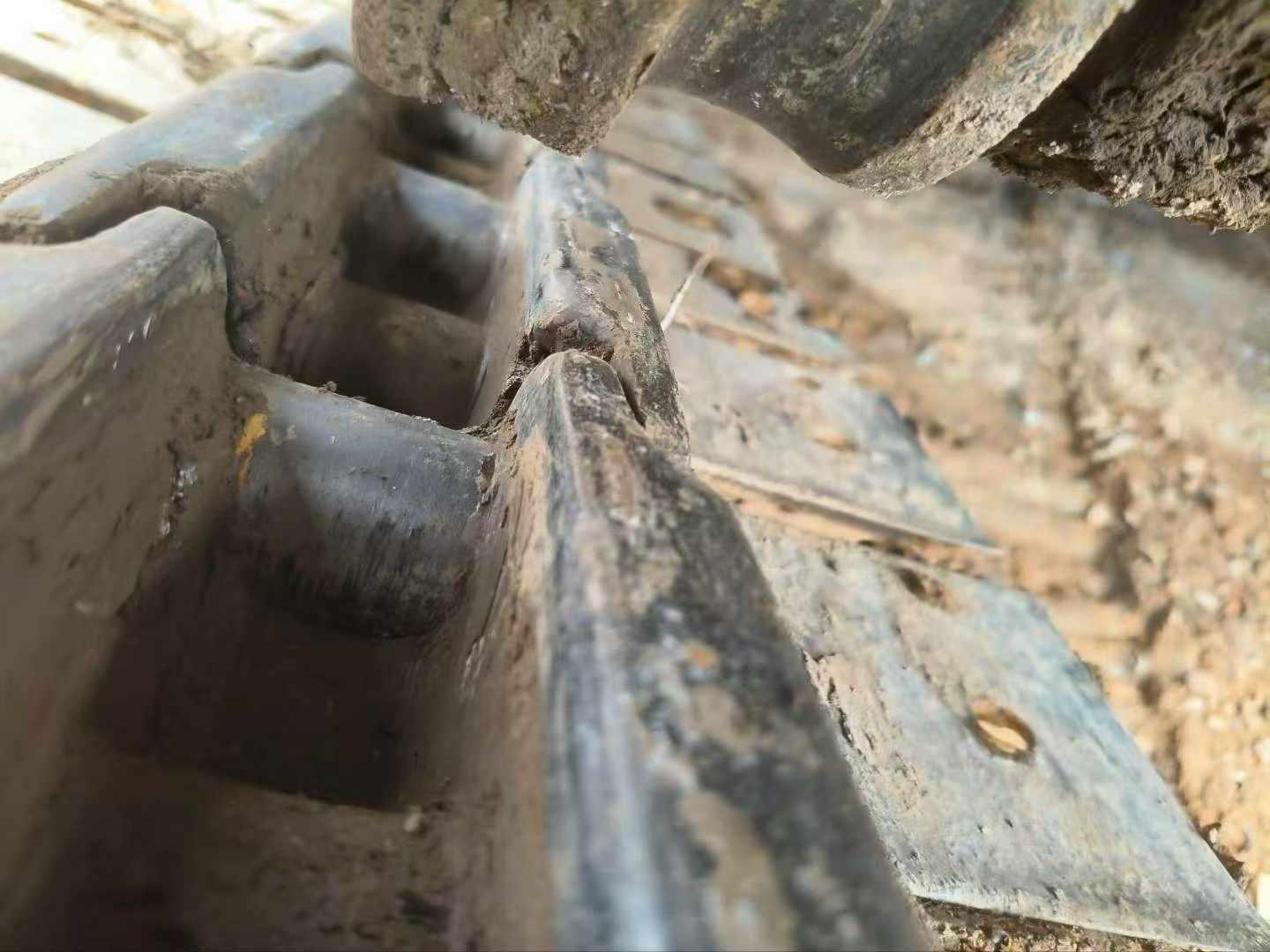

This 2019 XCMG XE75DA hydraulic excavator represents a reliable mid-size solution for contractors and earthmoving operations. Currently located in Hunan, China, this machine demonstrates excellent operational condition with verified performance across all major components. The unit shows minimal wear and maintains proper sealing integrity throughout critical systems, reflecting careful operational use and consistent maintenance practices.
Key features of this excavator include:
- 7.5-ton operating class suitable for various construction applications
- XCMG's proven hydraulic system delivering efficient digging performance
- Major components showing no leakage, confirmed through inspection
- Low operating hours relative to model year
- Ready for immediate deployment to your worksite
This XE75DA offers dependable performance for trenching, grading, and general excavation work. Available for purchase at competitive pricing. International shipping and export documentation can be arranged. Contact us for detailed specifications, additional photographs, and delivery options to your location.
| Specifications | Value |
|---|---|
| No. | 1089430 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

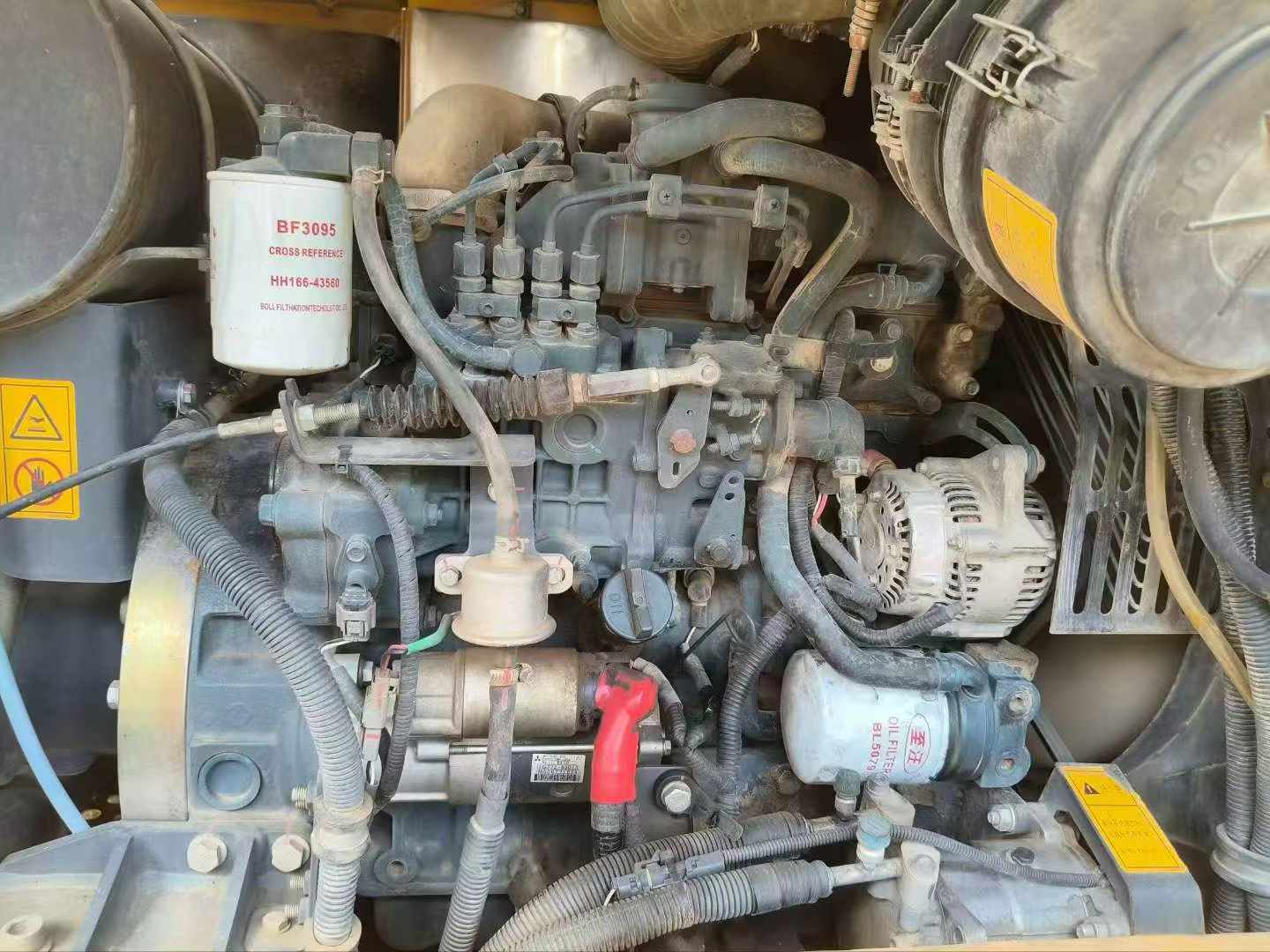

| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
