Product Description

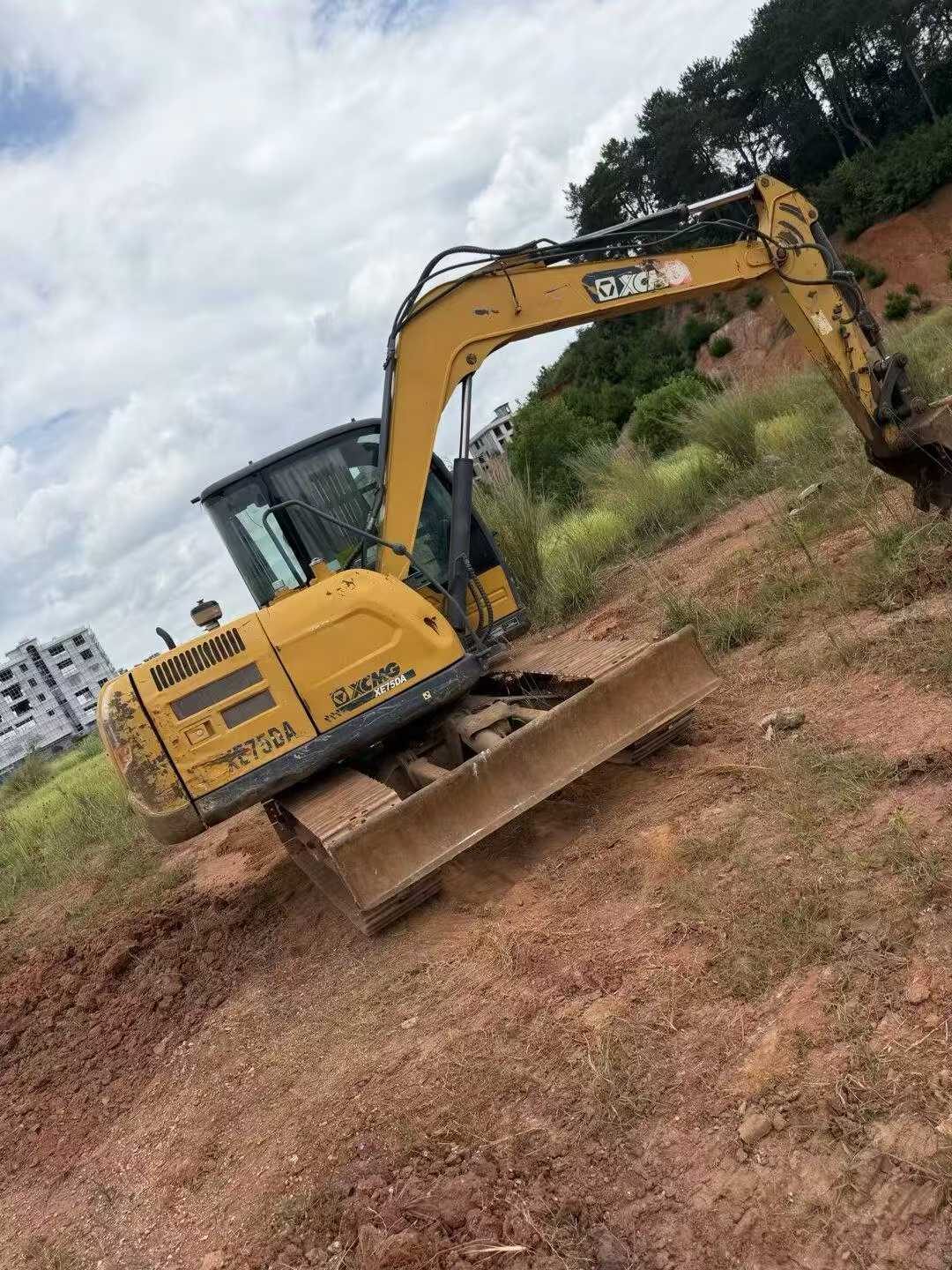

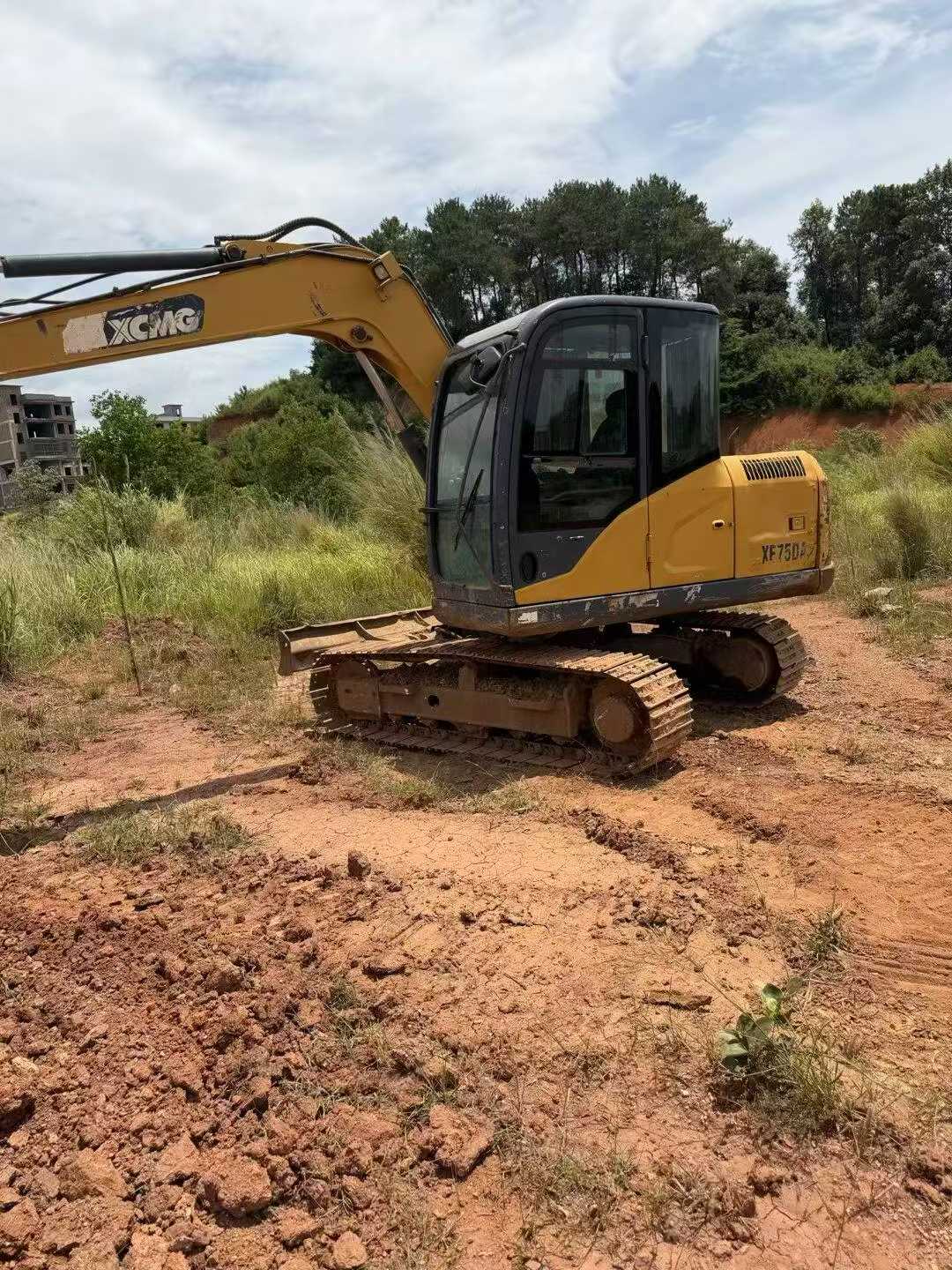

Discover the reliability and efficiency of the 2019 XCMG XE75DA, a robust excavator currently available in Hunan, China. This machine is offered at a competitive price just over 80,000 RMB, making it an excellent value for your investment. As a one-owner vehicle, this XE75DA has been meticulously maintained, ensuring that it meets all operational standards without the need for additional inspections. The genuine mileage and condition are accurately represented, providing you with a trustworthy piece of equipment ready for immediate deployment on your projects.
- Year: 2019
- Brand: XCMG
- Model: XE75DA
- Location: Hunan, China
- Price: Just over 80,000 RMB
| Specifications | Value |
|---|---|
| No. | 1115948 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

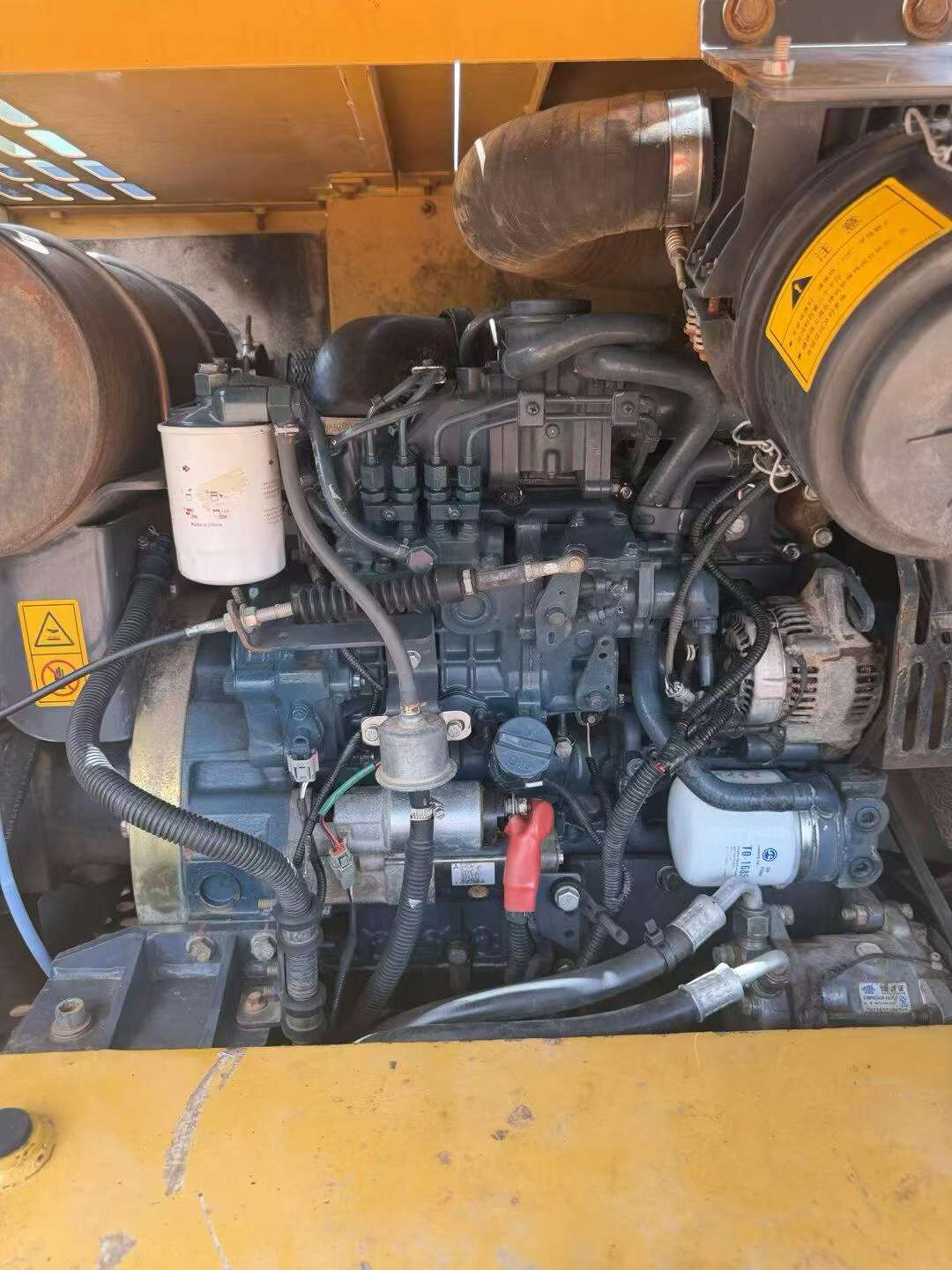

| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
