Product Description

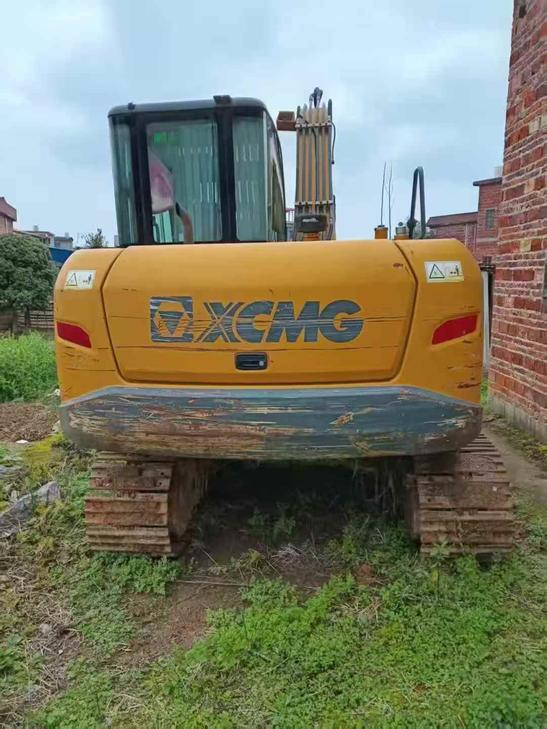

With a robust 7-ton working weight and powered by a V2607-DI-TE3B engine, the XCMG XE75DA excavator, located in 贵州, offers reliable performance. Delivering 42.4 kW at 2000 rpm, this machine ensures efficient operation on various terrains. Featuring a 0.3 m³ bucket capacity and a maximum digging depth of 4020 mm, it excels in diverse construction tasks.
- Equipped with a backhoe bucket, providing strong digging forces of 57 kN and 38 kN for the bucket and rod respectively.
- Ensures operator comfort with excellent cabin visibility and ergonomic controls, enhancing precision and safety.
- Boasts a maximum travel speed of 5.4 km/h and a climbing ability of 70%, making it highly versatile on different job sites.
- Stability is maintained with a track gauge of 1750 mm and a minimum ground clearance of 380 mm, ensuring steady operation even on uneven surfaces.
| Specifications | Value |
|---|---|
| No. | 1028069 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
