Product Description

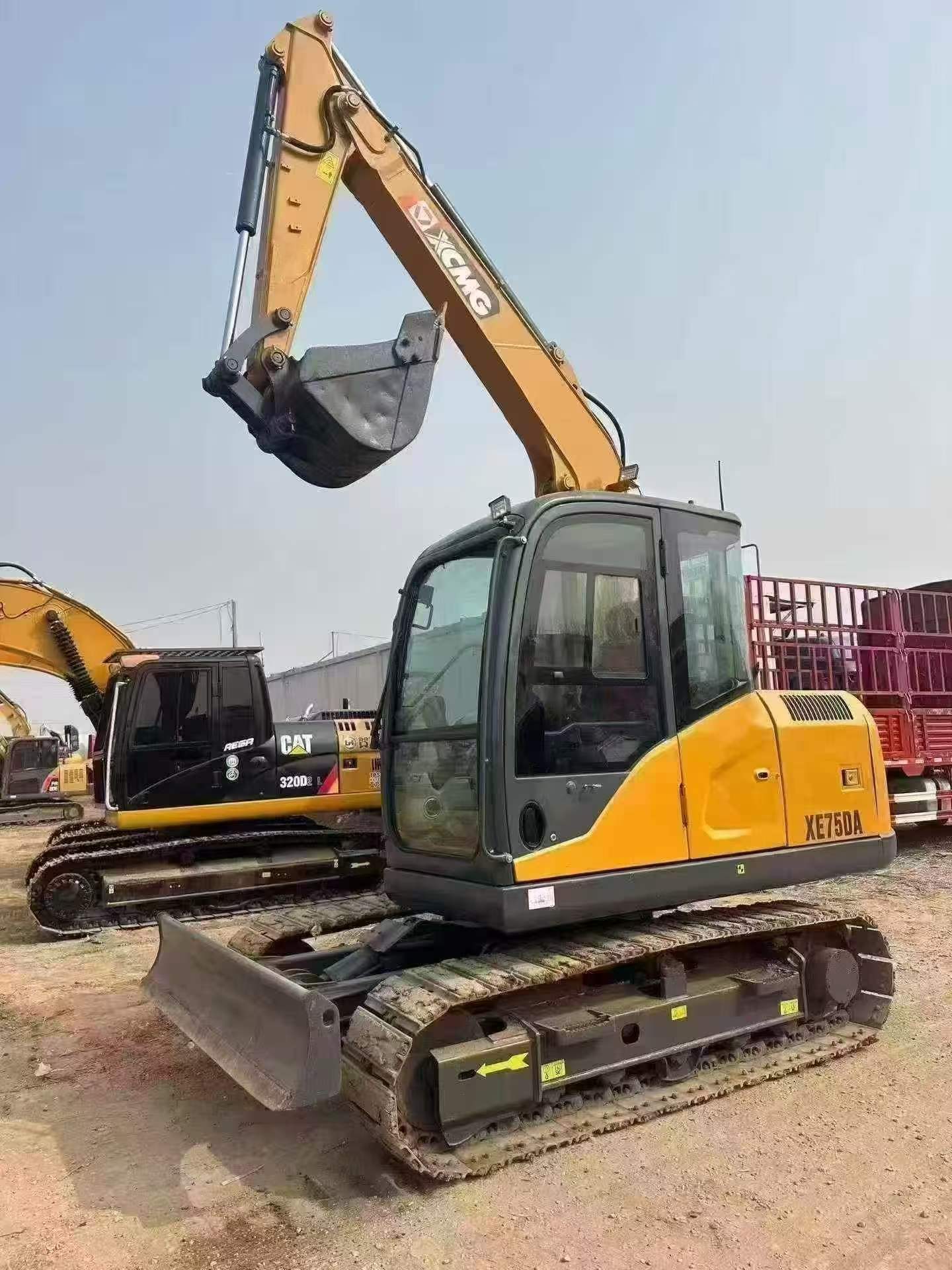

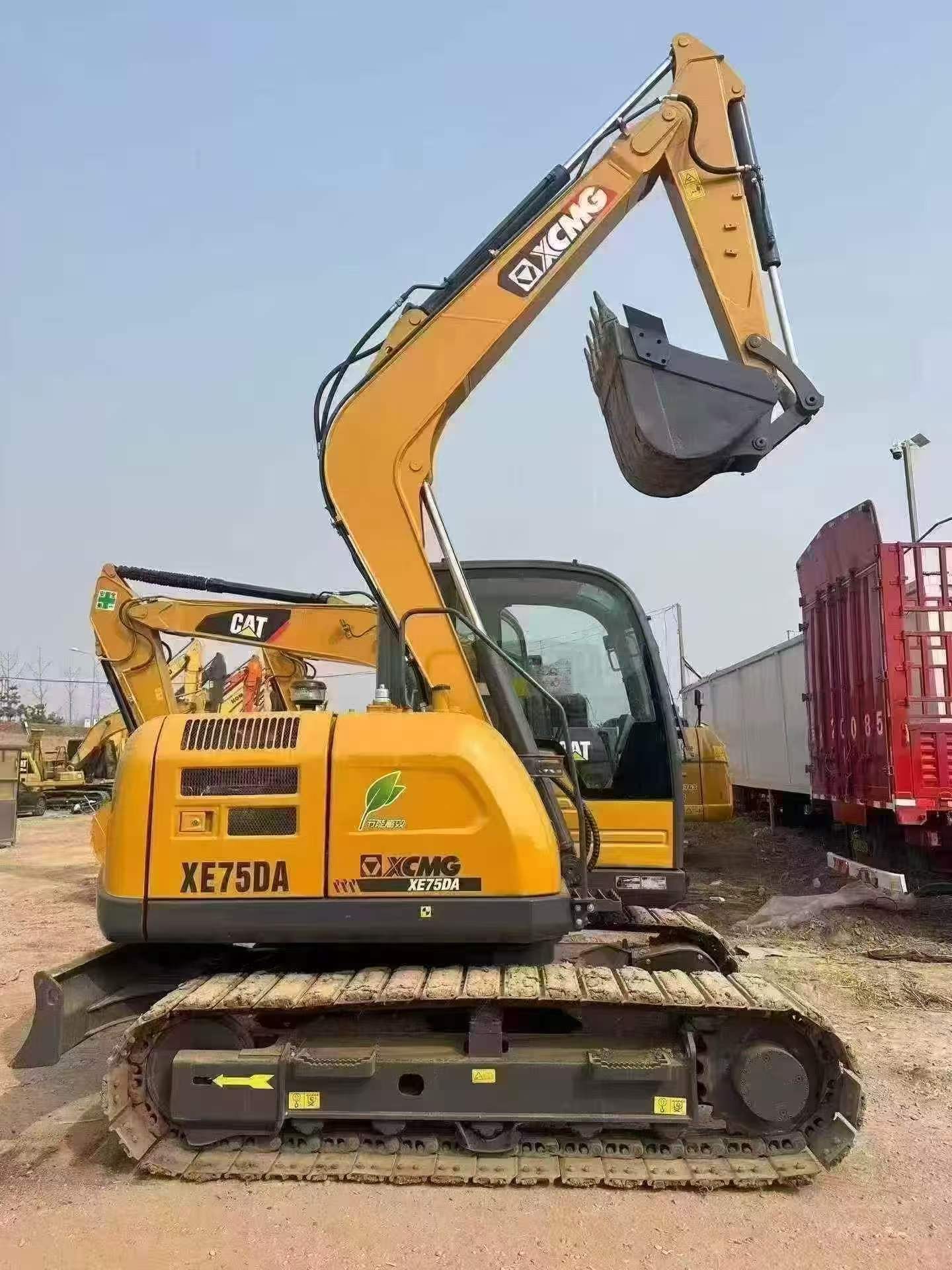

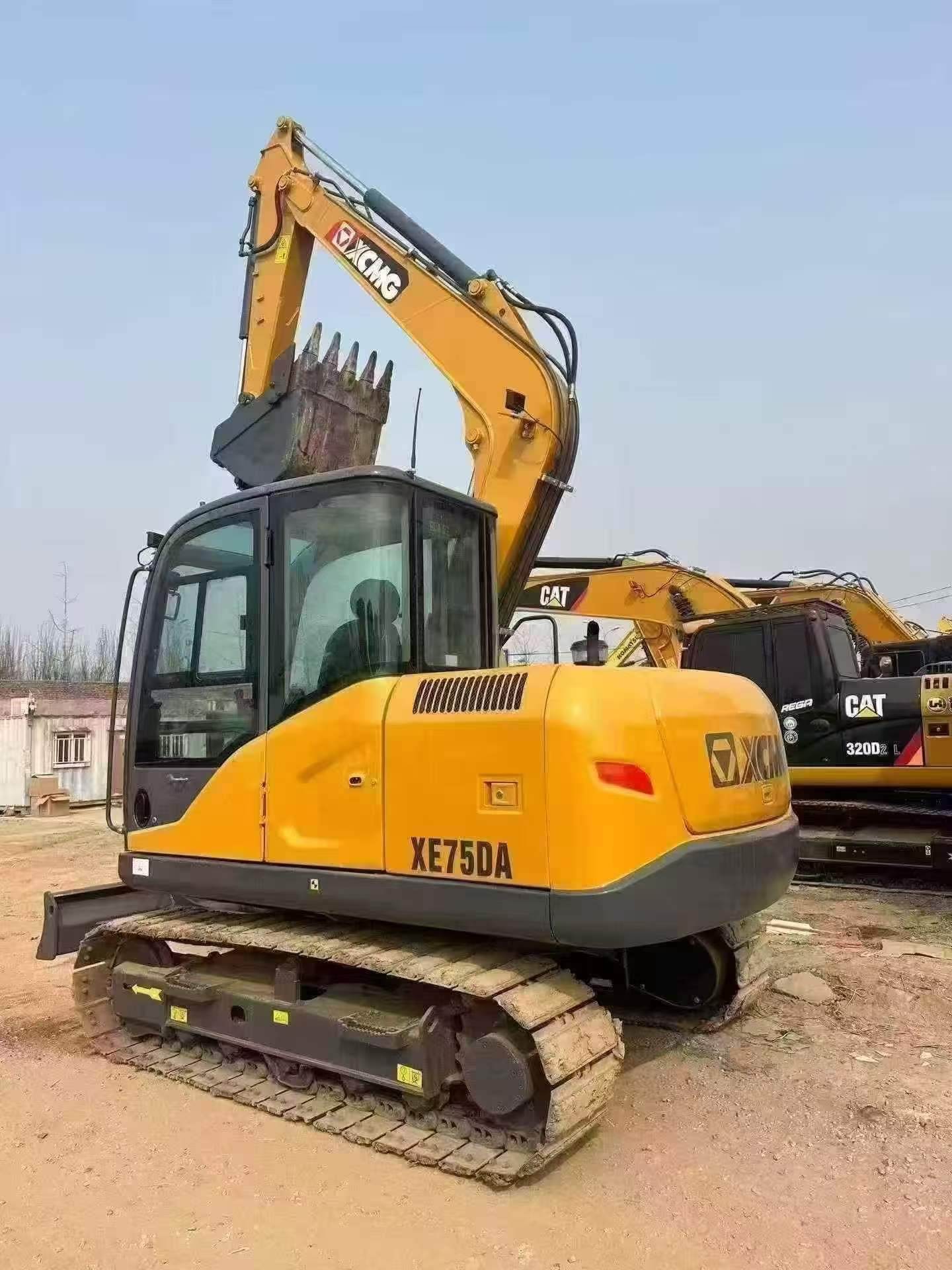

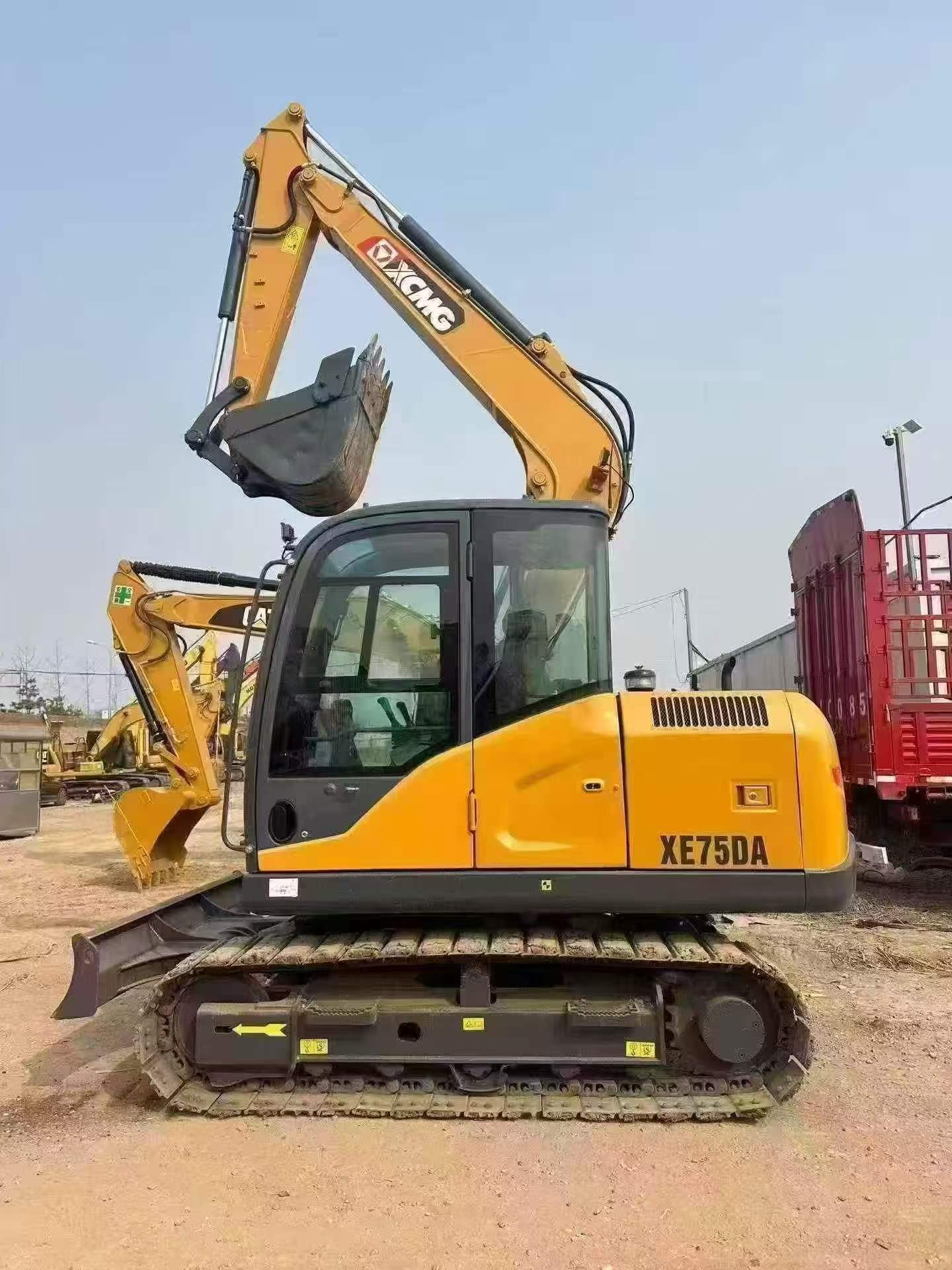

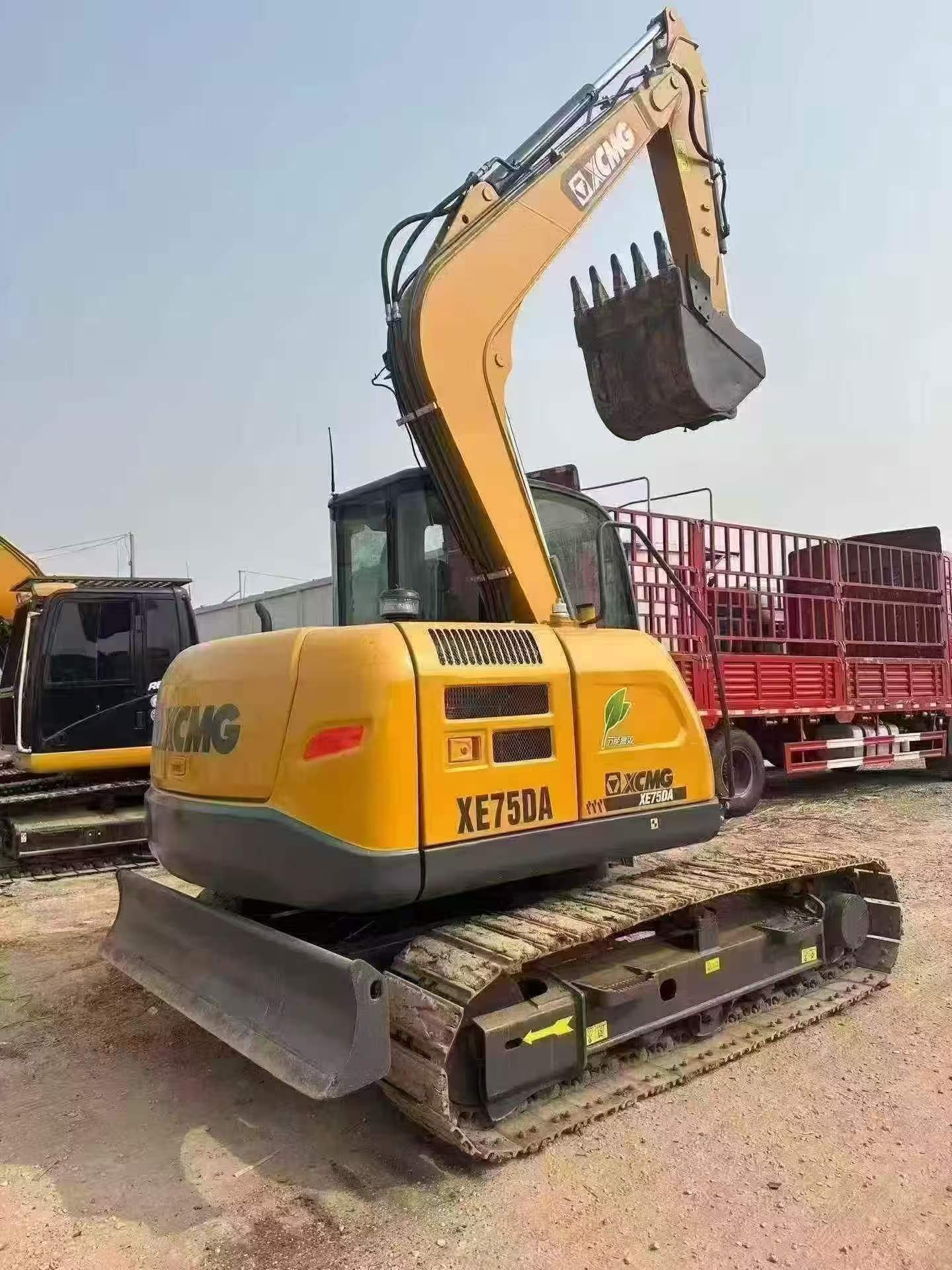

Discover the 2020 XCMG XE75DA, a robust and reliable excavator available for export. This machine, currently located in Peking, China, is sourced directly from the original factory, ensuring you receive a high-quality piece of equipment. The XE75DA is known for its excellent condition and performance, making it an ideal choice for various construction and excavation projects. Designed with efficiency and durability in mind, this model delivers consistent results and is ready to meet the demands of your job site.
- Year: 2020
- Brand: XCMG
- Model: XE75DA
- Location: Peking, China
- Condition: Excellent, sourced from the original factory
| Specifications | Value |
|---|---|
| No. | 1133837 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

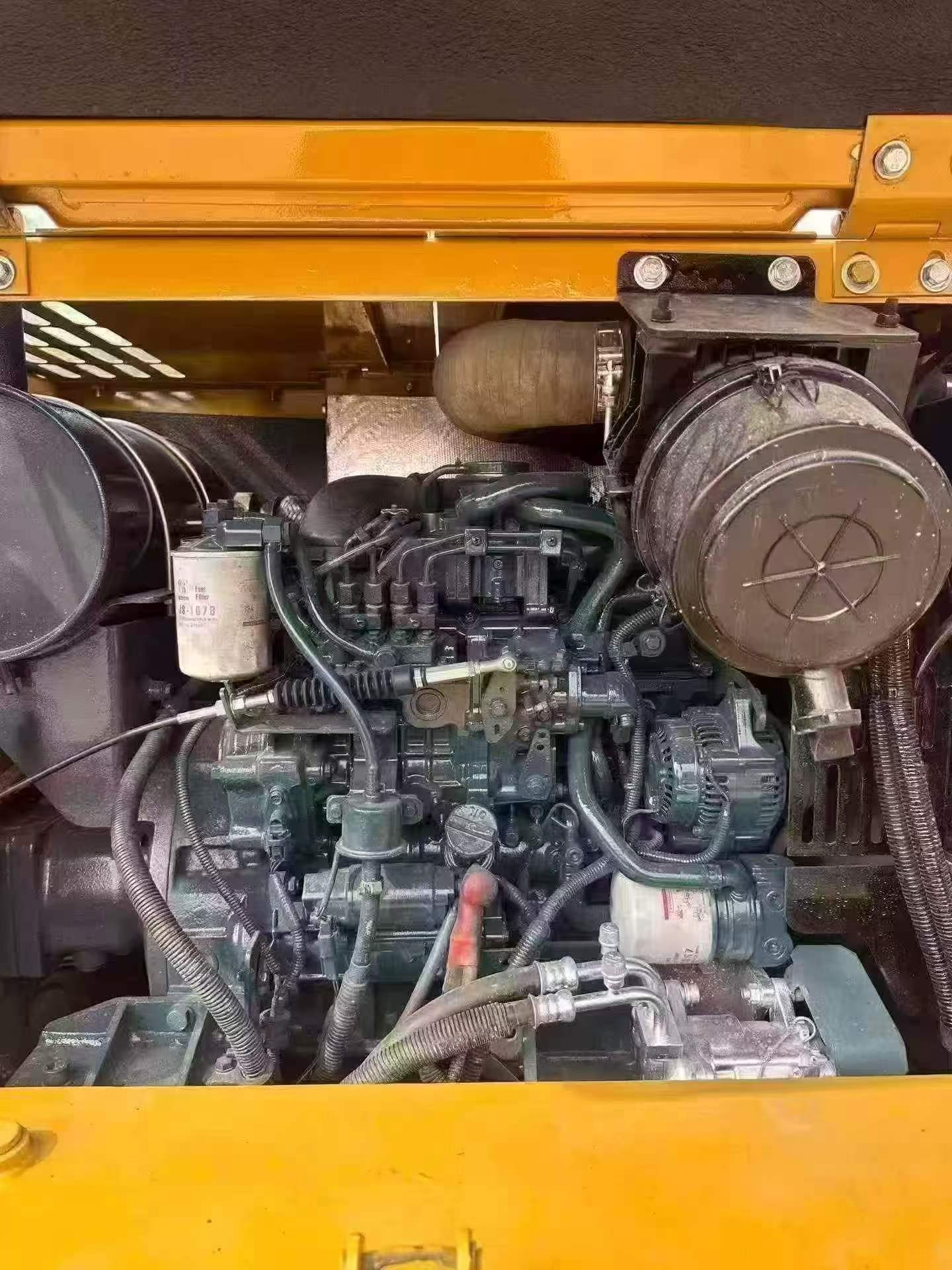

| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
