Product Description

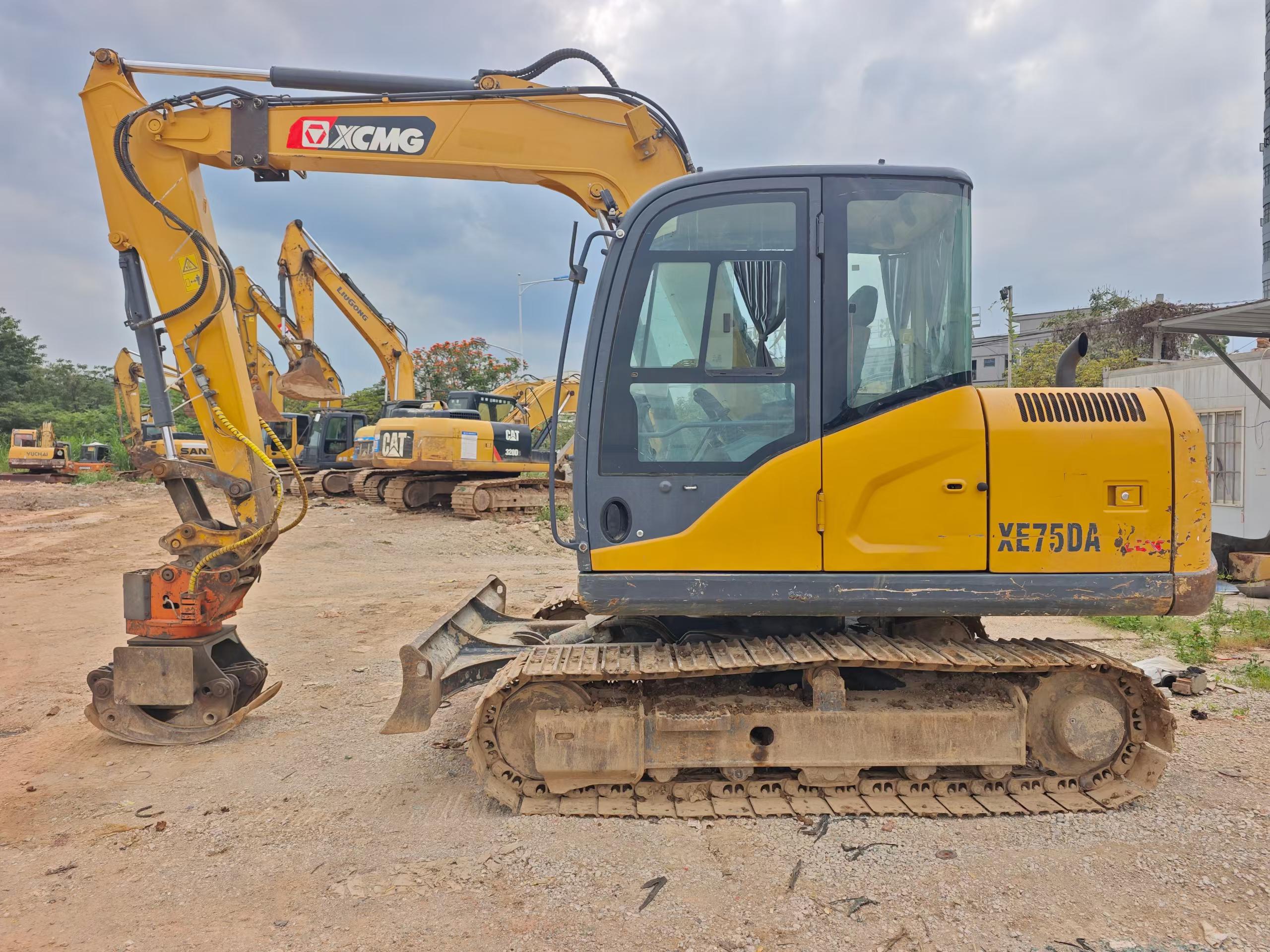

Discover the 2021 XCMG XE75DA, a robust and versatile excavator located in Guangxi, China. This machine has been meticulously maintained with genuine 5100 operational hours, making it a reliable choice for your construction needs. Equipped with an extended boom, a hydraulic clamp, and a quick coupler, this excavator is designed to handle a variety of tasks efficiently. The inclusion of a winch enhances its capability, making it an indispensable tool for forestry and other demanding applications. Priced affordably, this XE75DA is a cost-effective solution for enhancing productivity and performance on your worksite.
- Year: 2021
- Brand: XCMG
- Model: XE75DA

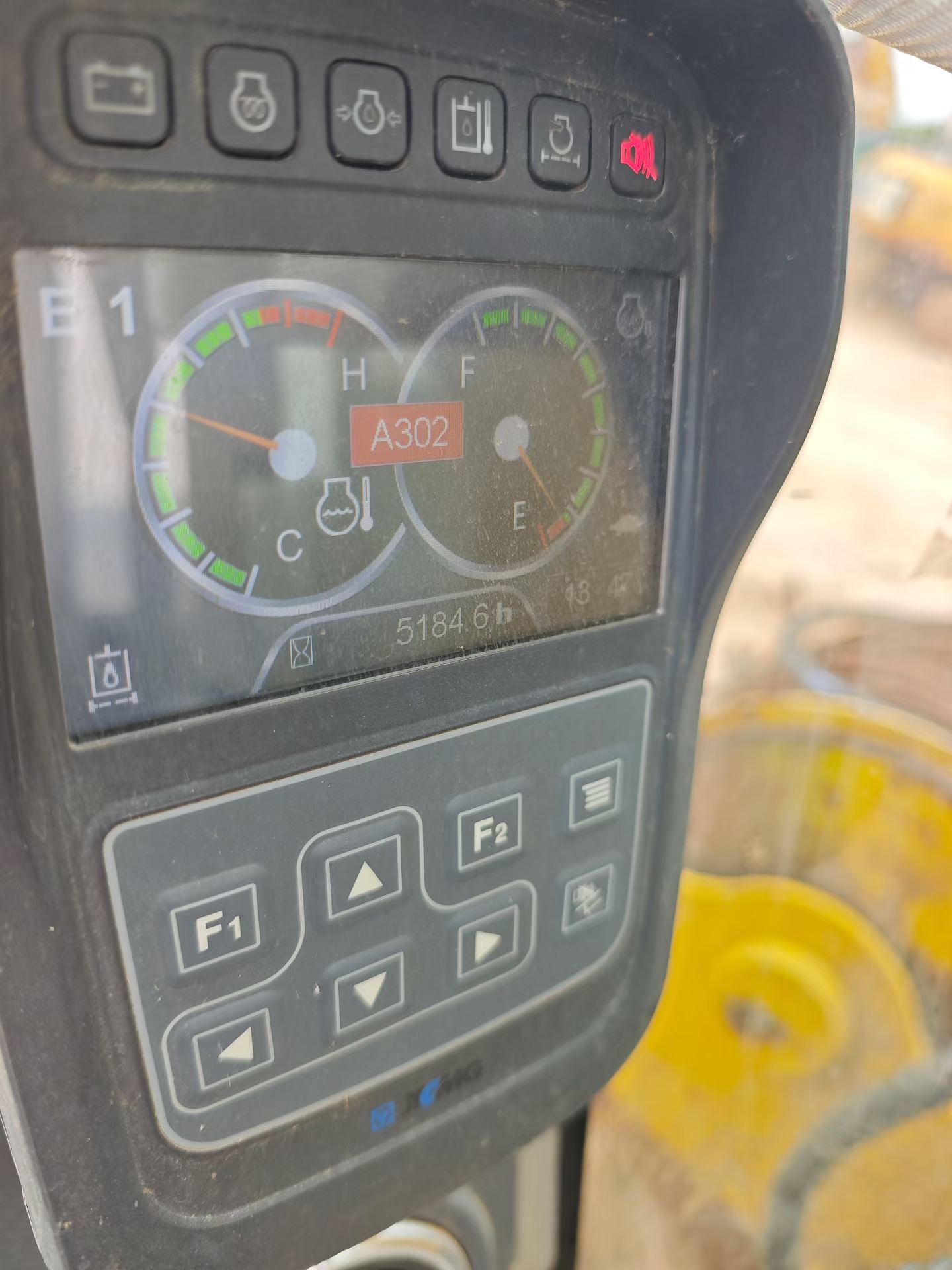

- Operational Hours: 5100
- Features: Extended Boom, Hydraulic Clamp, Quick Coupler, Winch
- Location: Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1100472 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
