Product Description

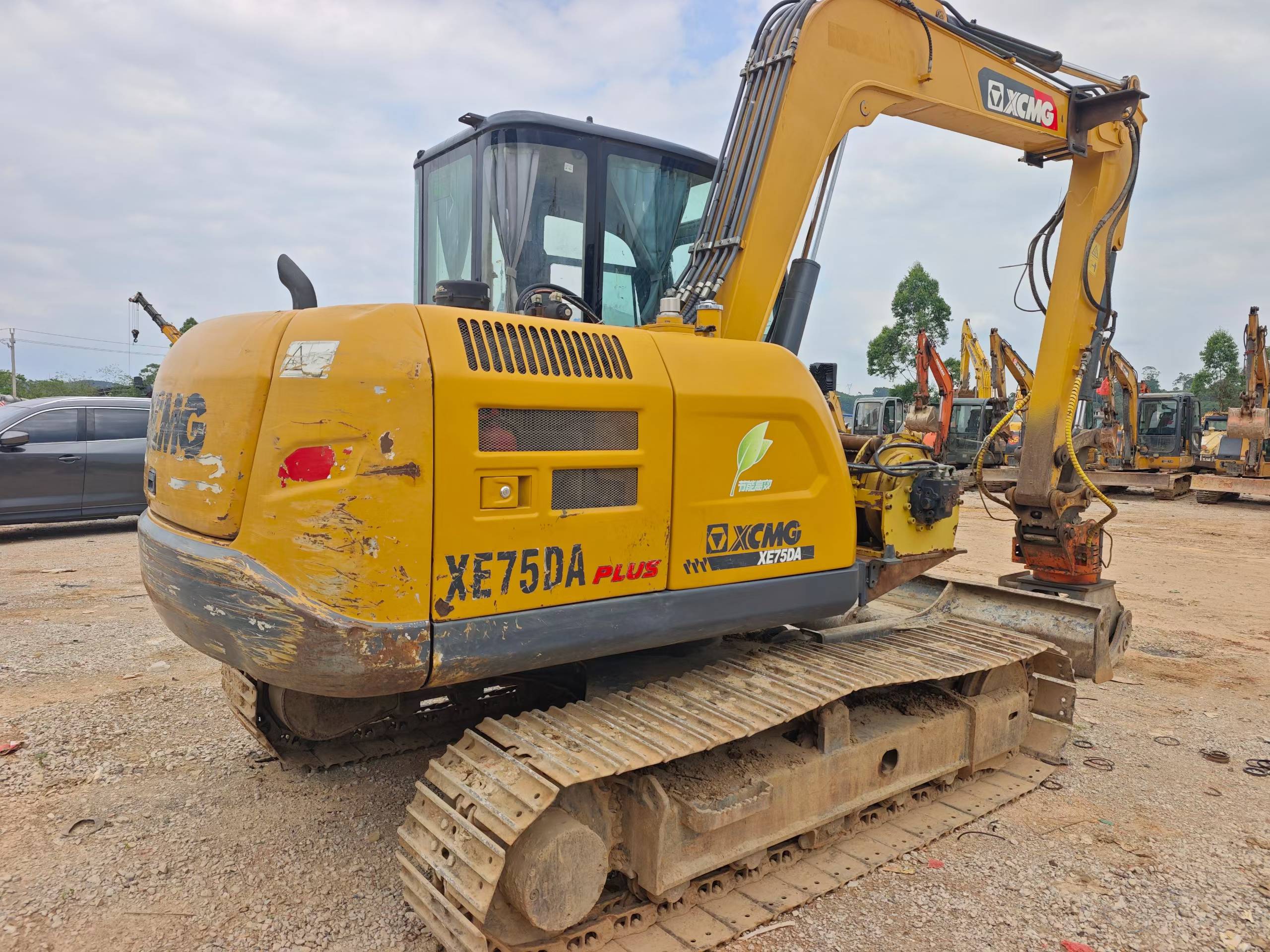

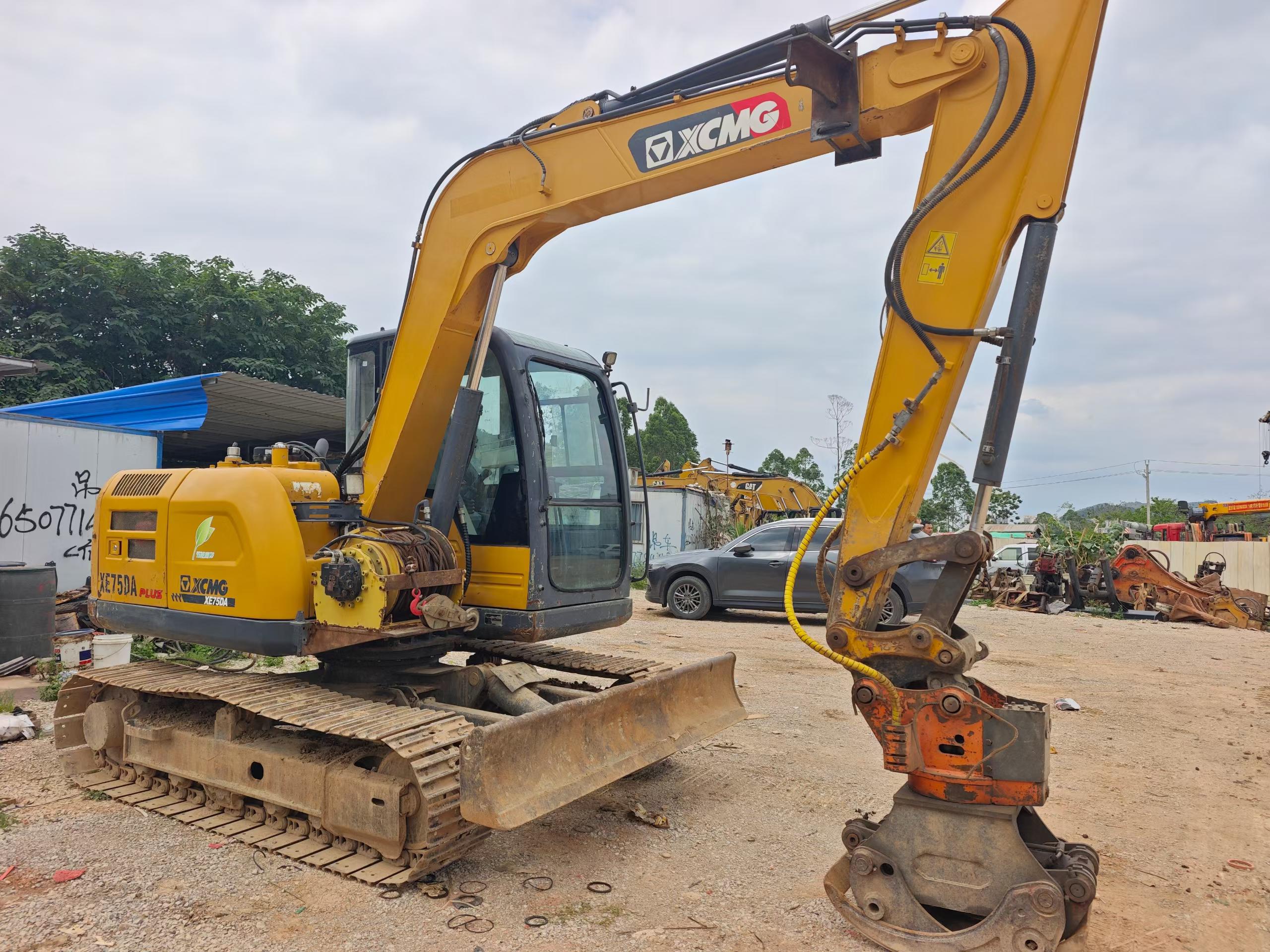

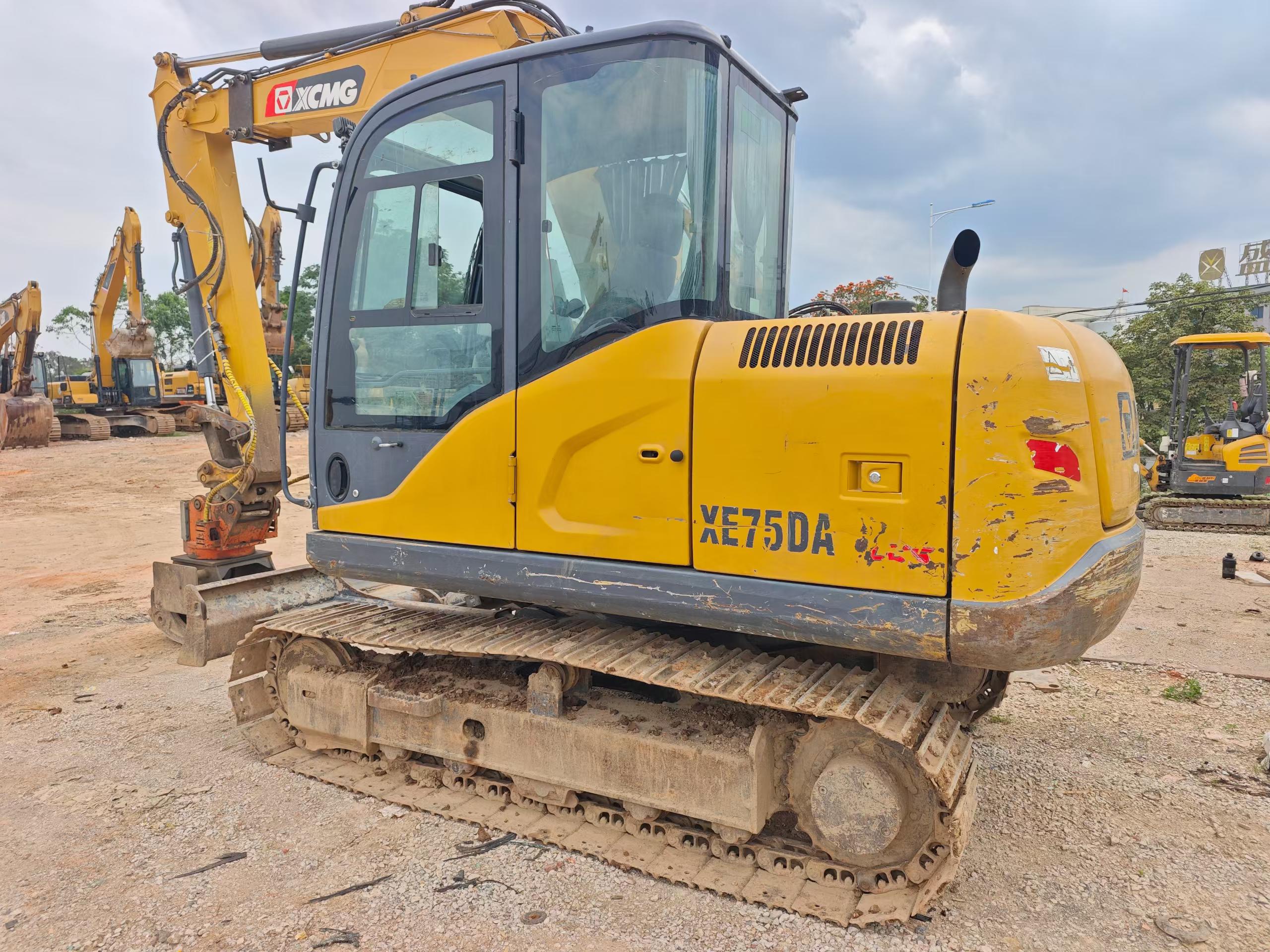

Discover the 2021 XCMG XE75DA, a robust and versatile excavator currently available in Guangxi, China. With a genuine 5100 operational hours, this machine has proven its reliability and durability in various industrial settings. Equipped with an extended boom, it offers enhanced reach and flexibility for diverse applications. Additional features include a quick coupler for easy attachment changes, a gripper for handling irregular objects, and a winch, making it an invaluable asset for forestry and construction projects. Priced competitively at just over ten thousand, this XE75DA is a cost-effective solution for businesses looking to boost productivity without compromising on quality.
- Year: 2021
- Brand: XCMG
- Model: XE75DA
- Location: Guangxi, China

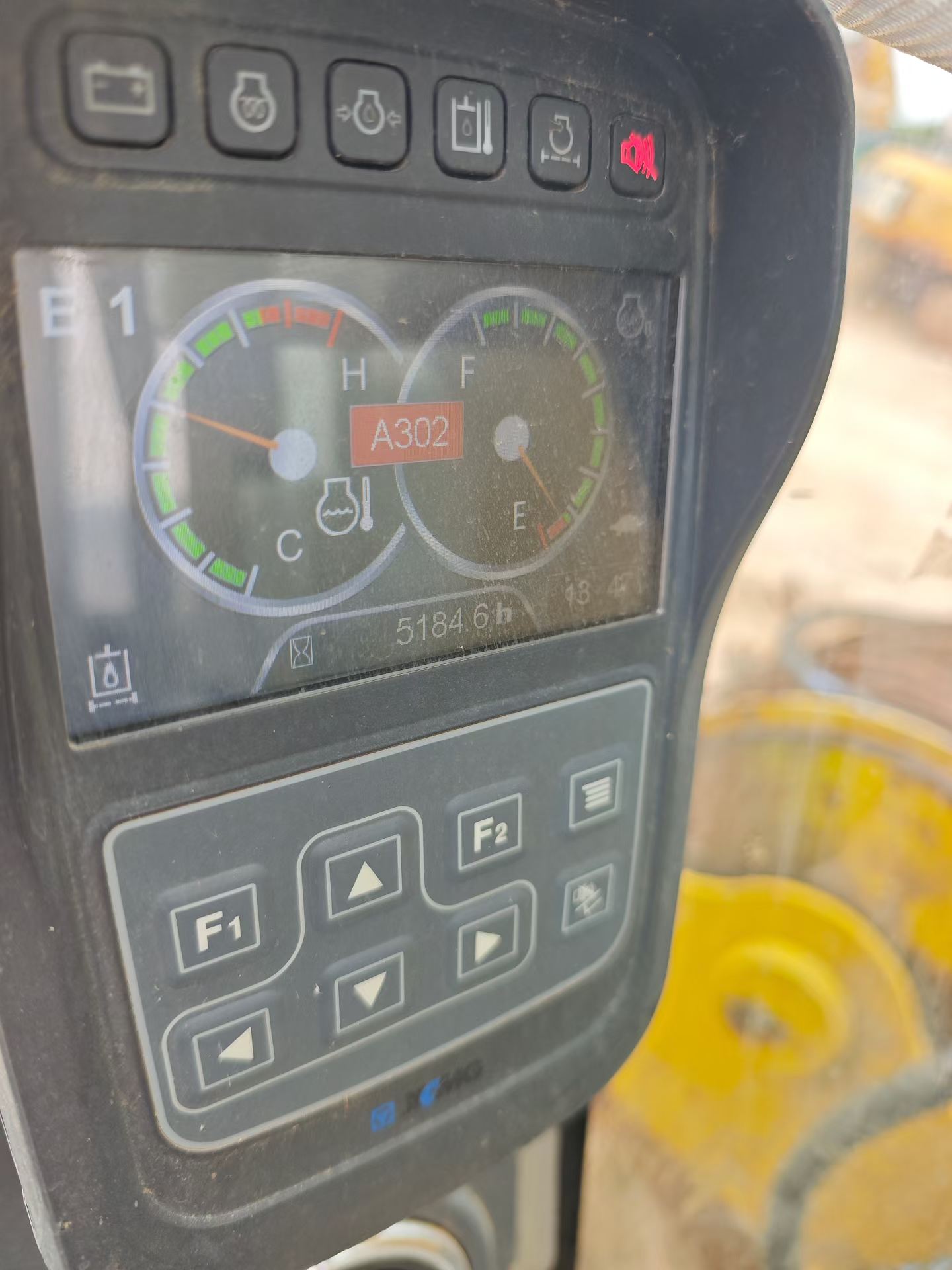

- Operational Hours: 5100
- Features: Extended Boom, Gripper, Quick Coupler, Winch
| Specifications | Value |
|---|---|
| No. | 1120240 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3720 |
| Rod length (mm) | 1622 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-TE3B |
| Rated power (kw/rpm) | 42.4/2000 |
| Maximum torque (N.m) | 225.8 |
| Displacement (L) | 2.615 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57 |
| Rod digging force (kN) | 38 |
| Maximum tractive force (kN) | 68.3 |
| Travel speed (km/h) | 5.4/2.9 |
| Maximum flow of main pump (l/min) | 160 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 18.6 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 76 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6150 |
| Total transport width (mm) | 2230 |
| Total transport height (mm) | 2685 |
| Counterweight ground clearance (mm) | 815 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 1818 |
| Back end turning radius (mm) | 1800 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6260 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7085 |
| Maximum unloading height (mm) | 5160 |
| Maximum vertical digging depth (mm) | 2920 |
